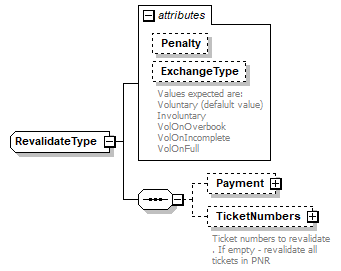

complexType RevalidateType

diagram
children	Payment TicketNumbers
used by	element  SIG_AirBookRQ/Revalidate
attributes	Name   Type   Use   Default   Fixed   Annotation Penalty   s:decimal            ExchangeType   RefundExchangeType            documentation Values expected are: Voluntary (defalult value) Involuntary VolOnOverbook VolOnIncomplete VolOnFull
source	<s:complexType name="RevalidateType">   <s:sequence>     <s:element name="Payment" type="PaymentType" minOccurs="0"/>     <s:element name="TicketNumbers" minOccurs="0">       <s:annotation>         <s:documentation>Ticket numbers to revalidate . If empty - revalidate all tickets in PNR</s:documentation>       </s:annotation>       <s:complexType>         <s:sequence>           <s:element name="TicketNumber" maxOccurs="unbounded">             <s:simpleType>               <s:restriction base="s:string">                 <s:minLength value="10"/>                 <s:whiteSpace value="collapse"/>               </s:restriction>             </s:simpleType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="Penalty" type="s:decimal"/>   <s:attribute name="ExchangeType" type="RefundExchangeType">     <s:annotation>       <s:documentation>Values expected are: Voluntary (defalult value) Involuntary VolOnOverbook VolOnIncomplete VolOnFull</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute RevalidateType/@Penalty

type	s:decimal
source	<s:attribute name="Penalty" type="s:decimal"/>

attribute RevalidateType/@ExchangeType

type	RefundExchangeType
facets	Kind  Value  Annotation enumeration  Voluntary enumeration  Involuntary enumeration  ExchgViaRefund enumeration  InvolIATA enumeration  NameChange enumeration  VolOnIncomplete enumeration  VolOnOverbook enumeration  VolOnFull
annotation	documentation Values expected are: Voluntary (defalult value) Involuntary VolOnOverbook VolOnIncomplete VolOnFull
source	<s:attribute name="ExchangeType" type="RefundExchangeType">   <s:annotation>     <s:documentation>Values expected are: Voluntary (defalult value) Involuntary VolOnOverbook VolOnIncomplete VolOnFull</s:documentation>   </s:annotation> </s:attribute>

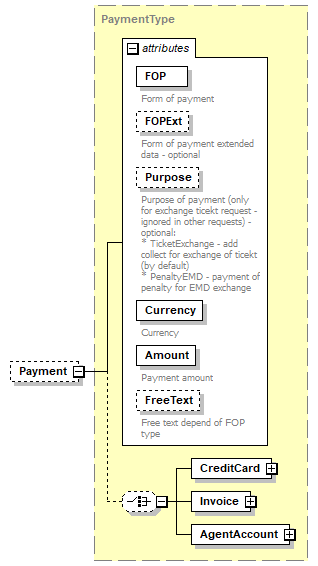

element RevalidateType/Payment

diagram
type	PaymentType
properties	minOcc  0 maxOcc  1 content  complex
children	CreditCard Invoice AgentAccount
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPType   required         documentation Form of payment FOPExt   s:string            documentation Form of payment extended data - optional Purpose   derived by: s:string            documentation Purpose of payment (only for exchange ticekt request - ignored in other requests) - optional: * TicketExchange - add collect for exchange of ticekt (by default) * PenaltyEMD - payment of penalty for EMD exchange Currency   s:string   required         documentation Currency Amount   s:decimal   required         documentation Payment amount FreeText   s:string            documentation Free text depend of FOP type
source	<s:element name="Payment" type="PaymentType" minOccurs="0"/>

element RevalidateType/TicketNumbers

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	TicketNumber
annotation	documentation Ticket numbers to revalidate . If empty - revalidate all tickets in PNR
source	<s:element name="TicketNumbers" minOccurs="0">   <s:annotation>     <s:documentation>Ticket numbers to revalidate . If empty - revalidate all tickets in PNR</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="TicketNumber" maxOccurs="unbounded">         <s:simpleType>           <s:restriction base="s:string">             <s:minLength value="10"/>             <s:whiteSpace value="collapse"/>           </s:restriction>         </s:simpleType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element RevalidateType/TicketNumbers/TicketNumber

diagram
type	restriction of s:string
properties	minOcc  1 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation minLength  10 whiteSpace  collapse
source	<s:element name="TicketNumber" maxOccurs="unbounded">   <s:simpleType>     <s:restriction base="s:string">       <s:minLength value="10"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:element>
