complexType PaymentType

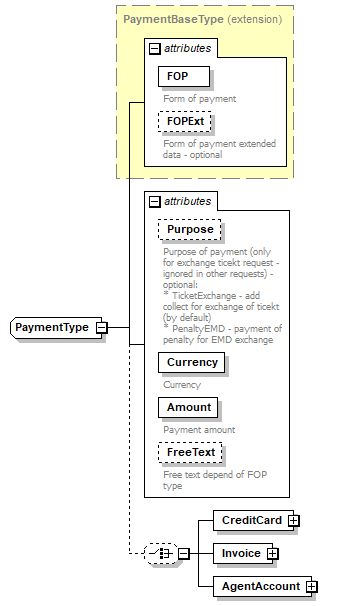

diagram
type	extension of PaymentBaseType
properties	base  PaymentBaseType
children	CreditCard Invoice AgentAccount
used by	elements  SIG_AirTicketRS/TicketInfo/Ticket/RefundData/FOPData/FOPItem TicketActionInfo/RefundData/FOPData/FOPItem SIG_AirBookRQ/Reissue/Payment IssueType/Payment PaymentsType/Payment RevalidateType/Payment TicketActionInfo/RefundData/Price/PenaltyFOP
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPType   required         documentation Form of payment FOPExt   s:string            documentation Form of payment extended data - optional Purpose   derived by: s:string            documentation Purpose of payment (only for exchange ticekt request - ignored in other requests) - optional: * TicketExchange - add collect for exchange of ticekt (by default) * PenaltyEMD - payment of penalty for EMD exchange Currency   s:string   required         documentation Currency Amount   s:decimal   required         documentation Payment amount FreeText   s:string            documentation Free text depend of FOP type
source	<s:complexType name="PaymentType">   <s:complexContent>     <s:extension base="PaymentBaseType">       <s:choice minOccurs="0">         <s:element name="CreditCard" type="CreditCardType"/>         <s:element name="Invoice" type="InvoiceType"/>         <s:element name="AgentAccount" type="AgentAccountType"/>       </s:choice>       <s:attribute name="Purpose">         <s:annotation>           <s:documentation>Purpose of payment (only for exchange ticekt request - ignored in other requests) - optional: * TicketExchange - add collect for exchange of ticekt (by default) * PenaltyEMD - payment of penalty for EMD exchange</s:documentation>         </s:annotation>         <s:simpleType>           <s:restriction base="s:string">             <s:enumeration value="TicketExchange"/>             <s:enumeration value="PenaltyEMD"/>           </s:restriction>         </s:simpleType>       </s:attribute>       <s:attribute name="Currency" type="s:string" use="required">         <s:annotation>           <s:documentation>Currency</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="Amount" type="s:decimal" use="required">         <s:annotation>           <s:documentation>Payment amount</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="FreeText" type="s:string">         <s:annotation>           <s:documentation>Free text depend of FOP type</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute PaymentType/@Purpose

type	restriction of s:string
facets	Kind  Value  Annotation enumeration  TicketExchange enumeration  PenaltyEMD
annotation	documentation Purpose of payment (only for exchange ticekt request - ignored in other requests) - optional: * TicketExchange - add collect for exchange of ticekt (by default) * PenaltyEMD - payment of penalty for EMD exchange
source	<s:attribute name="Purpose">   <s:annotation>     <s:documentation>Purpose of payment (only for exchange ticekt request - ignored in other requests) - optional: * TicketExchange - add collect for exchange of ticekt (by default) * PenaltyEMD - payment of penalty for EMD exchange</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="TicketExchange"/>       <s:enumeration value="PenaltyEMD"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute PaymentType/@Currency

type	s:string
properties	use  required
annotation	documentation Currency
source	<s:attribute name="Currency" type="s:string" use="required">   <s:annotation>     <s:documentation>Currency</s:documentation>   </s:annotation> </s:attribute>

attribute PaymentType/@Amount

type	s:decimal
properties	use  required
annotation	documentation Payment amount
source	<s:attribute name="Amount" type="s:decimal" use="required">   <s:annotation>     <s:documentation>Payment amount</s:documentation>   </s:annotation> </s:attribute>

attribute PaymentType/@FreeText

type	s:string
annotation	documentation Free text depend of FOP type
source	<s:attribute name="FreeText" type="s:string">   <s:annotation>     <s:documentation>Free text depend of FOP type</s:documentation>   </s:annotation> </s:attribute>

element PaymentType/CreditCard

diagram
type	CreditCardType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation PaymentSystem   s:string   required         AccountNumber   s:string   required         ExpirationDate   s:gYearMonth            ApprovalCode   s:string            CardHolder   s:string
source	<s:element name="CreditCard" type="CreditCardType"/>

element PaymentType/Invoice

diagram
type	InvoiceType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ClientID   s:string            InvoiceNumber   s:string            InvoiceNumber2   s:string            PaymentDate   s:date            AgreementNumber   s:string
source	<s:element name="Invoice" type="InvoiceType"/>

element PaymentType/AgentAccount

diagram
type	AgentAccountType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ClientID   s:string            AccountNumber   s:string            PaymentDate   s:date
source	<s:element name="AgentAccount" type="AgentAccountType"/>
