complexType FlightSegmentType

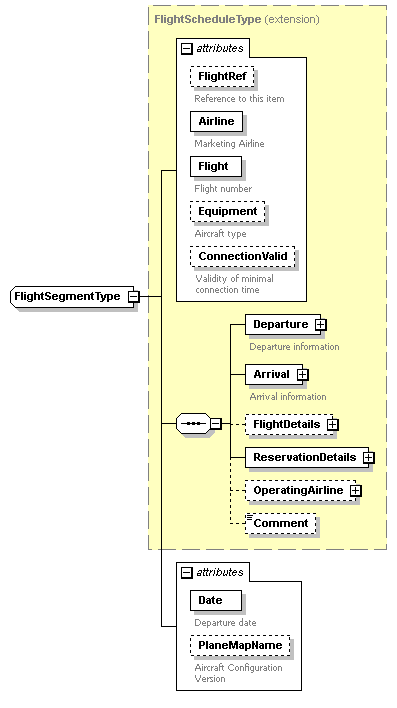

diagram
type	extension of FlightScheduleType
properties	base  FlightScheduleType
children	Departure Arrival FlightDetails ReservationDetails OperatingAirline Comment
used by	elements  SIG_AirAvailRS/ItineraryOptions/ItineraryOption/FlightSegments/FlightSegment AirItineraryType/FlightSegment ShopOptionType/ItineraryOptions/ItineraryOption/FlightSegment complexType  FlightSeatMapType
attributes	Name   Type   Use   Default   Fixed   Annotation FlightRef   s:string   optional         documentation Reference to this item Airline   derived by: s:string   required         documentation Marketing Airline Flight   s:string   required         documentation Flight number Equipment   s:string            documentation Aircraft type ConnectionValid   derived by: s:string            documentation Validity of minimal connection time Date   s:date   required         documentation Departure date PlaneMapName   s:string   optional         documentation Aircraft Configuration Version
source	<s:complexType name="FlightSegmentType">   <s:complexContent>     <s:extension base="FlightScheduleType">       <s:attribute name="Date" type="s:date" use="required">         <s:annotation>           <s:documentation>Departure date</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="PlaneMapName" type="s:string" use="optional">         <s:annotation>           <s:documentation>Aircraft Configuration Version</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute FlightSegmentType/@Date

type	s:date
properties	use  required
annotation	documentation Departure date
source	<s:attribute name="Date" type="s:date" use="required">   <s:annotation>     <s:documentation>Departure date</s:documentation>   </s:annotation> </s:attribute>

attribute FlightSegmentType/@PlaneMapName

type	s:string
properties	use  optional
annotation	documentation Aircraft Configuration Version
source	<s:attribute name="PlaneMapName" type="s:string" use="optional">   <s:annotation>     <s:documentation>Aircraft Configuration Version</s:documentation>   </s:annotation> </s:attribute>
