element SIG_AirFareRulesRS

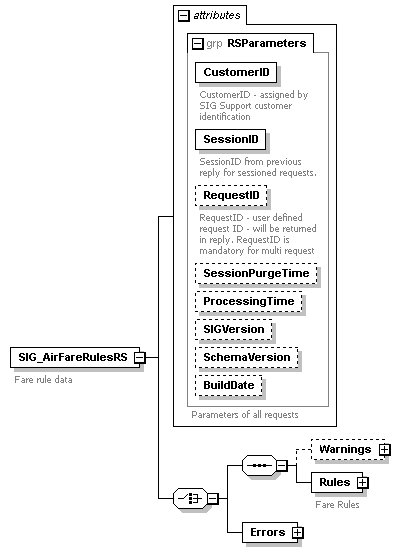

diagram
properties	content  complex
children	Warnings Rules Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Fare rule data
source	<s:element name="SIG_AirFareRulesRS">   <s:annotation>     <s:documentation>Fare rule data</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:element name="Rules" type="RulesRsType">           <s:annotation>             <s:documentation>Fare Rules</s:documentation>           </s:annotation>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_AirFareRulesRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_AirFareRulesRS/Rules

diagram
type	RulesRsType
properties	content  complex
children	Rule
annotation	documentation Fare Rules
source	<s:element name="Rules" type="RulesRsType">   <s:annotation>     <s:documentation>Fare Rules</s:documentation>   </s:annotation> </s:element>

element SIG_AirFareRulesRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
