complexType RulesRsType

diagram
children	Rule
used by	element  SIG_AirFareRulesRS/Rules
source	<s:complexType name="RulesRsType">   <s:sequence>     <s:element name="Rule" maxOccurs="unbounded">       <s:complexType>         <s:sequence>           <s:element name="RuleKey" type="s:string">             <s:annotation>               <s:documentation>Requested Rule Key</s:documentation>             </s:annotation>           </s:element>           <s:choice>             <s:element name="Categories">               <s:annotation>                 <s:documentation>Rule categories</s:documentation>               </s:annotation>               <s:complexType>                 <s:sequence>                   <s:element name="Category" maxOccurs="unbounded">                     <s:annotation>                       <s:documentation>Category number, title and data</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:simpleContent>                         <s:extension base="s:string">                           <s:attribute name="CategoryNumber" type="s:int" use="required"/>                           <s:attribute name="CategoryTitle" type="s:string" use="required"/>                         </s:extension>                       </s:simpleContent>                     </s:complexType>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>             <s:element name="Errors" type="ErrorsType"/>           </s:choice>         </s:sequence>       </s:complexType>     </s:element>   </s:sequence> </s:complexType>

element RulesRsType/Rule

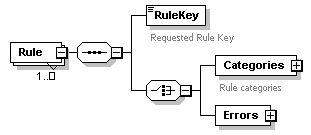

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	RuleKey Categories Errors
source	<s:element name="Rule" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="RuleKey" type="s:string">         <s:annotation>           <s:documentation>Requested Rule Key</s:documentation>         </s:annotation>       </s:element>       <s:choice>         <s:element name="Categories">           <s:annotation>             <s:documentation>Rule categories</s:documentation>           </s:annotation>           <s:complexType>             <s:sequence>               <s:element name="Category" maxOccurs="unbounded">                 <s:annotation>                   <s:documentation>Category number, title and data</s:documentation>                 </s:annotation>                 <s:complexType>                   <s:simpleContent>                     <s:extension base="s:string">                       <s:attribute name="CategoryNumber" type="s:int" use="required"/>                       <s:attribute name="CategoryTitle" type="s:string" use="required"/>                     </s:extension>                   </s:simpleContent>                 </s:complexType>               </s:element>             </s:sequence>           </s:complexType>         </s:element>         <s:element name="Errors" type="ErrorsType"/>       </s:choice>     </s:sequence>   </s:complexType> </s:element>

element RulesRsType/Rule/RuleKey

diagram
type	s:string
properties	content  simple
annotation	documentation Requested Rule Key
source	<s:element name="RuleKey" type="s:string">   <s:annotation>     <s:documentation>Requested Rule Key</s:documentation>   </s:annotation> </s:element>

element RulesRsType/Rule/Categories

diagram
properties	content  complex
children	Category
annotation	documentation Rule categories
source	<s:element name="Categories">   <s:annotation>     <s:documentation>Rule categories</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Category" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Category number, title and data</s:documentation>         </s:annotation>         <s:complexType>           <s:simpleContent>             <s:extension base="s:string">               <s:attribute name="CategoryNumber" type="s:int" use="required"/>               <s:attribute name="CategoryTitle" type="s:string" use="required"/>             </s:extension>           </s:simpleContent>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element RulesRsType/Rule/Categories/Category

diagram
type	extension of s:string
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CategoryNumber   s:int   required         CategoryTitle   s:string   required
annotation	documentation Category number, title and data
source	<s:element name="Category" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Category number, title and data</s:documentation>   </s:annotation>   <s:complexType>     <s:simpleContent>       <s:extension base="s:string">         <s:attribute name="CategoryNumber" type="s:int" use="required"/>         <s:attribute name="CategoryTitle" type="s:string" use="required"/>       </s:extension>     </s:simpleContent>   </s:complexType> </s:element>

attribute RulesRsType/Rule/Categories/Category/@CategoryNumber

type	s:int
properties	use  required
source	<s:attribute name="CategoryNumber" type="s:int" use="required"/>

attribute RulesRsType/Rule/Categories/Category/@CategoryTitle

type	s:string
properties	use  required
source	<s:attribute name="CategoryTitle" type="s:string" use="required"/>

element RulesRsType/Rule/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
