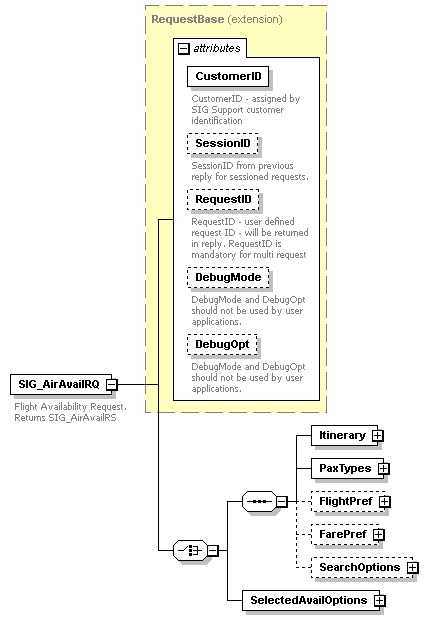

element SIG_AirAvailRQ

diagram
type	extension of RequestBase
properties	content  complex
children	Itinerary PaxTypes FlightPref FarePref SearchOptions SelectedAvailOptions
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
annotation	documentation Flight Availability Request. Returns SIG_AirAvailRS
source	<s:element name="SIG_AirAvailRQ">   <s:annotation>     <s:documentation>Flight Availability Request. Returns SIG_AirAvailRS</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:choice>           <s:sequence>             <s:element name="Itinerary" type="ShopItineraryType">               <s:unique name="testUniqueAvlODRef">                 <s:selector xpath="OriginDestination"/>                 <s:field xpath="ODRef"/>               </s:unique>             </s:element>             <s:element name="PaxTypes" type="ShopPaxType"/>             <s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>             <s:element name="FarePref" type="FarePrefType" minOccurs="0"/>             <s:element name="SearchOptions" minOccurs="0">               <s:complexType>                 <s:attribute name="ForwardDates" type="s:unsignedByte" default="0">                   <s:annotation>                     <s:documentation>Number of days to search forward specified dates: 0,1,2 ...</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="Mode" default="Fares">                   <s:annotation>                     <s:documentation>Search mode: Flights - only flight, Fares - flights with fares</s:documentation>                   </s:annotation>                   <s:simpleType>                     <s:restriction base="s:string">                       <s:enumeration value="Flights"/>                       <s:enumeration value="Fares"/>                     </s:restriction>                   </s:simpleType>                 </s:attribute>               </s:complexType>             </s:element>           </s:sequence>           <s:element name="SelectedAvailOptions">             <s:complexType>               <s:sequence>                 <s:element name="SelectedAvailOption" maxOccurs="16">                   <s:complexType>                     <s:attribute name="ItineraryRef" type="s:string" use="required"/>                     <s:attribute name="FareRef" type="s:nonNegativeInteger"/>                   </s:complexType>                 </s:element>               </s:sequence>             </s:complexType>           </s:element>         </s:choice>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

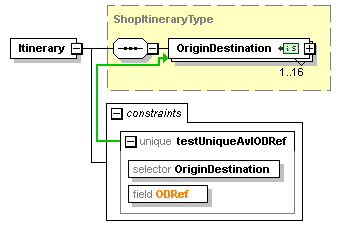

element SIG_AirAvailRQ/Itinerary

diagram
type	ShopItineraryType
properties	content  complex
children	OriginDestination
identity constraints	Name   Refer   Selector   Field(s)   Annotation unique   testUniqueAvlODRef      OriginDestination   ODRef
source	<s:element name="Itinerary" type="ShopItineraryType">   <s:unique name="testUniqueAvlODRef">     <s:selector xpath="OriginDestination"/>     <s:field xpath="ODRef"/>   </s:unique> </s:element>

element SIG_AirAvailRQ/PaxTypes

diagram
type	ShopPaxType
properties	content  complex
children	PaxType
source	<s:element name="PaxTypes" type="ShopPaxType"/>

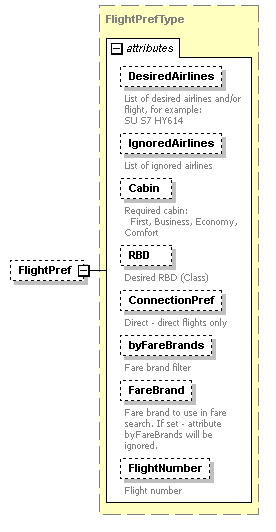

element SIG_AirAvailRQ/FlightPref

diagram
type	FlightPrefType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation DesiredAirlines   strlist            documentation List of desired airlines and/or flight, for example: SU S7 HY614 IgnoredAirlines   strlist            documentation List of ignored airlines Cabin   CabinType            documentation Required cabin:   First, Business, Economy, Comfort RBD   derived by: s:string            documentation Desired RBD (Class) ConnectionPref   derived by: s:string            documentation Direct - direct flights only byFareBrands   derived by: s:string            documentation Fare brand filter FareBrand   s:string            documentation Fare brand to use in fare search. If set - attribute byFareBrands will be ignored. FlightNumber   s:string            documentation Flight number
source	<s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>

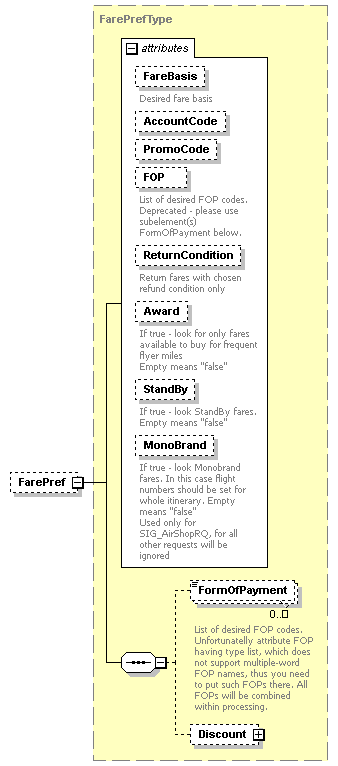

element SIG_AirAvailRQ/FarePref

diagram
type	FarePrefType
properties	minOcc  0 maxOcc  1 content  complex
children	FormOfPayment Discount
attributes	Name   Type   Use   Default   Fixed   Annotation FareBasis   s:string            documentation Desired fare basis AccountCode   s:string            PromoCode   s:string            FOP   FOPList            documentation List of desired FOP codes. Deprecated - please use subelement(s) FormOfPayment below. ReturnCondition   derived by: s:string            documentation Return fares with chosen refund condition only Award   s:boolean            documentation If true - look for only fares available to buy for frequent flyer miles Empty means "false"        StandBy   s:boolean            documentation If true - look StandBy fares. Empty means "false"        MonoBrand   s:boolean            documentation If true - look Monobrand fares. In this case flight numbers should be set for whole itinerary. Empty means "false" Used only for SIG_AirShopRQ, for all other requests will be ignored
source	<s:element name="FarePref" type="FarePrefType" minOccurs="0"/>

element SIG_AirAvailRQ/SearchOptions

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ForwardDates   s:unsignedByte      0      documentation Number of days to search forward specified dates: 0,1,2 ... Mode   derived by: s:string      Fares      documentation Search mode: Flights - only flight, Fares - flights with fares
source	<s:element name="SearchOptions" minOccurs="0">   <s:complexType>     <s:attribute name="ForwardDates" type="s:unsignedByte" default="0">       <s:annotation>         <s:documentation>Number of days to search forward specified dates: 0,1,2 ...</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Mode" default="Fares">       <s:annotation>         <s:documentation>Search mode: Flights - only flight, Fares - flights with fares</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:enumeration value="Flights"/>           <s:enumeration value="Fares"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirAvailRQ/SearchOptions/@ForwardDates

type	s:unsignedByte
properties	default  0
annotation	documentation Number of days to search forward specified dates: 0,1,2 ...
source	<s:attribute name="ForwardDates" type="s:unsignedByte" default="0">   <s:annotation>     <s:documentation>Number of days to search forward specified dates: 0,1,2 ...</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirAvailRQ/SearchOptions/@Mode

type	restriction of s:string
properties	default  Fares
facets	Kind  Value  Annotation enumeration  Flights enumeration  Fares
annotation	documentation Search mode: Flights - only flight, Fares - flights with fares
source	<s:attribute name="Mode" default="Fares">   <s:annotation>     <s:documentation>Search mode: Flights - only flight, Fares - flights with fares</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Flights"/>       <s:enumeration value="Fares"/>     </s:restriction>   </s:simpleType> </s:attribute>

element SIG_AirAvailRQ/SelectedAvailOptions

diagram
properties	content  complex
children	SelectedAvailOption
source	<s:element name="SelectedAvailOptions">   <s:complexType>     <s:sequence>       <s:element name="SelectedAvailOption" maxOccurs="16">         <s:complexType>           <s:attribute name="ItineraryRef" type="s:string" use="required"/>           <s:attribute name="FareRef" type="s:nonNegativeInteger"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_AirAvailRQ/SelectedAvailOptions/SelectedAvailOption

diagram
properties	minOcc  1 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ItineraryRef   s:string   required         FareRef   s:nonNegativeInteger
source	<s:element name="SelectedAvailOption" maxOccurs="16">   <s:complexType>     <s:attribute name="ItineraryRef" type="s:string" use="required"/>     <s:attribute name="FareRef" type="s:nonNegativeInteger"/>   </s:complexType> </s:element>

attribute SIG_AirAvailRQ/SelectedAvailOptions/SelectedAvailOption/@ItineraryRef

type	s:string
properties	use  required
source	<s:attribute name="ItineraryRef" type="s:string" use="required"/>

attribute SIG_AirAvailRQ/SelectedAvailOptions/SelectedAvailOption/@FareRef

type	s:nonNegativeInteger
source	<s:attribute name="FareRef" type="s:nonNegativeInteger"/>
