complexType FarePrefType

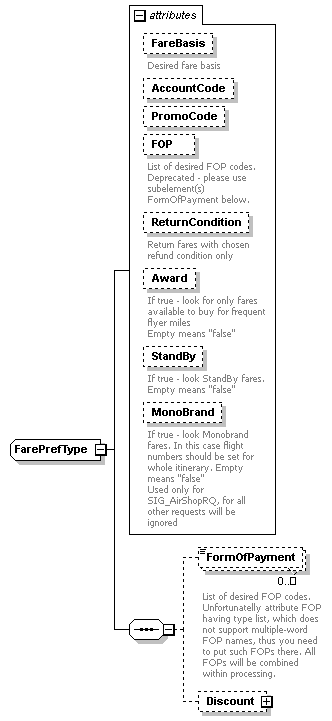

diagram
children	FormOfPayment Discount
used by	elements  SIG_AirShopRQ/FarePref SIG_AirAvailRQ/FarePref SIG_AirReShopRQ/FarePref
attributes	Name   Type   Use   Default   Fixed   Annotation FareBasis   s:string            documentation Desired fare basis AccountCode   s:string            PromoCode   s:string            FOP   FOPList            documentation List of desired FOP codes. Deprecated - please use subelement(s) FormOfPayment below. ReturnCondition   derived by: s:string            documentation Return fares with chosen refund condition only Award   s:boolean            documentation If true - look for only fares available to buy for frequent flyer miles Empty means "false"        StandBy   s:boolean            documentation If true - look StandBy fares. Empty means "false"        MonoBrand   s:boolean            documentation If true - look Monobrand fares. In this case flight numbers should be set for whole itinerary. Empty means "false" Used only for SIG_AirShopRQ, for all other requests will be ignored
source	<s:complexType name="FarePrefType">   <s:sequence>     <s:element name="FormOfPayment" type="FOPType" minOccurs="0" maxOccurs="unbounded">       <s:annotation>         <s:documentation>List of desired FOP codes. Unfortunatelly attribute FOP having type list, which does not support multiple-word FOP names, thus you need to put such FOPs there. All FOPs will be combined within processing.</s:documentation>       </s:annotation>     </s:element>     <s:element name="Discount" minOccurs="0">       <s:complexType>         <s:attribute name="Amount" type="s:decimal" use="required">           <s:annotation>             <s:documentation>Discount amount - percentage</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="Designator" type="s:string" use="required">           <s:annotation>             <s:documentation>Discount fare designator to be added to fare code</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="FareBasis" type="s:string">     <s:annotation>       <s:documentation>Desired fare basis</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="AccountCode" type="s:string"/>   <s:attribute name="PromoCode" type="s:string"/>   <s:attribute name="FOP" type="FOPList">     <s:annotation>       <s:documentation>List of desired FOP codes. Deprecated - please use subelement(s) FormOfPayment below.</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="ReturnCondition">     <s:annotation>       <s:documentation>Return fares with chosen refund condition only</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:enumeration value="Refundable with penalty"/>         <s:enumeration value="Full refund only"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="Award" type="s:boolean">     <s:annotation>       <s:documentation>If true - look for only fares available to buy for frequent flyer miles Empty means "false"        </s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="StandBy" type="s:boolean">     <s:annotation>       <s:documentation>If true - look StandBy fares. Empty means "false"        </s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="MonoBrand" type="s:boolean">     <s:annotation>       <s:documentation>If true - look Monobrand fares. In this case flight numbers should be set for whole itinerary. Empty means "false" Used only for SIG_AirShopRQ, for all other requests will be ignored</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute FarePrefType/@FareBasis

type	s:string
annotation	documentation Desired fare basis
source	<s:attribute name="FareBasis" type="s:string">   <s:annotation>     <s:documentation>Desired fare basis</s:documentation>   </s:annotation> </s:attribute>

attribute FarePrefType/@AccountCode

type	s:string
source	<s:attribute name="AccountCode" type="s:string"/>

attribute FarePrefType/@PromoCode

type	s:string
source	<s:attribute name="PromoCode" type="s:string"/>

attribute FarePrefType/@FOP

type	FOPList
annotation	documentation List of desired FOP codes. Deprecated - please use subelement(s) FormOfPayment below.
source	<s:attribute name="FOP" type="FOPList">   <s:annotation>     <s:documentation>List of desired FOP codes. Deprecated - please use subelement(s) FormOfPayment below.</s:documentation>   </s:annotation> </s:attribute>

attribute FarePrefType/@ReturnCondition

type	restriction of s:string
facets	Kind  Value  Annotation enumeration  Refundable with penalty enumeration  Full refund only
annotation	documentation Return fares with chosen refund condition only
source	<s:attribute name="ReturnCondition">   <s:annotation>     <s:documentation>Return fares with chosen refund condition only</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Refundable with penalty"/>       <s:enumeration value="Full refund only"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FarePrefType/@Award

type	s:boolean
annotation	documentation If true - look for only fares available to buy for frequent flyer miles Empty means "false"
source	<s:attribute name="Award" type="s:boolean">   <s:annotation>     <s:documentation>If true - look for only fares available to buy for frequent flyer miles Empty means "false"        </s:documentation>   </s:annotation> </s:attribute>

attribute FarePrefType/@StandBy

type	s:boolean
annotation	documentation If true - look StandBy fares. Empty means "false"
source	<s:attribute name="StandBy" type="s:boolean">   <s:annotation>     <s:documentation>If true - look StandBy fares. Empty means "false"        </s:documentation>   </s:annotation> </s:attribute>

attribute FarePrefType/@MonoBrand

type	s:boolean
annotation	documentation If true - look Monobrand fares. In this case flight numbers should be set for whole itinerary. Empty means "false" Used only for SIG_AirShopRQ, for all other requests will be ignored
source	<s:attribute name="MonoBrand" type="s:boolean">   <s:annotation>     <s:documentation>If true - look Monobrand fares. In this case flight numbers should be set for whole itinerary. Empty means "false" Used only for SIG_AirShopRQ, for all other requests will be ignored</s:documentation>   </s:annotation> </s:attribute>

element FarePrefType/FormOfPayment

diagram
type	FOPType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation enumeration  Agent account enumeration  Bonus account enumeration  Cash enumeration  Credit enumeration  Credit card enumeration  EMoney enumeration  Internet card enumeration  Invoice enumeration  Payment card enumeration  Payment system enumeration  Personal account enumeration  Prepaid enumeration  Voucher or certificate enumeration  Earned miles UT
annotation	documentation List of desired FOP codes. Unfortunatelly attribute FOP having type list, which does not support multiple-word FOP names, thus you need to put such FOPs there. All FOPs will be combined within processing.
source	<s:element name="FormOfPayment" type="FOPType" minOccurs="0" maxOccurs="unbounded">   <s:annotation>     <s:documentation>List of desired FOP codes. Unfortunatelly attribute FOP having type list, which does not support multiple-word FOP names, thus you need to put such FOPs there. All FOPs will be combined within processing.</s:documentation>   </s:annotation> </s:element>

element FarePrefType/Discount

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Amount   s:decimal   required         documentation Discount amount - percentage Designator   s:string   required         documentation Discount fare designator to be added to fare code
source	<s:element name="Discount" minOccurs="0">   <s:complexType>     <s:attribute name="Amount" type="s:decimal" use="required">       <s:annotation>         <s:documentation>Discount amount - percentage</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Designator" type="s:string" use="required">       <s:annotation>         <s:documentation>Discount fare designator to be added to fare code</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FarePrefType/Discount/@Amount

type	s:decimal
properties	use  required
annotation	documentation Discount amount - percentage
source	<s:attribute name="Amount" type="s:decimal" use="required">   <s:annotation>     <s:documentation>Discount amount - percentage</s:documentation>   </s:annotation> </s:attribute>

attribute FarePrefType/Discount/@Designator

type	s:string
properties	use  required
annotation	documentation Discount fare designator to be added to fare code
source	<s:attribute name="Designator" type="s:string" use="required">   <s:annotation>     <s:documentation>Discount fare designator to be added to fare code</s:documentation>   </s:annotation> </s:attribute>
