complexType PNRDataType

diagram
children	GeneralInfo Passengers Contacts Remarks Comments OtherServices
used by	elements  SIG_RailBookRQ/Add SIG_AirBookRQ/Modify complexType  PNRDataTypeExt
source	<s:complexType name="PNRDataType">   <s:sequence>     <s:element name="GeneralInfo" type="GeneralInfoRQType" minOccurs="0"/>     <s:element name="Passengers" type="PassengersType" minOccurs="0"/>     <s:element name="Contacts" type="ContactsType" minOccurs="0"/>     <s:element name="Remarks" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="Comments" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="Comment" maxOccurs="unbounded">             <s:complexType>               <s:simpleContent>                 <s:restriction base="CommentType">                   <s:minLength value="1"/>                 </s:restriction>               </s:simpleContent>             </s:complexType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="OtherServices" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="OSI" type="OSIType" maxOccurs="unbounded"/>         </s:sequence>       </s:complexType>     </s:element>   </s:sequence> </s:complexType>

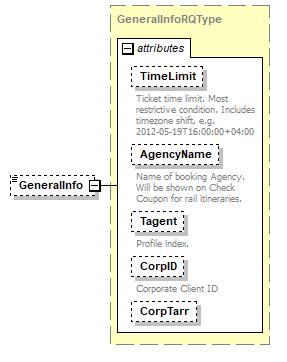

element PNRDataType/GeneralInfo

diagram
type	GeneralInfoRQType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TimeLimit   s:dateTime   optional         documentation Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00 AgencyName   s:string            documentation Name of booking Agency. Will be shown on Check Coupon for rail itineraries. Tagent   s:string            documentation Profile index. CorpID   s:string            documentation Corporate Client ID CorpTarr   s:string
source	<s:element name="GeneralInfo" type="GeneralInfoRQType" minOccurs="0"/>

element PNRDataType/Passengers

diagram
type	PassengersType
properties	minOcc  0 maxOcc  1 content  complex
children	Passenger
source	<s:element name="Passengers" type="PassengersType" minOccurs="0"/>

element PNRDataType/Contacts

diagram
type	ContactsType
properties	minOcc  0 maxOcc  1 content  complex
children	Contact
source	<s:element name="Contacts" type="ContactsType" minOccurs="0"/>

element PNRDataType/Remarks

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Remark
source	<s:element name="Remarks" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

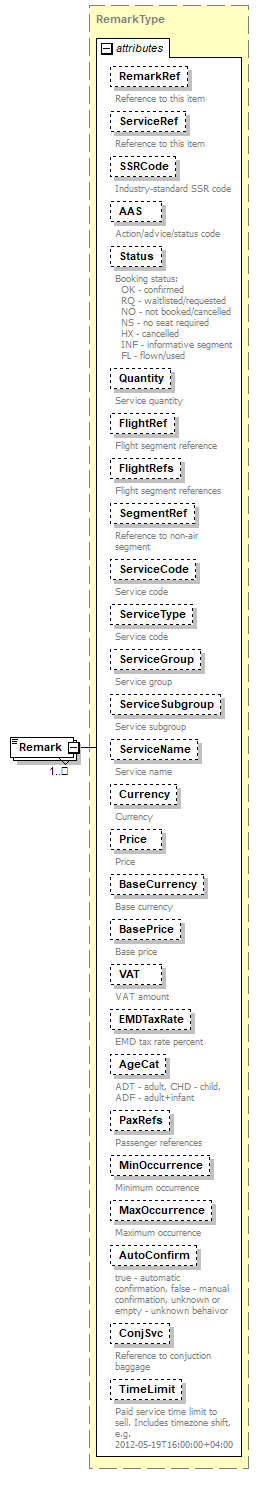

element PNRDataType/Remarks/Remark

diagram
type	RemarkType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation RemarkRef   derived by: s:string            documentation Reference to this item ServiceRef   derived by: s:string            documentation Reference to this item SSRCode   derived by: s:string            documentation Industry-standard SSR code AAS   derived by: s:string            documentation Action/advice/status code Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   INF - informative segment   FL - flown/used Quantity   s:int            documentation Service quantity FlightRef   s:string            documentation Flight segment reference FlightRefs   strlist            documentation Flight segment references SegmentRef   s:string            documentation Reference to non-air segment ServiceCode   s:string            documentation Service code ServiceType   s:string            documentation Service code ServiceGroup   s:string            documentation Service group ServiceSubgroup   s:string            documentation Service subgroup ServiceName   s:string            documentation Service name Currency   s:string            documentation Currency Price   derived by: s:decimal            documentation Price BaseCurrency   s:string            documentation Base currency BasePrice   derived by: s:decimal            documentation Base price VAT   derived by: s:decimal            documentation VAT amount EMDTaxRate   s:decimal            documentation EMD tax rate percent AgeCat   strlist            documentation ADT - adult, CHD - child, ADF - adult+infant PaxRefs   strlist            documentation Passenger references MinOccurrence   s:decimal            documentation Minimum occurrence MaxOccurrence   s:decimal            documentation Maximum occurrence AutoConfirm   s:string            documentation true - automatic confirmation, false - manual confirmation, unknown or empty - unknown behaivor ConjSvc   s:string            documentation Reference to conjuction baggage TimeLimit   s:dateTime   optional         documentation Paid service time limit to sell. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00
source	<s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>

element PNRDataType/Comments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Comment
source	<s:element name="Comments" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Comment" maxOccurs="unbounded">         <s:complexType>           <s:simpleContent>             <s:restriction base="CommentType">               <s:minLength value="1"/>             </s:restriction>           </s:simpleContent>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element PNRDataType/Comments/Comment

diagram
type	restriction of CommentType
properties	minOcc  1 maxOcc  unbounded content  complex
facets	Kind  Value  Annotation minLength  1
attributes	Name   Type   Use   Default   Fixed   Annotation CommentRef   s:string            BookingRef   s:string   optional         documentation Booking reference from shop reply - if present in multi PNR mode - the comment will be created only in referenced PNR. Ignored for single PNR mode. Not shown in reply - in reply will be set attribute RecordLocator. RecordLocator   s:string   optional         documentation Used only in SIG replies for multiPNR comments - shows locator of PNR, which the comment belongs to. Ignored for requests
source	<s:element name="Comment" maxOccurs="unbounded">   <s:complexType>     <s:simpleContent>       <s:restriction base="CommentType">         <s:minLength value="1"/>       </s:restriction>     </s:simpleContent>   </s:complexType> </s:element>

element PNRDataType/OtherServices

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	OSI
source	<s:element name="OtherServices" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="OSI" type="OSIType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

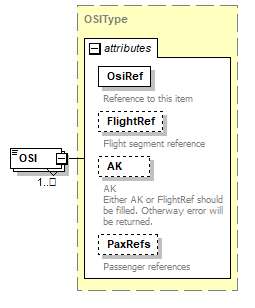

element PNRDataType/OtherServices/OSI

diagram
type	OSIType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation OsiRef   derived by: s:string   required         documentation Reference to this item FlightRef   s:string            documentation Flight segment reference AK   s:string            documentation AK Either AK or FlightRef should be filled. Otherway error will be returned. PaxRefs   strlist            documentation Passenger references
source	<s:element name="OSI" type="OSIType" maxOccurs="unbounded"/>
