complexType PriceItineraryType

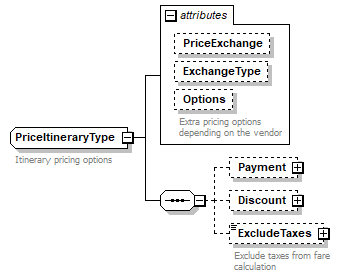

diagram
children	Payment Discount ExcludeTaxes
used by	element  SIG_AirBookRQ/PriceItinerary
attributes	Name   Type   Use   Default   Fixed   Annotation PriceExchange   s:boolean   optional         ExchangeType   RefundExchangeType            Options   s:string            documentation Extra pricing options depending on the vendor
annotation	documentation Itinerary pricing options
source	<s:complexType name="PriceItineraryType">   <s:annotation>     <s:documentation>Itinerary pricing options</s:documentation>   </s:annotation>   <s:sequence>     <s:element name="Payment" type="PaymentBaseType" minOccurs="0"/>     <s:element name="Discount" type="DiscountType" minOccurs="0"/>     <s:element name="ExcludeTaxes" type="ExcludeTaxesType" minOccurs="0">       <s:annotation>         <s:documentation>Exclude taxes from fare calculation</s:documentation>       </s:annotation>     </s:element>   </s:sequence>   <s:attribute name="PriceExchange" type="s:boolean" use="optional"/>   <s:attribute name="ExchangeType" type="RefundExchangeType"/>   <s:attribute name="Options" type="s:string">     <s:annotation>       <s:documentation>Extra pricing options depending on the vendor</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute PriceItineraryType/@PriceExchange

type	s:boolean
properties	use  optional
source	<s:attribute name="PriceExchange" type="s:boolean" use="optional"/>

attribute PriceItineraryType/@ExchangeType

type	RefundExchangeType
facets	Kind  Value  Annotation enumeration  Voluntary enumeration  Involuntary enumeration  ExchgViaRefund enumeration  InvolIATA enumeration  NameChange enumeration  VolOnIncomplete enumeration  VolOnOverbook
source	<s:attribute name="ExchangeType" type="RefundExchangeType"/>

attribute PriceItineraryType/@Options

type	s:string
annotation	documentation Extra pricing options depending on the vendor
source	<s:attribute name="Options" type="s:string">   <s:annotation>     <s:documentation>Extra pricing options depending on the vendor</s:documentation>   </s:annotation> </s:attribute>

element PriceItineraryType/Payment

diagram
type	PaymentBaseType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPType   required         documentation Form of payment FOPExt   s:string            documentation Form of payment extended data - optional
source	<s:element name="Payment" type="PaymentBaseType" minOccurs="0"/>

element PriceItineraryType/Discount

diagram
type	DiscountType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Name   s:string   optional         documentation Discount name Amount   derived by: s:integer   optional         documentation Discount amount AgreementNumber   s:string            documentation Agreement number Designator   s:string            documentation Discount fare designator to be added to fare code
source	<s:element name="Discount" type="DiscountType" minOccurs="0"/>

element PriceItineraryType/ExcludeTaxes

diagram
type	ExcludeTaxesType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Exclude   derived by: s:string   required         documentation All - exclude all taxes; List - exclude listed taxes; Ignore - ignore TST tax option - for exchange only.
annotation	documentation Exclude taxes from fare calculation
source	<s:element name="ExcludeTaxes" type="ExcludeTaxesType" minOccurs="0">   <s:annotation>     <s:documentation>Exclude taxes from fare calculation</s:documentation>   </s:annotation> </s:element>
