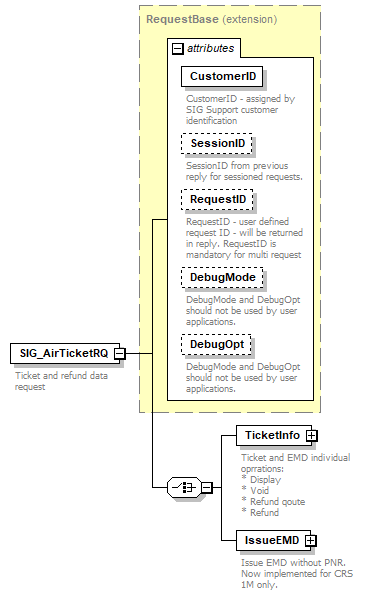

element SIG_AirTicketRQ

diagram
type	extension of RequestBase
properties	content  complex
children	TicketInfo IssueEMD
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
annotation	documentation Ticket and refund data request
source	<s:element name="SIG_AirTicketRQ">   <s:annotation>     <s:documentation>Ticket and refund data request</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:choice>           <s:element name="TicketInfo">             <s:annotation>               <s:documentation>Ticket and EMD individual oprrations: * Display * Void * Refund qoute * Refund</s:documentation>             </s:annotation>             <s:complexType>               <s:sequence>                 <s:element name="Ticket" type="TicketActionInfo" maxOccurs="unbounded"/>               </s:sequence>             </s:complexType>           </s:element>           <s:element name="IssueEMD">             <s:annotation>               <s:documentation>Issue EMD without PNR. Now implemented for CRS 1M only.</s:documentation>             </s:annotation>             <s:complexType>               <s:sequence>                 <s:element name="Coupons">                   <s:complexType>                     <s:sequence>                       <s:element name="Coupon" maxOccurs="4">                         <s:complexType>                           <s:attribute name="Airline" use="required">                             <s:annotation>                               <s:documentation>Marketing Airline</s:documentation>                             </s:annotation>                             <s:simpleType>                               <s:restriction base="s:string">                                 <s:length value="2"/>                                 <s:whiteSpace value="collapse"/>                               </s:restriction>                             </s:simpleType>                           </s:attribute>                           <s:attribute name="ServiceCode" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Service code</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="ServiceName" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Service name</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="Currency" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Currency</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="CouponPrice" use="required">                             <s:annotation>                               <s:documentation>Price</s:documentation>                             </s:annotation>                             <s:simpleType>                               <s:restriction base="s:decimal">                                 <s:minInclusive value="0"/>                               </s:restriction>                             </s:simpleType>                           </s:attribute>                           <s:attribute name="PerUnitPrice" use="required">                             <s:annotation>                               <s:documentation>Per unit price in Currency</s:documentation>                             </s:annotation>                             <s:simpleType>                               <s:restriction base="s:decimal">                                 <s:minInclusive value="0"/>                               </s:restriction>                             </s:simpleType>                           </s:attribute>                           <s:attribute name="UnitCount" use="required">                             <s:annotation>                               <s:documentation>Service unit count</s:documentation>                             </s:annotation>                             <s:simpleType>                               <s:restriction base="s:short">                                 <s:minInclusive value="1"/>                               </s:restriction>                             </s:simpleType>                           </s:attribute>                           <s:attribute name="UnitType" use="required">                             <s:annotation>                               <s:documentation>Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage</s:documentation>                             </s:annotation>                             <s:simpleType>                               <s:restriction base="s:string">                                 <s:enumeration value="KG"/>                                 <s:enumeration value="LB"/>                                 <s:enumeration value="PC"/>                                 <s:enumeration value="ST"/>                               </s:restriction>                             </s:simpleType>                           </s:attribute>                         </s:complexType>                       </s:element>                     </s:sequence>                   </s:complexType>                 </s:element>                 <s:element name="Passenger" type="PassengerNameType"/>                 <s:element name="Payments" type="PaymentsType"/>                 <s:element name="Price" type="PriceType"/>               </s:sequence>               <s:attribute name="GDS" type="CRSType" use="required">                 <s:annotation>                   <s:documentation>Target GDS code</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="ValidatingAirline" type="s:string" use="optional">                 <s:annotation>                   <s:documentation>Validating carrier</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="Interface" type="s:string">                 <s:annotation>                   <s:documentation>GDS Interface name</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="Office">                 <s:annotation>                   <s:documentation>Target office to issue EMD</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:string">                     <s:minLength value="3"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>             </s:complexType>           </s:element>         </s:choice>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_AirTicketRQ/TicketInfo

diagram
properties	content  complex
children	Ticket
annotation	documentation Ticket and EMD individual oprrations: * Display * Void * Refund qoute * Refund
source	<s:element name="TicketInfo">   <s:annotation>     <s:documentation>Ticket and EMD individual oprrations: * Display * Void * Refund qoute * Refund</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Ticket" type="TicketActionInfo" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

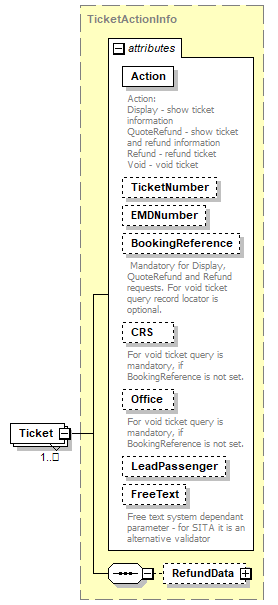

element SIG_AirTicketRQ/TicketInfo/Ticket

diagram
type	TicketActionInfo
properties	minOcc  1 maxOcc  unbounded content  complex
children	RefundData
attributes	Name   Type   Use   Default   Fixed   Annotation Action   TicketActionType   required         documentation Action: Display - show ticket information QuoteRefund - show ticket and refund information Refund - refund ticket Void - void ticket TicketNumber   s:string            EMDNumber   s:string            BookingReference   s:string            documentation Mandatory for Display, QuoteRefund and Refund requests. For void ticket query record locator is optional. CRS   CRSType            documentation For void ticket query is mandatory, if BookingReference is not set. Office   derived by: s:string            documentation For void ticket query is mandatory, if BookingReference is not set. LeadPassenger   s:string            FreeText   s:string            documentation Free text system dependant parameter - for SITA it is an alternative validator
source	<s:element name="Ticket" type="TicketActionInfo" maxOccurs="unbounded"/>

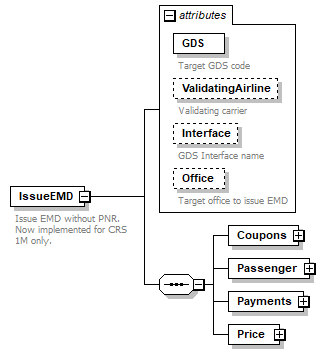

element SIG_AirTicketRQ/IssueEMD

diagram
properties	content  complex
children	Coupons Passenger Payments Price
attributes	Name   Type   Use   Default   Fixed   Annotation GDS   CRSType   required         documentation Target GDS code ValidatingAirline   s:string   optional         documentation Validating carrier Interface   s:string            documentation GDS Interface name Office   derived by: s:string            documentation Target office to issue EMD
annotation	documentation Issue EMD without PNR. Now implemented for CRS 1M only.
source	<s:element name="IssueEMD">   <s:annotation>     <s:documentation>Issue EMD without PNR. Now implemented for CRS 1M only.</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Coupons">         <s:complexType>           <s:sequence>             <s:element name="Coupon" maxOccurs="4">               <s:complexType>                 <s:attribute name="Airline" use="required">                   <s:annotation>                     <s:documentation>Marketing Airline</s:documentation>                   </s:annotation>                   <s:simpleType>                     <s:restriction base="s:string">                       <s:length value="2"/>                       <s:whiteSpace value="collapse"/>                     </s:restriction>                   </s:simpleType>                 </s:attribute>                 <s:attribute name="ServiceCode" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Service code</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="ServiceName" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Service name</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="Currency" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Currency</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="CouponPrice" use="required">                   <s:annotation>                     <s:documentation>Price</s:documentation>                   </s:annotation>                   <s:simpleType>                     <s:restriction base="s:decimal">                       <s:minInclusive value="0"/>                     </s:restriction>                   </s:simpleType>                 </s:attribute>                 <s:attribute name="PerUnitPrice" use="required">                   <s:annotation>                     <s:documentation>Per unit price in Currency</s:documentation>                   </s:annotation>                   <s:simpleType>                     <s:restriction base="s:decimal">                       <s:minInclusive value="0"/>                     </s:restriction>                   </s:simpleType>                 </s:attribute>                 <s:attribute name="UnitCount" use="required">                   <s:annotation>                     <s:documentation>Service unit count</s:documentation>                   </s:annotation>                   <s:simpleType>                     <s:restriction base="s:short">                       <s:minInclusive value="1"/>                     </s:restriction>                   </s:simpleType>                 </s:attribute>                 <s:attribute name="UnitType" use="required">                   <s:annotation>                     <s:documentation>Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage</s:documentation>                   </s:annotation>                   <s:simpleType>                     <s:restriction base="s:string">                       <s:enumeration value="KG"/>                       <s:enumeration value="LB"/>                       <s:enumeration value="PC"/>                       <s:enumeration value="ST"/>                     </s:restriction>                   </s:simpleType>                 </s:attribute>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="Passenger" type="PassengerNameType"/>       <s:element name="Payments" type="PaymentsType"/>       <s:element name="Price" type="PriceType"/>     </s:sequence>     <s:attribute name="GDS" type="CRSType" use="required">       <s:annotation>         <s:documentation>Target GDS code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ValidatingAirline" type="s:string" use="optional">       <s:annotation>         <s:documentation>Validating carrier</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Interface" type="s:string">       <s:annotation>         <s:documentation>GDS Interface name</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Office">       <s:annotation>         <s:documentation>Target office to issue EMD</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:minLength value="3"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirTicketRQ/IssueEMD/@GDS

type	CRSType
properties	use  required
facets	Kind  Value  Annotation enumeration  1A documentation Amadeus enumeration  1G documentation Galileo enumeration  1H documentation Sirena2000 enumeration  1M documentation TAIS CRS enumeration  1N enumeration  1S documentation Sabre enumeration  S7 documentation SITA S7 enumeration  DP documentation Navitaire for DP enumeration  1Б documentation Charter gate enumeration  1Ц documentation Aviacenter charter gate enumeration  R3 documentation SITA R3 enumeration  A4 documentation TAIS CRS for A4 enumeration  XS documentation SITA CRS enumeration  NDC documentation NDC based CRS enumeration  MV documentation GRS-MixVel
annotation	documentation Target GDS code
source	<s:attribute name="GDS" type="CRSType" use="required">   <s:annotation>     <s:documentation>Target GDS code</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/@ValidatingAirline

type	s:string
properties	use  optional
annotation	documentation Validating carrier
source	<s:attribute name="ValidatingAirline" type="s:string" use="optional">   <s:annotation>     <s:documentation>Validating carrier</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/@Interface

type	s:string
annotation	documentation GDS Interface name
source	<s:attribute name="Interface" type="s:string">   <s:annotation>     <s:documentation>GDS Interface name</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/@Office

type	restriction of s:string
facets	Kind  Value  Annotation minLength  3
annotation	documentation Target office to issue EMD
source	<s:attribute name="Office">   <s:annotation>     <s:documentation>Target office to issue EMD</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:minLength value="3"/>     </s:restriction>   </s:simpleType> </s:attribute>

element SIG_AirTicketRQ/IssueEMD/Coupons

diagram
properties	content  complex
children	Coupon
source	<s:element name="Coupons">   <s:complexType>     <s:sequence>       <s:element name="Coupon" maxOccurs="4">         <s:complexType>           <s:attribute name="Airline" use="required">             <s:annotation>               <s:documentation>Marketing Airline</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:string">                 <s:length value="2"/>                 <s:whiteSpace value="collapse"/>               </s:restriction>             </s:simpleType>           </s:attribute>           <s:attribute name="ServiceCode" type="s:string" use="required">             <s:annotation>               <s:documentation>Service code</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="ServiceName" type="s:string" use="required">             <s:annotation>               <s:documentation>Service name</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="Currency" type="s:string" use="required">             <s:annotation>               <s:documentation>Currency</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="CouponPrice" use="required">             <s:annotation>               <s:documentation>Price</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:decimal">                 <s:minInclusive value="0"/>               </s:restriction>             </s:simpleType>           </s:attribute>           <s:attribute name="PerUnitPrice" use="required">             <s:annotation>               <s:documentation>Per unit price in Currency</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:decimal">                 <s:minInclusive value="0"/>               </s:restriction>             </s:simpleType>           </s:attribute>           <s:attribute name="UnitCount" use="required">             <s:annotation>               <s:documentation>Service unit count</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:short">                 <s:minInclusive value="1"/>               </s:restriction>             </s:simpleType>           </s:attribute>           <s:attribute name="UnitType" use="required">             <s:annotation>               <s:documentation>Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:string">                 <s:enumeration value="KG"/>                 <s:enumeration value="LB"/>                 <s:enumeration value="PC"/>                 <s:enumeration value="ST"/>               </s:restriction>             </s:simpleType>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

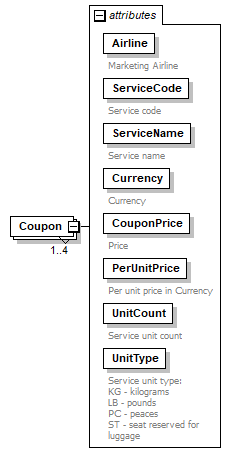

element SIG_AirTicketRQ/IssueEMD/Coupons/Coupon

diagram
properties	minOcc  1 maxOcc  4 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Airline   derived by: s:string   required         documentation Marketing Airline ServiceCode   s:string   required         documentation Service code ServiceName   s:string   required         documentation Service name Currency   s:string   required         documentation Currency CouponPrice   derived by: s:decimal   required         documentation Price PerUnitPrice   derived by: s:decimal   required         documentation Per unit price in Currency UnitCount   derived by: s:short   required         documentation Service unit count UnitType   derived by: s:string   required         documentation Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage
source	<s:element name="Coupon" maxOccurs="4">   <s:complexType>     <s:attribute name="Airline" use="required">       <s:annotation>         <s:documentation>Marketing Airline</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:length value="2"/>           <s:whiteSpace value="collapse"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="ServiceCode" type="s:string" use="required">       <s:annotation>         <s:documentation>Service code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ServiceName" type="s:string" use="required">       <s:annotation>         <s:documentation>Service name</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Currency" type="s:string" use="required">       <s:annotation>         <s:documentation>Currency</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="CouponPrice" use="required">       <s:annotation>         <s:documentation>Price</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:decimal">           <s:minInclusive value="0"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="PerUnitPrice" use="required">       <s:annotation>         <s:documentation>Per unit price in Currency</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:decimal">           <s:minInclusive value="0"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="UnitCount" use="required">       <s:annotation>         <s:documentation>Service unit count</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:short">           <s:minInclusive value="1"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="UnitType" use="required">       <s:annotation>         <s:documentation>Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:enumeration value="KG"/>           <s:enumeration value="LB"/>           <s:enumeration value="PC"/>           <s:enumeration value="ST"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@Airline

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation length  2 whiteSpace  collapse
annotation	documentation Marketing Airline
source	<s:attribute name="Airline" use="required">   <s:annotation>     <s:documentation>Marketing Airline</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:length value="2"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@ServiceCode

type	s:string
properties	use  required
annotation	documentation Service code
source	<s:attribute name="ServiceCode" type="s:string" use="required">   <s:annotation>     <s:documentation>Service code</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@ServiceName

type	s:string
properties	use  required
annotation	documentation Service name
source	<s:attribute name="ServiceName" type="s:string" use="required">   <s:annotation>     <s:documentation>Service name</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@Currency

type	s:string
properties	use  required
annotation	documentation Currency
source	<s:attribute name="Currency" type="s:string" use="required">   <s:annotation>     <s:documentation>Currency</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@CouponPrice

type	restriction of s:decimal
properties	use  required
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Price
source	<s:attribute name="CouponPrice" use="required">   <s:annotation>     <s:documentation>Price</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:decimal">       <s:minInclusive value="0"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@PerUnitPrice

type	restriction of s:decimal
properties	use  required
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation Per unit price in Currency
source	<s:attribute name="PerUnitPrice" use="required">   <s:annotation>     <s:documentation>Per unit price in Currency</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:decimal">       <s:minInclusive value="0"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@UnitCount

type	restriction of s:short
properties	use  required
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation Service unit count
source	<s:attribute name="UnitCount" use="required">   <s:annotation>     <s:documentation>Service unit count</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:short">       <s:minInclusive value="1"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirTicketRQ/IssueEMD/Coupons/Coupon/@UnitType

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation enumeration  KG enumeration  LB enumeration  PC enumeration  ST
annotation	documentation Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage
source	<s:attribute name="UnitType" use="required">   <s:annotation>     <s:documentation>Service unit type: KG - kilograms LB - pounds PC - peaces ST - seat reserved for luggage</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="KG"/>       <s:enumeration value="LB"/>       <s:enumeration value="PC"/>       <s:enumeration value="ST"/>     </s:restriction>   </s:simpleType> </s:attribute>

element SIG_AirTicketRQ/IssueEMD/Passenger

diagram
type	PassengerNameType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Title   derived by: s:string   required         documentation Passenger title: MR/MRS LastName   derived by: s:string   required         documentation Family name FirstName   s:string   required         documentation Given name
source	<s:element name="Passenger" type="PassengerNameType"/>

element SIG_AirTicketRQ/IssueEMD/Payments

diagram
type	PaymentsType
properties	content  complex
children	Payment
source	<s:element name="Payments" type="PaymentsType"/>

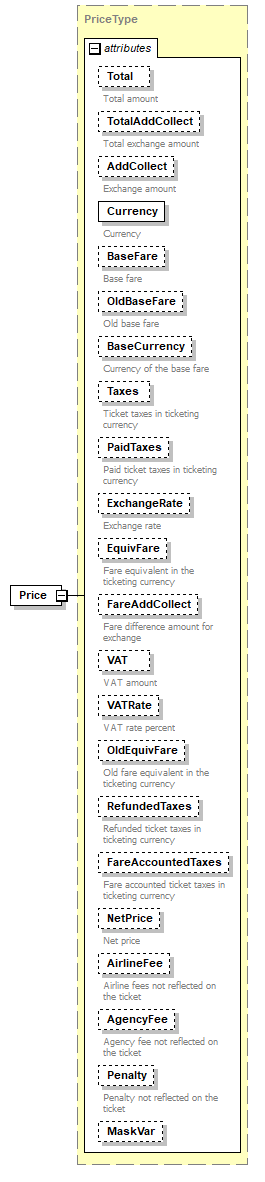

element SIG_AirTicketRQ/IssueEMD/Price

diagram
type	PriceType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:decimal   optional         documentation Total amount TotalAddCollect   s:decimal   optional         documentation Total exchange amount AddCollect   s:decimal   optional         documentation Exchange amount Currency   s:string   required         documentation Currency BaseFare   s:decimal   optional         documentation Base fare OldBaseFare   s:decimal   optional         documentation Old base fare BaseCurrency   s:string   optional         documentation Currency of the base fare Taxes   s:decimal            documentation Ticket taxes in ticketing currency PaidTaxes   s:decimal            documentation Paid ticket taxes in ticketing currency ExchangeRate   s:string            documentation Exchange rate EquivFare   s:decimal            documentation Fare equivalent in the ticketing currency FareAddCollect   s:decimal   optional         documentation Fare difference amount for exchange VAT   derived by: s:decimal            documentation VAT amount VATRate   derived by: s:decimal            documentation VAT rate percent OldEquivFare   s:decimal            documentation Old fare equivalent in the ticketing currency RefundedTaxes   s:decimal            documentation Refunded ticket taxes in ticketing currency FareAccountedTaxes   s:decimal            documentation Fare accounted ticket taxes in ticketing currency NetPrice   s:decimal            documentation Net price AirlineFee   s:decimal            documentation Airline fees not reflected on the ticket AgencyFee   s:decimal            documentation Agency fee not reflected on the ticket Penalty   s:decimal            documentation Penalty not reflected on the ticket MaskVar   s:decimal
source	<s:element name="Price" type="PriceType"/>
