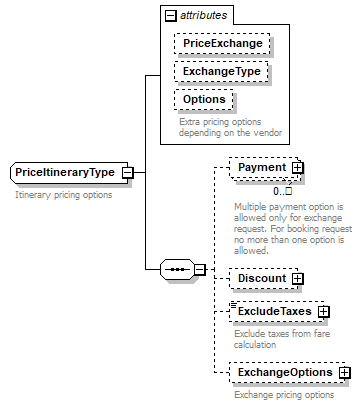

complexType PriceItineraryType

diagram
children	Payment Discount ExcludeTaxes ExchangeOptions
used by	element  SIG_AirBookRQ/PriceItinerary
attributes	Name   Type   Use   Default   Fixed   Annotation PriceExchange   s:boolean   optional         ExchangeType   RefundExchangeType            Options   s:string            documentation Extra pricing options depending on the vendor
annotation	documentation Itinerary pricing options
source	<s:complexType name="PriceItineraryType">   <s:annotation>     <s:documentation>Itinerary pricing options</s:documentation>   </s:annotation>   <s:sequence>     <s:element name="Payment" type="PaymentBaseType" minOccurs="0" maxOccurs="unbounded">       <s:annotation>         <s:documentation>Multiple payment option is allowed only for exchange request. For booking request no more than one option is allowed.</s:documentation>       </s:annotation>     </s:element>     <s:element name="Discount" type="DiscountType" minOccurs="0"/>     <s:element name="ExcludeTaxes" type="ExcludeTaxesType" minOccurs="0">       <s:annotation>         <s:documentation>Exclude taxes from fare calculation</s:documentation>       </s:annotation>     </s:element>     <s:element name="ExchangeOptions" minOccurs="0">       <s:annotation>         <s:documentation>Exchange pricing options</s:documentation>       </s:annotation>       <s:complexType>         <s:sequence>           <s:element name="FareCalc" type="s:string" minOccurs="0">             <s:annotation>               <s:documentation>Fare calculation</s:documentation>             </s:annotation>           </s:element>           <s:element name="ROE" type="CurrencyConversionRplType" minOccurs="0"/>         </s:sequence>         <s:attribute name="Penalty" type="s:decimal"/>         <s:attribute name="OldFare" type="s:decimal"/>         <s:attribute name="FareBrand" type="s:string"/>         <s:attribute name="DocNumber" type="s:string"/>         <s:attributeGroup ref="BagAllowanceType"/>         <s:attributeGroup ref="NotValidDatesType"/>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="PriceExchange" type="s:boolean" use="optional"/>   <s:attribute name="ExchangeType" type="RefundExchangeType"/>   <s:attribute name="Options" type="s:string">     <s:annotation>       <s:documentation>Extra pricing options depending on the vendor</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute PriceItineraryType/@PriceExchange

type	s:boolean
properties	use  optional
source	<s:attribute name="PriceExchange" type="s:boolean" use="optional"/>

attribute PriceItineraryType/@ExchangeType

type	RefundExchangeType
facets	Kind  Value  Annotation enumeration  Voluntary enumeration  Involuntary enumeration  ExchgViaRefund enumeration  InvolIATA enumeration  NameChange enumeration  VolOnIncomplete enumeration  VolOnOverbook enumeration  VolOnFull
source	<s:attribute name="ExchangeType" type="RefundExchangeType"/>

attribute PriceItineraryType/@Options

type	s:string
annotation	documentation Extra pricing options depending on the vendor
source	<s:attribute name="Options" type="s:string">   <s:annotation>     <s:documentation>Extra pricing options depending on the vendor</s:documentation>   </s:annotation> </s:attribute>

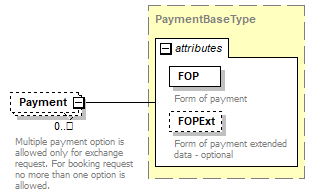

element PriceItineraryType/Payment

diagram
type	PaymentBaseType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPType   required         documentation Form of payment FOPExt   s:string            documentation Form of payment extended data - optional
annotation	documentation Multiple payment option is allowed only for exchange request. For booking request no more than one option is allowed.
source	<s:element name="Payment" type="PaymentBaseType" minOccurs="0" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Multiple payment option is allowed only for exchange request. For booking request no more than one option is allowed.</s:documentation>   </s:annotation> </s:element>

element PriceItineraryType/Discount

diagram
type	DiscountType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Name   s:string   optional         documentation Discount name Amount   derived by: s:integer   optional         documentation Discount amount AgreementNumber   s:string            documentation Agreement number Designator   s:string            documentation Discount fare designator to be added to fare code
source	<s:element name="Discount" type="DiscountType" minOccurs="0"/>

element PriceItineraryType/ExcludeTaxes

diagram
type	ExcludeTaxesType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Exclude   derived by: s:string   required         documentation All - exclude all taxes; List - exclude listed taxes; Ignore - ignore TST tax option - for exchange only.
annotation	documentation Exclude taxes from fare calculation
source	<s:element name="ExcludeTaxes" type="ExcludeTaxesType" minOccurs="0">   <s:annotation>     <s:documentation>Exclude taxes from fare calculation</s:documentation>   </s:annotation> </s:element>

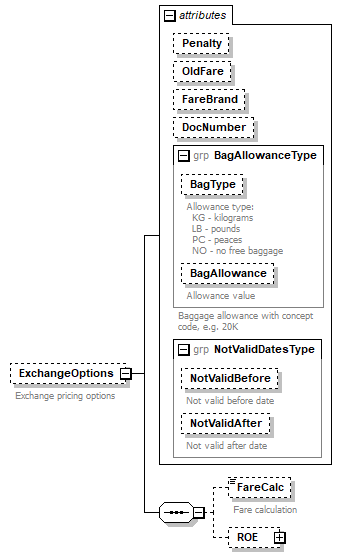

element PriceItineraryType/ExchangeOptions

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	FareCalc ROE
attributes	Name   Type   Use   Default   Fixed   Annotation Penalty   s:decimal            OldFare   s:decimal            FareBrand   s:string            DocNumber   s:string            BagType   derived by: s:string            documentation Allowance type:   KG - kilograms   LB - pounds   PC - peaces   NO - no free baggage BagAllowance   s:int            documentation Allowance value NotValidBefore   s:date   optional         documentation Not valid before date NotValidAfter   s:date   optional         documentation Not valid after date
annotation	documentation Exchange pricing options
source	<s:element name="ExchangeOptions" minOccurs="0">   <s:annotation>     <s:documentation>Exchange pricing options</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="FareCalc" type="s:string" minOccurs="0">         <s:annotation>           <s:documentation>Fare calculation</s:documentation>         </s:annotation>       </s:element>       <s:element name="ROE" type="CurrencyConversionRplType" minOccurs="0"/>     </s:sequence>     <s:attribute name="Penalty" type="s:decimal"/>     <s:attribute name="OldFare" type="s:decimal"/>     <s:attribute name="FareBrand" type="s:string"/>     <s:attribute name="DocNumber" type="s:string"/>     <s:attributeGroup ref="BagAllowanceType"/>     <s:attributeGroup ref="NotValidDatesType"/>   </s:complexType> </s:element>

attribute PriceItineraryType/ExchangeOptions/@Penalty

type	s:decimal
source	<s:attribute name="Penalty" type="s:decimal"/>

attribute PriceItineraryType/ExchangeOptions/@OldFare

type	s:decimal
source	<s:attribute name="OldFare" type="s:decimal"/>

attribute PriceItineraryType/ExchangeOptions/@FareBrand

type	s:string
source	<s:attribute name="FareBrand" type="s:string"/>

attribute PriceItineraryType/ExchangeOptions/@DocNumber

type	s:string
source	<s:attribute name="DocNumber" type="s:string"/>

element PriceItineraryType/ExchangeOptions/FareCalc

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Fare calculation
source	<s:element name="FareCalc" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>Fare calculation</s:documentation>   </s:annotation> </s:element>

element PriceItineraryType/ExchangeOptions/ROE

diagram
type	CurrencyConversionRplType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CurrencyFrom   s:string   required         CurrencyTo   s:string   required         RateDate   s:date   optional         documentation if not present - current date Amount   s:decimal   required         ExchangeRate   s:double   required
source	<s:element name="ROE" type="CurrencyConversionRplType" minOccurs="0"/>
