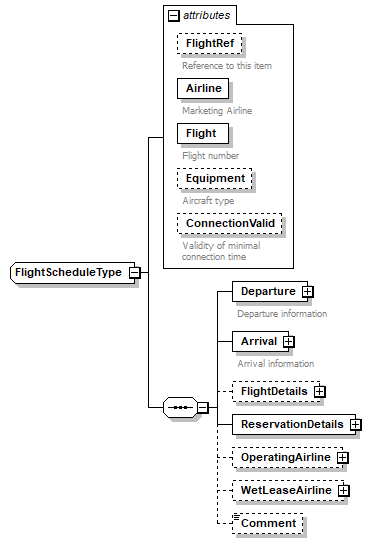

complexType FlightScheduleType

diagram
children	Departure Arrival FlightDetails ReservationDetails OperatingAirline WetLeaseAirline Comment
used by	element  ScheduleType/FlightSegment complexType  FlightSegmentType
attributes	Name   Type   Use   Default   Fixed   Annotation FlightRef   s:string   optional         documentation Reference to this item Airline   derived by: s:string   required         documentation Marketing Airline Flight   s:string   required         documentation Flight number Equipment   s:string            documentation Aircraft type ConnectionValid   derived by: s:string            documentation Validity of minimal connection time
source	<s:complexType name="FlightScheduleType">   <s:sequence>     <s:element name="Departure" type="FlightEvent">       <s:annotation>         <s:documentation>Departure information</s:documentation>       </s:annotation>     </s:element>     <s:element name="Arrival" type="FlightEvent">       <s:annotation>         <s:documentation>Arrival information</s:documentation>       </s:annotation>     </s:element>     <s:element name="FlightDetails" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="Stop" minOccurs="0" maxOccurs="10">             <s:complexType>               <s:attribute name="Airport" type="s:string" use="required">                 <s:annotation>                   <s:documentation>Airport code</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="ArrTime" type="s:dateTime" use="required">                 <s:annotation>                   <s:documentation>Local date/time, includes timezone shift</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="DepTime" type="s:dateTime" use="required">                 <s:annotation>                   <s:documentation>Local date/time, includes timezone shift</s:documentation>                 </s:annotation>               </s:attribute>             </s:complexType>           </s:element>         </s:sequence>         <s:attribute name="StopCount" type="s:int">           <s:annotation>             <s:documentation>Number of intermediate stops</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="Stops" type="strlist">           <s:annotation>             <s:documentation>List of intermediate stops (airport codes)</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="StopTime" type="strlist">           <s:annotation>             <s:documentation>List of waiting times (HH:MM)</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="MealCodes" type="strlist">           <s:annotation>             <s:documentation>List of meal codes (tba)</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="TypeOfService" type="TypeOfServiceType">           <s:annotation>             <s:documentation>Regular Charter</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>     <s:element name="ReservationDetails">       <s:complexType>         <s:sequence>           <s:element name="Reservation" maxOccurs="unbounded">             <s:complexType>               <s:attributeGroup ref="Reservation"/>               <s:attribute name="Cabin" type="CabinType" use="optional">                 <s:annotation>                   <s:documentation>Cabin code. </s:documentation>                 </s:annotation>               </s:attribute>               <s:attributeGroup ref="BookingStatusType"/>               <s:attribute name="AAS">                 <s:annotation>                   <s:documentation>Action/advice/status code: HK, TK, etc</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:string">                     <s:length value="2"/>                     <s:whiteSpace value="collapse"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="FareBasis" type="s:string">                 <s:annotation>                   <s:documentation>Fare basis code of Adult fare - for metasearch replyes only</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="CRS" type="CRSType">                 <s:annotation>                   <s:documentation>CRS code</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="RecordLocator" type="s:string">                 <s:annotation>                   <s:documentation>Record Locator</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="AirlineRecordLocator" type="s:string">                 <s:annotation>                   <s:documentation>Airline record locator</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="GdsRecordLocator" type="s:string">                 <s:annotation>                   <s:documentation>Airline's GDS record locator</s:documentation>                 </s:annotation>               </s:attribute>             </s:complexType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="OperatingAirline" minOccurs="0">       <s:complexType>         <s:attribute name="Airline" use="required">           <s:annotation>             <s:documentation>Operating Airline</s:documentation>           </s:annotation>           <s:simpleType>             <s:restriction base="s:string">               <s:length value="2"/>               <s:whiteSpace value="collapse"/>             </s:restriction>           </s:simpleType>         </s:attribute>         <s:attribute name="Flight" type="s:string">           <s:annotation>             <s:documentation>Operating flight number</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>     <s:element name="WetLeaseAirline" minOccurs="0">       <s:complexType>         <s:attribute name="Airline" use="required">           <s:annotation>             <s:documentation>Wet lease Airline</s:documentation>           </s:annotation>           <s:simpleType>             <s:restriction base="s:string">               <s:length value="2"/>               <s:whiteSpace value="collapse"/>             </s:restriction>           </s:simpleType>         </s:attribute>         <s:attribute name="Flight" type="s:string">           <s:annotation>             <s:documentation>Wet lease flight number</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>     <s:element name="Comment" type="s:string" minOccurs="0"/>   </s:sequence>   <s:attribute name="FlightRef" type="s:string" use="optional">     <s:annotation>       <s:documentation>Reference to this item</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Airline" use="required">     <s:annotation>       <s:documentation>Marketing Airline</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:length value="2"/>         <s:whiteSpace value="collapse"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="Flight" type="s:string" use="required">     <s:annotation>       <s:documentation>Flight number</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Equipment" type="s:string">     <s:annotation>       <s:documentation>Aircraft type</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="ConnectionValid">     <s:annotation>       <s:documentation>Validity of minimal connection time</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:enumeration value="Yes"/>         <s:enumeration value="No"/>         <s:enumeration value="Unknown"/>       </s:restriction>     </s:simpleType>   </s:attribute> </s:complexType>

attribute FlightScheduleType/@FlightRef

type	s:string
properties	use  optional
annotation	documentation Reference to this item
source	<s:attribute name="FlightRef" type="s:string" use="optional">   <s:annotation>     <s:documentation>Reference to this item</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/@Airline

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation length  2 whiteSpace  collapse
annotation	documentation Marketing Airline
source	<s:attribute name="Airline" use="required">   <s:annotation>     <s:documentation>Marketing Airline</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:length value="2"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightScheduleType/@Flight

type	s:string
properties	use  required
annotation	documentation Flight number
source	<s:attribute name="Flight" type="s:string" use="required">   <s:annotation>     <s:documentation>Flight number</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/@Equipment

type	s:string
annotation	documentation Aircraft type
source	<s:attribute name="Equipment" type="s:string">   <s:annotation>     <s:documentation>Aircraft type</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/@ConnectionValid

type	restriction of s:string
facets	Kind  Value  Annotation enumeration  Yes enumeration  No enumeration  Unknown
annotation	documentation Validity of minimal connection time
source	<s:attribute name="ConnectionValid">   <s:annotation>     <s:documentation>Validity of minimal connection time</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Yes"/>       <s:enumeration value="No"/>       <s:enumeration value="Unknown"/>     </s:restriction>   </s:simpleType> </s:attribute>

element FlightScheduleType/Departure

diagram
type	FlightEvent
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Airport   s:string   required         documentation Airport code Time   s:dateTime   required         documentation Local date/time, includes timezone shift City   s:string   optional         documentation City code Terminal   s:string            documentation Terminal code
annotation	documentation Departure information
source	<s:element name="Departure" type="FlightEvent">   <s:annotation>     <s:documentation>Departure information</s:documentation>   </s:annotation> </s:element>

element FlightScheduleType/Arrival

diagram
type	FlightEvent
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Airport   s:string   required         documentation Airport code Time   s:dateTime   required         documentation Local date/time, includes timezone shift City   s:string   optional         documentation City code Terminal   s:string            documentation Terminal code
annotation	documentation Arrival information
source	<s:element name="Arrival" type="FlightEvent">   <s:annotation>     <s:documentation>Arrival information</s:documentation>   </s:annotation> </s:element>

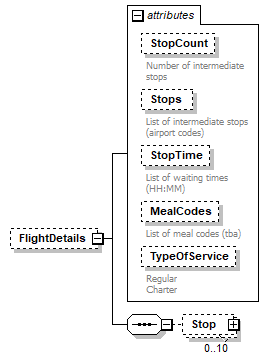

element FlightScheduleType/FlightDetails

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Stop
attributes	Name   Type   Use   Default   Fixed   Annotation StopCount   s:int            documentation Number of intermediate stops Stops   strlist            documentation List of intermediate stops (airport codes) StopTime   strlist            documentation List of waiting times (HH:MM) MealCodes   strlist            documentation List of meal codes (tba) TypeOfService   TypeOfServiceType            documentation Regular Charter
source	<s:element name="FlightDetails" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Stop" minOccurs="0" maxOccurs="10">         <s:complexType>           <s:attribute name="Airport" type="s:string" use="required">             <s:annotation>               <s:documentation>Airport code</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="ArrTime" type="s:dateTime" use="required">             <s:annotation>               <s:documentation>Local date/time, includes timezone shift</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="DepTime" type="s:dateTime" use="required">             <s:annotation>               <s:documentation>Local date/time, includes timezone shift</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>     <s:attribute name="StopCount" type="s:int">       <s:annotation>         <s:documentation>Number of intermediate stops</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Stops" type="strlist">       <s:annotation>         <s:documentation>List of intermediate stops (airport codes)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="StopTime" type="strlist">       <s:annotation>         <s:documentation>List of waiting times (HH:MM)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="MealCodes" type="strlist">       <s:annotation>         <s:documentation>List of meal codes (tba)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="TypeOfService" type="TypeOfServiceType">       <s:annotation>         <s:documentation>Regular Charter</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FlightScheduleType/FlightDetails/@StopCount

type	s:int
annotation	documentation Number of intermediate stops
source	<s:attribute name="StopCount" type="s:int">   <s:annotation>     <s:documentation>Number of intermediate stops</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/FlightDetails/@Stops

type	strlist
annotation	documentation List of intermediate stops (airport codes)
source	<s:attribute name="Stops" type="strlist">   <s:annotation>     <s:documentation>List of intermediate stops (airport codes)</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/FlightDetails/@StopTime

type	strlist
annotation	documentation List of waiting times (HH:MM)
source	<s:attribute name="StopTime" type="strlist">   <s:annotation>     <s:documentation>List of waiting times (HH:MM)</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/FlightDetails/@MealCodes

type	strlist
annotation	documentation List of meal codes (tba)
source	<s:attribute name="MealCodes" type="strlist">   <s:annotation>     <s:documentation>List of meal codes (tba)</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/FlightDetails/@TypeOfService

type	TypeOfServiceType
facets	Kind  Value  Annotation enumeration  Charter enumeration  Regular
annotation	documentation Regular Charter
source	<s:attribute name="TypeOfService" type="TypeOfServiceType">   <s:annotation>     <s:documentation>Regular Charter</s:documentation>   </s:annotation> </s:attribute>

element FlightScheduleType/FlightDetails/Stop

diagram
properties	minOcc  0 maxOcc  10 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Airport   s:string   required         documentation Airport code ArrTime   s:dateTime   required         documentation Local date/time, includes timezone shift DepTime   s:dateTime   required         documentation Local date/time, includes timezone shift
source	<s:element name="Stop" minOccurs="0" maxOccurs="10">   <s:complexType>     <s:attribute name="Airport" type="s:string" use="required">       <s:annotation>         <s:documentation>Airport code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ArrTime" type="s:dateTime" use="required">       <s:annotation>         <s:documentation>Local date/time, includes timezone shift</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="DepTime" type="s:dateTime" use="required">       <s:annotation>         <s:documentation>Local date/time, includes timezone shift</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FlightScheduleType/FlightDetails/Stop/@Airport

type	s:string
properties	use  required
annotation	documentation Airport code
source	<s:attribute name="Airport" type="s:string" use="required">   <s:annotation>     <s:documentation>Airport code</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/FlightDetails/Stop/@ArrTime

type	s:dateTime
properties	use  required
annotation	documentation Local date/time, includes timezone shift
source	<s:attribute name="ArrTime" type="s:dateTime" use="required">   <s:annotation>     <s:documentation>Local date/time, includes timezone shift</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/FlightDetails/Stop/@DepTime

type	s:dateTime
properties	use  required
annotation	documentation Local date/time, includes timezone shift
source	<s:attribute name="DepTime" type="s:dateTime" use="required">   <s:annotation>     <s:documentation>Local date/time, includes timezone shift</s:documentation>   </s:annotation> </s:attribute>

element FlightScheduleType/ReservationDetails

diagram
properties	content  complex
children	Reservation
source	<s:element name="ReservationDetails">   <s:complexType>     <s:sequence>       <s:element name="Reservation" maxOccurs="unbounded">         <s:complexType>           <s:attributeGroup ref="Reservation"/>           <s:attribute name="Cabin" type="CabinType" use="optional">             <s:annotation>               <s:documentation>Cabin code. </s:documentation>             </s:annotation>           </s:attribute>           <s:attributeGroup ref="BookingStatusType"/>           <s:attribute name="AAS">             <s:annotation>               <s:documentation>Action/advice/status code: HK, TK, etc</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:string">                 <s:length value="2"/>                 <s:whiteSpace value="collapse"/>               </s:restriction>             </s:simpleType>           </s:attribute>           <s:attribute name="FareBasis" type="s:string">             <s:annotation>               <s:documentation>Fare basis code of Adult fare - for metasearch replyes only</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="CRS" type="CRSType">             <s:annotation>               <s:documentation>CRS code</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="RecordLocator" type="s:string">             <s:annotation>               <s:documentation>Record Locator</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="AirlineRecordLocator" type="s:string">             <s:annotation>               <s:documentation>Airline record locator</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="GdsRecordLocator" type="s:string">             <s:annotation>               <s:documentation>Airline's GDS record locator</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

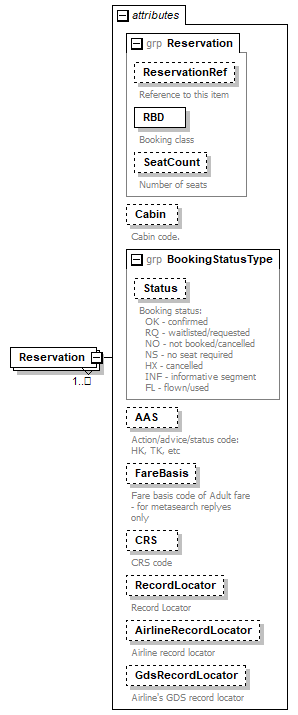

element FlightScheduleType/ReservationDetails/Reservation

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ReservationRef   s:string   optional         documentation Reference to this item RBD   s:string   required         documentation Booking class SeatCount   s:int   optional         documentation Number of seats Cabin   CabinType   optional         documentation Cabin code. Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   INF - informative segment   FL - flown/used AAS   derived by: s:string            documentation Action/advice/status code: HK, TK, etc FareBasis   s:string            documentation Fare basis code of Adult fare - for metasearch replyes only CRS   CRSType            documentation CRS code RecordLocator   s:string            documentation Record Locator AirlineRecordLocator   s:string            documentation Airline record locator GdsRecordLocator   s:string            documentation Airline's GDS record locator
source	<s:element name="Reservation" maxOccurs="unbounded">   <s:complexType>     <s:attributeGroup ref="Reservation"/>     <s:attribute name="Cabin" type="CabinType" use="optional">       <s:annotation>         <s:documentation>Cabin code. </s:documentation>       </s:annotation>     </s:attribute>     <s:attributeGroup ref="BookingStatusType"/>     <s:attribute name="AAS">       <s:annotation>         <s:documentation>Action/advice/status code: HK, TK, etc</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:length value="2"/>           <s:whiteSpace value="collapse"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="FareBasis" type="s:string">       <s:annotation>         <s:documentation>Fare basis code of Adult fare - for metasearch replyes only</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="CRS" type="CRSType">       <s:annotation>         <s:documentation>CRS code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="RecordLocator" type="s:string">       <s:annotation>         <s:documentation>Record Locator</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="AirlineRecordLocator" type="s:string">       <s:annotation>         <s:documentation>Airline record locator</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="GdsRecordLocator" type="s:string">       <s:annotation>         <s:documentation>Airline's GDS record locator</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FlightScheduleType/ReservationDetails/Reservation/@Cabin

type	CabinType
properties	use  optional
facets	Kind  Value  Annotation enumeration  First enumeration  Business enumeration  Economy enumeration  Comfort
annotation	documentation Cabin code.
source	<s:attribute name="Cabin" type="CabinType" use="optional">   <s:annotation>     <s:documentation>Cabin code. </s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/ReservationDetails/Reservation/@AAS

type	restriction of s:string
facets	Kind  Value  Annotation length  2 whiteSpace  collapse
annotation	documentation Action/advice/status code: HK, TK, etc
source	<s:attribute name="AAS">   <s:annotation>     <s:documentation>Action/advice/status code: HK, TK, etc</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:length value="2"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightScheduleType/ReservationDetails/Reservation/@FareBasis

type	s:string
annotation	documentation Fare basis code of Adult fare - for metasearch replyes only
source	<s:attribute name="FareBasis" type="s:string">   <s:annotation>     <s:documentation>Fare basis code of Adult fare - for metasearch replyes only</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/ReservationDetails/Reservation/@CRS

type	CRSType
facets	Kind  Value  Annotation enumeration  1A documentation Amadeus enumeration  1G documentation Galileo enumeration  1H documentation Sirena2000 enumeration  1M documentation TAIS CRS enumeration  1N enumeration  1S documentation Sabre enumeration  S7 documentation SITA S7 enumeration  DP documentation Navitaire for DP enumeration  1Б documentation Charter gate enumeration  1Ц documentation Aviacenter charter gate enumeration  R3 documentation SITA R3 enumeration  A4 documentation TAIS CRS for A4 enumeration  XS documentation SITA CRS enumeration  NDC documentation NDC based CRS enumeration  MV documentation GRS-MixVel
annotation	documentation CRS code
source	<s:attribute name="CRS" type="CRSType">   <s:annotation>     <s:documentation>CRS code</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/ReservationDetails/Reservation/@RecordLocator

type	s:string
annotation	documentation Record Locator
source	<s:attribute name="RecordLocator" type="s:string">   <s:annotation>     <s:documentation>Record Locator</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/ReservationDetails/Reservation/@AirlineRecordLocator

type	s:string
annotation	documentation Airline record locator
source	<s:attribute name="AirlineRecordLocator" type="s:string">   <s:annotation>     <s:documentation>Airline record locator</s:documentation>   </s:annotation> </s:attribute>

attribute FlightScheduleType/ReservationDetails/Reservation/@GdsRecordLocator

type	s:string
annotation	documentation Airline's GDS record locator
source	<s:attribute name="GdsRecordLocator" type="s:string">   <s:annotation>     <s:documentation>Airline's GDS record locator</s:documentation>   </s:annotation> </s:attribute>

element FlightScheduleType/OperatingAirline

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Airline   derived by: s:string   required         documentation Operating Airline Flight   s:string            documentation Operating flight number
source	<s:element name="OperatingAirline" minOccurs="0">   <s:complexType>     <s:attribute name="Airline" use="required">       <s:annotation>         <s:documentation>Operating Airline</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:length value="2"/>           <s:whiteSpace value="collapse"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="Flight" type="s:string">       <s:annotation>         <s:documentation>Operating flight number</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FlightScheduleType/OperatingAirline/@Airline

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation length  2 whiteSpace  collapse
annotation	documentation Operating Airline
source	<s:attribute name="Airline" use="required">   <s:annotation>     <s:documentation>Operating Airline</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:length value="2"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightScheduleType/OperatingAirline/@Flight

type	s:string
annotation	documentation Operating flight number
source	<s:attribute name="Flight" type="s:string">   <s:annotation>     <s:documentation>Operating flight number</s:documentation>   </s:annotation> </s:attribute>

element FlightScheduleType/WetLeaseAirline

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Airline   derived by: s:string   required         documentation Wet lease Airline Flight   s:string            documentation Wet lease flight number
source	<s:element name="WetLeaseAirline" minOccurs="0">   <s:complexType>     <s:attribute name="Airline" use="required">       <s:annotation>         <s:documentation>Wet lease Airline</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:length value="2"/>           <s:whiteSpace value="collapse"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="Flight" type="s:string">       <s:annotation>         <s:documentation>Wet lease flight number</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FlightScheduleType/WetLeaseAirline/@Airline

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation length  2 whiteSpace  collapse
annotation	documentation Wet lease Airline
source	<s:attribute name="Airline" use="required">   <s:annotation>     <s:documentation>Wet lease Airline</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:length value="2"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightScheduleType/WetLeaseAirline/@Flight

type	s:string
annotation	documentation Wet lease flight number
source	<s:attribute name="Flight" type="s:string">   <s:annotation>     <s:documentation>Wet lease flight number</s:documentation>   </s:annotation> </s:attribute>

element FlightScheduleType/Comment

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
source	<s:element name="Comment" type="s:string" minOccurs="0"/>
