complexType ErrorType

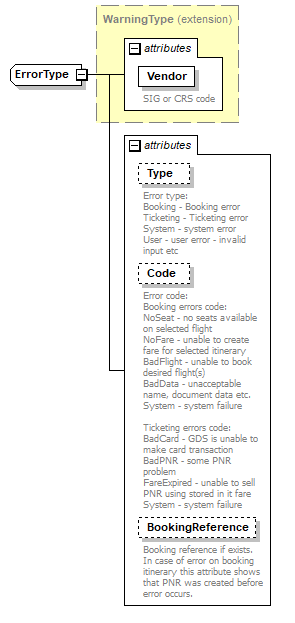

diagram
type	extension of WarningType
properties	base  WarningType
used by	elements  SIG_AirTicketRS/TicketInfo/Ticket/Error ErrorsType/Error
attributes	Name   Type   Use   Default   Fixed   Annotation Vendor   derived by: s:string   required         documentation SIG or CRS code Type   derived by: s:string   optional         documentation Error type: Booking - Booking error Ticketing - Ticketing error System - system error User - user error - invalid input etc Code   derived by: s:string   optional         documentation Error code: Booking errors code: NoSeat - no seats available on selected flight NoFare - unable to create fare for selected itinerary BadFlight - unable to book desired flight(s) BadData - unacceptable name, document data etc. System - system failure Ticketing errors code: BadCard - GDS is unable to make card transaction BadPNR - some PNR problem FareExpired - unable to sell PNR using stored in it fare System - system failure BookingReference   s:string   optional         documentation Booking reference if exists. In case of error on booking itinerary this attribute shows that PNR was created before error occurs.
source	<s:complexType name="ErrorType">   <s:simpleContent>     <s:extension base="WarningType">       <s:attribute name="Type" use="optional">         <s:annotation>           <s:documentation>Error type: Booking - Booking error Ticketing - Ticketing error System - system error User - user error - invalid input etc</s:documentation>         </s:annotation>         <s:simpleType>           <s:restriction base="s:string">             <s:enumeration value="Booking"/>             <s:enumeration value="Ticketing"/>             <s:enumeration value="System"/>             <s:enumeration value="User"/>           </s:restriction>         </s:simpleType>       </s:attribute>       <s:attribute name="Code" use="optional">         <s:annotation>           <s:documentation>Error code: Booking errors code: NoSeat - no seats available on selected flight NoFare - unable to create fare for selected itinerary BadFlight - unable to book desired flight(s) BadData - unacceptable name, document data etc. System - system failure Ticketing errors code: BadCard - GDS is unable to make card transaction BadPNR - some PNR problem FareExpired - unable to sell PNR using stored in it fare System - system failure</s:documentation>         </s:annotation>         <s:simpleType>           <s:restriction base="s:string">             <s:enumeration value="NoSeat"/>             <s:enumeration value="NoFare"/>             <s:enumeration value="BadFlight"/>             <s:enumeration value="BadData"/>             <s:enumeration value="System"/>             <s:enumeration value="BadCard"/>             <s:enumeration value="BadPNR"/>             <s:enumeration value="FareExpired"/>           </s:restriction>         </s:simpleType>       </s:attribute>       <s:attribute name="BookingReference" type="s:string" use="optional">         <s:annotation>           <s:documentation>Booking reference if exists. In case of error on booking itinerary this attribute shows that PNR was created before error occurs.</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:simpleContent> </s:complexType>

attribute ErrorType/@Type

type	restriction of s:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  Booking enumeration  Ticketing enumeration  System enumeration  User
annotation	documentation Error type: Booking - Booking error Ticketing - Ticketing error System - system error User - user error - invalid input etc
source	<s:attribute name="Type" use="optional">   <s:annotation>     <s:documentation>Error type: Booking - Booking error Ticketing - Ticketing error System - system error User - user error - invalid input etc</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Booking"/>       <s:enumeration value="Ticketing"/>       <s:enumeration value="System"/>       <s:enumeration value="User"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute ErrorType/@Code

type	restriction of s:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  NoSeat enumeration  NoFare enumeration  BadFlight enumeration  BadData enumeration  System enumeration  BadCard enumeration  BadPNR enumeration  FareExpired
annotation	documentation Error code: Booking errors code: NoSeat - no seats available on selected flight NoFare - unable to create fare for selected itinerary BadFlight - unable to book desired flight(s) BadData - unacceptable name, document data etc. System - system failure Ticketing errors code: BadCard - GDS is unable to make card transaction BadPNR - some PNR problem FareExpired - unable to sell PNR using stored in it fare System - system failure
source	<s:attribute name="Code" use="optional">   <s:annotation>     <s:documentation>Error code: Booking errors code: NoSeat - no seats available on selected flight NoFare - unable to create fare for selected itinerary BadFlight - unable to book desired flight(s) BadData - unacceptable name, document data etc. System - system failure Ticketing errors code: BadCard - GDS is unable to make card transaction BadPNR - some PNR problem FareExpired - unable to sell PNR using stored in it fare System - system failure</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="NoSeat"/>       <s:enumeration value="NoFare"/>       <s:enumeration value="BadFlight"/>       <s:enumeration value="BadData"/>       <s:enumeration value="System"/>       <s:enumeration value="BadCard"/>       <s:enumeration value="BadPNR"/>       <s:enumeration value="FareExpired"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute ErrorType/@BookingReference

type	s:string
properties	use  optional
annotation	documentation Booking reference if exists. In case of error on booking itinerary this attribute shows that PNR was created before error occurs.
source	<s:attribute name="BookingReference" type="s:string" use="optional">   <s:annotation>     <s:documentation>Booking reference if exists. In case of error on booking itinerary this attribute shows that PNR was created before error occurs.</s:documentation>   </s:annotation> </s:attribute>
