complexType QueueItemType

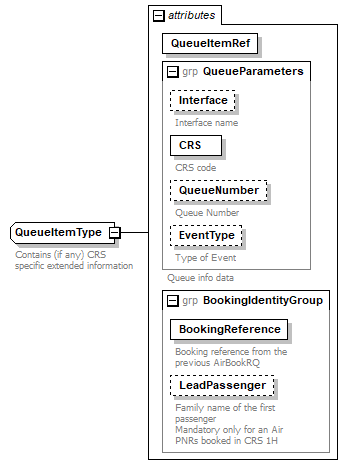

diagram
type	extension of s:string
properties	base  s:string
used by	element  SIG_QueueRS/QueueItems/QueueItem
attributes	Name   Type   Use   Default   Fixed   Annotation QueueItemRef   s:string   required         Interface   s:string   optional         documentation Interface name CRS   CRSType   required         documentation CRS code QueueNumber   s:string            documentation Queue Number EventType   s:string   optional         documentation Type of Event BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H
annotation	documentation Contains (if any) CRS specific extended information
source	<s:complexType name="QueueItemType">   <s:annotation>     <s:documentation>Contains (if any) CRS specific extended information</s:documentation>   </s:annotation>   <s:simpleContent>     <s:extension base="s:string">       <s:attribute name="QueueItemRef" type="s:string" use="required"/>       <s:attributeGroup ref="QueueParameters"/>       <s:attributeGroup ref="BookingIdentityGroup"/>     </s:extension>   </s:simpleContent> </s:complexType>

attribute QueueItemType/@QueueItemRef

type	s:string
properties	use  required
source	<s:attribute name="QueueItemRef" type="s:string" use="required"/>
