complexType FlightPrefType

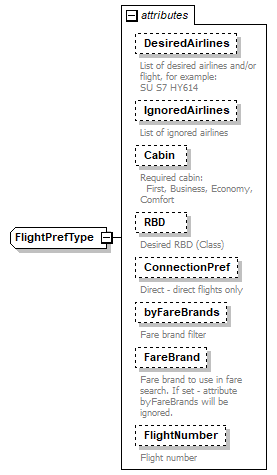

diagram
used by	elements  SIG_AirShopRQ/FlightPref SIG_AirAvailRQ/FlightPref SIG_AirReShopRQ/FlightPref SIG_AirScheduleRQ/FlightPref ShopItineraryType/OriginDestination/FlightPref SchedItineraryType/OriginDestination/FlightPref
attributes	Name   Type   Use   Default   Fixed   Annotation DesiredAirlines   strlist            documentation List of desired airlines and/or flight, for example: SU S7 HY614 IgnoredAirlines   strlist            documentation List of ignored airlines Cabin   CabinType            documentation Required cabin:   First, Business, Economy, Comfort RBD   derived by: s:string            documentation Desired RBD (Class) ConnectionPref   derived by: s:string            documentation Direct - direct flights only byFareBrands   derived by: s:string            documentation Fare brand filter FareBrand   s:string            documentation Fare brand to use in fare search. If set - attribute byFareBrands will be ignored. FlightNumber   s:string            documentation Flight number
source	<s:complexType name="FlightPrefType">   <s:attribute name="DesiredAirlines" type="strlist">     <s:annotation>       <s:documentation>List of desired airlines and/or flight, for example: SU S7 HY614</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="IgnoredAirlines" type="strlist">     <s:annotation>       <s:documentation>List of ignored airlines</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Cabin" type="CabinType">     <s:annotation>       <s:documentation>Required cabin:   First, Business, Economy, Comfort</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="RBD">     <s:annotation>       <s:documentation>Desired RBD (Class)</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:minLength value="1"/>         <s:maxLength value="2"/>         <s:whiteSpace value="collapse"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="ConnectionPref">     <s:annotation>       <s:documentation>Direct - direct flights only</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:enumeration value="Direct"/>         <s:enumeration value="DirectNonStop"/>         <s:enumeration value="Interline"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="byFareBrands">     <s:annotation>       <s:documentation>Fare brand filter</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:enumeration value="cheapest"/>         <s:enumeration value="best"/>         <s:enumeration value="all"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="FareBrand" type="s:string">     <s:annotation>       <s:documentation>Fare brand to use in fare search. If set - attribute byFareBrands will be ignored.</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="FlightNumber" type="s:string">     <s:annotation>       <s:documentation>Flight number</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute FlightPrefType/@DesiredAirlines

type	strlist
annotation	documentation List of desired airlines and/or flight, for example: SU S7 HY614
source	<s:attribute name="DesiredAirlines" type="strlist">   <s:annotation>     <s:documentation>List of desired airlines and/or flight, for example: SU S7 HY614</s:documentation>   </s:annotation> </s:attribute>

attribute FlightPrefType/@IgnoredAirlines

type	strlist
annotation	documentation List of ignored airlines
source	<s:attribute name="IgnoredAirlines" type="strlist">   <s:annotation>     <s:documentation>List of ignored airlines</s:documentation>   </s:annotation> </s:attribute>

attribute FlightPrefType/@Cabin

type	CabinType
facets	Kind  Value  Annotation enumeration  First enumeration  Business enumeration  Economy enumeration  Comfort
annotation	documentation Required cabin:   First, Business, Economy, Comfort
source	<s:attribute name="Cabin" type="CabinType">   <s:annotation>     <s:documentation>Required cabin:   First, Business, Economy, Comfort</s:documentation>   </s:annotation> </s:attribute>

attribute FlightPrefType/@RBD

type	restriction of s:string
facets	Kind  Value  Annotation minLength  1 maxLength  2 whiteSpace  collapse
annotation	documentation Desired RBD (Class)
source	<s:attribute name="RBD">   <s:annotation>     <s:documentation>Desired RBD (Class)</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:minLength value="1"/>       <s:maxLength value="2"/>       <s:whiteSpace value="collapse"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightPrefType/@ConnectionPref

type	restriction of s:string
facets	Kind  Value  Annotation enumeration  Direct enumeration  DirectNonStop enumeration  Interline
annotation	documentation Direct - direct flights only
source	<s:attribute name="ConnectionPref">   <s:annotation>     <s:documentation>Direct - direct flights only</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Direct"/>       <s:enumeration value="DirectNonStop"/>       <s:enumeration value="Interline"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightPrefType/@byFareBrands

type	restriction of s:string
facets	Kind  Value  Annotation enumeration  cheapest enumeration  best enumeration  all
annotation	documentation Fare brand filter
source	<s:attribute name="byFareBrands">   <s:annotation>     <s:documentation>Fare brand filter</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="cheapest"/>       <s:enumeration value="best"/>       <s:enumeration value="all"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FlightPrefType/@FareBrand

type	s:string
annotation	documentation Fare brand to use in fare search. If set - attribute byFareBrands will be ignored.
source	<s:attribute name="FareBrand" type="s:string">   <s:annotation>     <s:documentation>Fare brand to use in fare search. If set - attribute byFareBrands will be ignored.</s:documentation>   </s:annotation> </s:attribute>

attribute FlightPrefType/@FlightNumber

type	s:string
annotation	documentation Flight number
source	<s:attribute name="FlightNumber" type="s:string">   <s:annotation>     <s:documentation>Flight number</s:documentation>   </s:annotation> </s:attribute>
