complexType TicketActionInfo

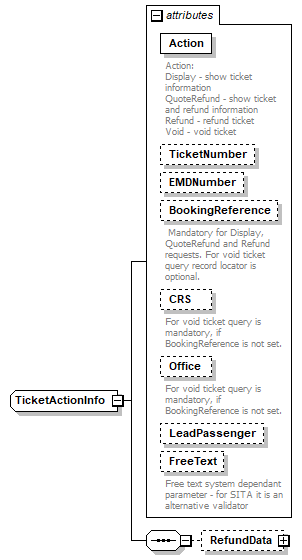

diagram
children	RefundData
used by	element  SIG_AirTicketRQ/TicketInfo/Ticket
attributes	Name   Type   Use   Default   Fixed   Annotation Action   TicketActionType   required         documentation Action: Display - show ticket information QuoteRefund - show ticket and refund information Refund - refund ticket Void - void ticket TicketNumber   s:string            EMDNumber   s:string            BookingReference   s:string            documentation Mandatory for Display, QuoteRefund and Refund requests. For void ticket query record locator is optional. CRS   CRSType            documentation For void ticket query is mandatory, if BookingReference is not set. Office   derived by: s:string            documentation For void ticket query is mandatory, if BookingReference is not set. LeadPassenger   s:string            FreeText   s:string            documentation Free text system dependant parameter - for SITA it is an alternative validator
source	<s:complexType name="TicketActionInfo">   <s:sequence>     <s:element name="RefundData" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="Price" minOccurs="0">             <s:complexType>               <s:attribute name="Total" type="s:float" use="required"/>               <s:attribute name="Currency" type="s:string" use="required"/>               <s:attribute name="BaseFare" type="s:float" use="required"/>               <s:attribute name="EquivFare" type="s:float" use="required"/>               <s:attribute name="BaseCurrency" type="s:string" use="required"/>               <s:attribute name="Penalty" type="s:float" use="required"/>             </s:complexType>           </s:element>           <s:element name="FOPData" minOccurs="0">             <s:complexType>               <s:sequence>                 <s:element name="FOPItem" type="PaymentType" maxOccurs="unbounded"/>               </s:sequence>             </s:complexType>           </s:element>         </s:sequence>         <s:attribute name="RefundType" type="RefundExchangeType" use="required">           <s:annotation>             <s:documentation>Refund type: Voluntary Involuntary</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="QuoteSource" type="s:string"/>         <s:attribute name="QuoteMethod" type="QuoteType">           <s:annotation>             <s:documentation>Quote calculation method: Automatic Manual</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="Action" type="TicketActionType" use="required">     <s:annotation>       <s:documentation>Action: Display - show ticket information QuoteRefund - show ticket and refund information Refund - refund ticket Void - void ticket</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="TicketNumber" type="s:string"/>   <s:attribute name="EMDNumber" type="s:string"/>   <s:attribute name="BookingReference" type="s:string">     <s:annotation>       <s:documentation> Mandatory for Display, QuoteRefund and Refund requests. For void ticket query record locator is optional.</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="CRS" type="CRSType">     <s:annotation>       <s:documentation>For void ticket query is mandatory, if BookingReference is not set.</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Office">     <s:annotation>       <s:documentation>For void ticket query is mandatory, if BookingReference is not set.</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:minLength value="3"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="LeadPassenger" type="s:string"/>   <s:attribute name="FreeText" type="s:string">     <s:annotation>       <s:documentation>Free text system dependant parameter - for SITA it is an alternative validator</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute TicketActionInfo/@Action

type	TicketActionType
properties	use  required
facets	Kind  Value  Annotation enumeration  Display enumeration  QuoteRefund enumeration  Refund enumeration  Void
annotation	documentation Action: Display - show ticket information QuoteRefund - show ticket and refund information Refund - refund ticket Void - void ticket
source	<s:attribute name="Action" type="TicketActionType" use="required">   <s:annotation>     <s:documentation>Action: Display - show ticket information QuoteRefund - show ticket and refund information Refund - refund ticket Void - void ticket</s:documentation>   </s:annotation> </s:attribute>

attribute TicketActionInfo/@TicketNumber

type	s:string
source	<s:attribute name="TicketNumber" type="s:string"/>

attribute TicketActionInfo/@EMDNumber

type	s:string
source	<s:attribute name="EMDNumber" type="s:string"/>

attribute TicketActionInfo/@BookingReference

type	s:string
annotation	documentation Mandatory for Display, QuoteRefund and Refund requests. For void ticket query record locator is optional.
source	<s:attribute name="BookingReference" type="s:string">   <s:annotation>     <s:documentation> Mandatory for Display, QuoteRefund and Refund requests. For void ticket query record locator is optional.</s:documentation>   </s:annotation> </s:attribute>

attribute TicketActionInfo/@CRS

type	CRSType
facets	Kind  Value  Annotation enumeration  1A documentation Amadeus enumeration  1G documentation Galileo enumeration  1H documentation Sirena2000 enumeration  1M documentation TAIS CRS enumeration  1N enumeration  1S documentation Sabre enumeration  S7 documentation SITA S7 enumeration  DP documentation Navitaire for DP enumeration  1Б documentation Charter gate enumeration  1Ц documentation Aviacenter charter gate enumeration  R3 documentation SITA R3 enumeration  A4 documentation TAIS CRS for A4 enumeration  XS documentation SITA CRS enumeration  NDC documentation NDC based CRS enumeration  MV documentation GRS-MixVel
annotation	documentation For void ticket query is mandatory, if BookingReference is not set.
source	<s:attribute name="CRS" type="CRSType">   <s:annotation>     <s:documentation>For void ticket query is mandatory, if BookingReference is not set.</s:documentation>   </s:annotation> </s:attribute>

attribute TicketActionInfo/@Office

type	restriction of s:string
facets	Kind  Value  Annotation minLength  3
annotation	documentation For void ticket query is mandatory, if BookingReference is not set.
source	<s:attribute name="Office">   <s:annotation>     <s:documentation>For void ticket query is mandatory, if BookingReference is not set.</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:minLength value="3"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute TicketActionInfo/@LeadPassenger

type	s:string
source	<s:attribute name="LeadPassenger" type="s:string"/>

attribute TicketActionInfo/@FreeText

type	s:string
annotation	documentation Free text system dependant parameter - for SITA it is an alternative validator
source	<s:attribute name="FreeText" type="s:string">   <s:annotation>     <s:documentation>Free text system dependant parameter - for SITA it is an alternative validator</s:documentation>   </s:annotation> </s:attribute>

element TicketActionInfo/RefundData

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Price FOPData
attributes	Name   Type   Use   Default   Fixed   Annotation RefundType   RefundExchangeType   required         documentation Refund type: Voluntary Involuntary QuoteSource   s:string            QuoteMethod   QuoteType            documentation Quote calculation method: Automatic Manual
source	<s:element name="RefundData" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Price" minOccurs="0">         <s:complexType>           <s:attribute name="Total" type="s:float" use="required"/>           <s:attribute name="Currency" type="s:string" use="required"/>           <s:attribute name="BaseFare" type="s:float" use="required"/>           <s:attribute name="EquivFare" type="s:float" use="required"/>           <s:attribute name="BaseCurrency" type="s:string" use="required"/>           <s:attribute name="Penalty" type="s:float" use="required"/>         </s:complexType>       </s:element>       <s:element name="FOPData" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="FOPItem" type="PaymentType" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>     <s:attribute name="RefundType" type="RefundExchangeType" use="required">       <s:annotation>         <s:documentation>Refund type: Voluntary Involuntary</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="QuoteSource" type="s:string"/>     <s:attribute name="QuoteMethod" type="QuoteType">       <s:annotation>         <s:documentation>Quote calculation method: Automatic Manual</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute TicketActionInfo/RefundData/@RefundType

type	RefundExchangeType
properties	use  required
facets	Kind  Value  Annotation enumeration  Voluntary enumeration  Involuntary enumeration  ExchgViaRefund enumeration  InvolIATA enumeration  NameChange enumeration  VolOnIncomplete enumeration  VolOnOverbook
annotation	documentation Refund type: Voluntary Involuntary
source	<s:attribute name="RefundType" type="RefundExchangeType" use="required">   <s:annotation>     <s:documentation>Refund type: Voluntary Involuntary</s:documentation>   </s:annotation> </s:attribute>

attribute TicketActionInfo/RefundData/@QuoteSource

type	s:string
source	<s:attribute name="QuoteSource" type="s:string"/>

attribute TicketActionInfo/RefundData/@QuoteMethod

type	QuoteType
facets	Kind  Value  Annotation enumeration  Automatic enumeration  Manual
annotation	documentation Quote calculation method: Automatic Manual
source	<s:attribute name="QuoteMethod" type="QuoteType">   <s:annotation>     <s:documentation>Quote calculation method: Automatic Manual</s:documentation>   </s:annotation> </s:attribute>

element TicketActionInfo/RefundData/Price

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:float   required         Currency   s:string   required         BaseFare   s:float   required         EquivFare   s:float   required         BaseCurrency   s:string   required         Penalty   s:float   required
source	<s:element name="Price" minOccurs="0">   <s:complexType>     <s:attribute name="Total" type="s:float" use="required"/>     <s:attribute name="Currency" type="s:string" use="required"/>     <s:attribute name="BaseFare" type="s:float" use="required"/>     <s:attribute name="EquivFare" type="s:float" use="required"/>     <s:attribute name="BaseCurrency" type="s:string" use="required"/>     <s:attribute name="Penalty" type="s:float" use="required"/>   </s:complexType> </s:element>

attribute TicketActionInfo/RefundData/Price/@Total

type	s:float
properties	use  required
source	<s:attribute name="Total" type="s:float" use="required"/>

attribute TicketActionInfo/RefundData/Price/@Currency

type	s:string
properties	use  required
source	<s:attribute name="Currency" type="s:string" use="required"/>

attribute TicketActionInfo/RefundData/Price/@BaseFare

type	s:float
properties	use  required
source	<s:attribute name="BaseFare" type="s:float" use="required"/>

attribute TicketActionInfo/RefundData/Price/@EquivFare

type	s:float
properties	use  required
source	<s:attribute name="EquivFare" type="s:float" use="required"/>

attribute TicketActionInfo/RefundData/Price/@BaseCurrency

type	s:string
properties	use  required
source	<s:attribute name="BaseCurrency" type="s:string" use="required"/>

attribute TicketActionInfo/RefundData/Price/@Penalty

type	s:float
properties	use  required
source	<s:attribute name="Penalty" type="s:float" use="required"/>

element TicketActionInfo/RefundData/FOPData

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	FOPItem
source	<s:element name="FOPData" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="FOPItem" type="PaymentType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element TicketActionInfo/RefundData/FOPData/FOPItem

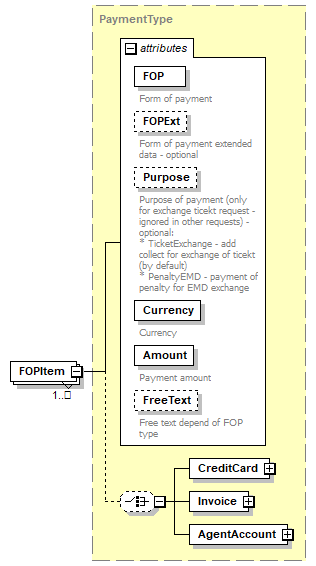

diagram
type	PaymentType
properties	minOcc  1 maxOcc  unbounded content  complex
children	CreditCard Invoice AgentAccount
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPType   required         documentation Form of payment FOPExt   s:string            documentation Form of payment extended data - optional Purpose   derived by: s:string            documentation Purpose of payment (only for exchange ticekt request - ignored in other requests) - optional: * TicketExchange - add collect for exchange of ticekt (by default) * PenaltyEMD - payment of penalty for EMD exchange Currency   s:string   required         documentation Currency Amount   s:decimal   required         documentation Payment amount FreeText   s:string            documentation Free text depend of FOP type
source	<s:element name="FOPItem" type="PaymentType" maxOccurs="unbounded"/>
