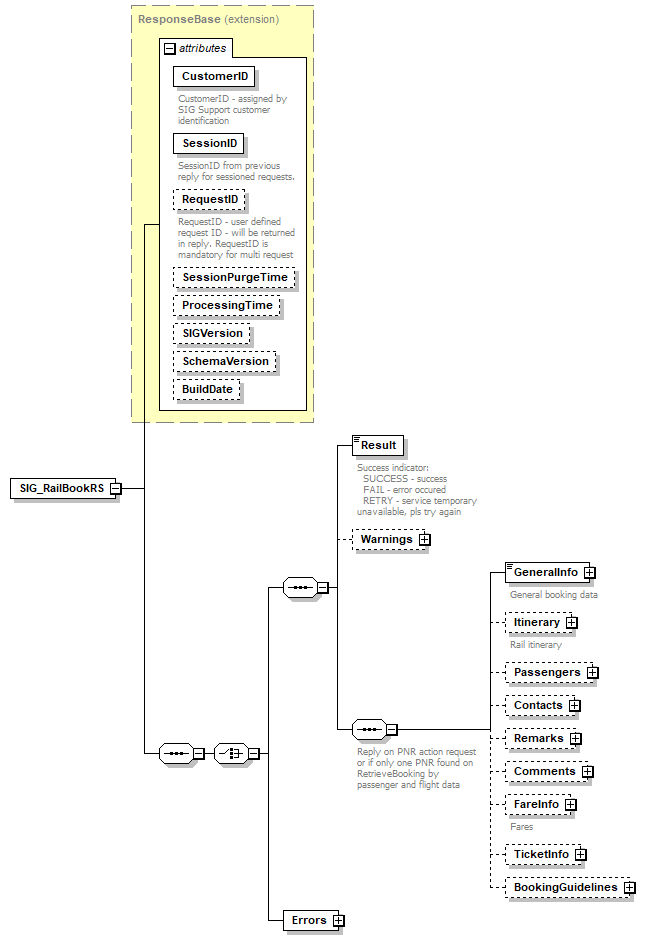

element SIG_RailBookRS

diagram
type	extension of ResponseBase
properties	content  complex
children	Result Warnings GeneralInfo Itinerary Passengers Contacts Remarks Comments FareInfo TicketInfo BookingGuidelines Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
source	<s:element name="SIG_RailBookRS">   <s:complexType>     <s:complexContent>       <s:extension base="ResponseBase">         <s:sequence>           <s:choice>             <s:sequence>               <s:element name="Result" type="ResultType">                 <s:annotation>                   <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>                 </s:annotation>               </s:element>               <s:element name="Warnings" type="WarningsType" minOccurs="0"/>               <s:sequence>                 <s:annotation>                   <s:documentation>Reply on PNR action request or if only one PNR found on RetrieveBooking by passenger and flight data</s:documentation>                 </s:annotation>                 <s:element name="GeneralInfo" type="GeneralInfoRSType">                   <s:annotation>                     <s:documentation>General booking data</s:documentation>                   </s:annotation>                 </s:element>                 <s:element name="Itinerary" type="RailItineraryType" minOccurs="0">                   <s:annotation>                     <s:documentation>Rail itinerary</s:documentation>                   </s:annotation>                 </s:element>                 <s:element name="Passengers" type="PassengersType" minOccurs="0"/>                 <s:element name="Contacts" type="ContactsType" minOccurs="0"/>                 <s:element name="Remarks" minOccurs="0">                   <s:complexType>                     <s:sequence>                       <s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>                     </s:sequence>                   </s:complexType>                 </s:element>                 <s:element name="Comments" minOccurs="0">                   <s:complexType>                     <s:sequence>                       <s:element name="Comment" type="CommentType" maxOccurs="unbounded"/>                     </s:sequence>                   </s:complexType>                 </s:element>                 <s:element name="FareInfo" type="FareInfoType" minOccurs="0">                   <s:annotation>                     <s:documentation>Fares</s:documentation>                   </s:annotation>                 </s:element>                 <s:element name="TicketInfo" minOccurs="0">                   <s:complexType>                     <s:sequence>                       <s:element name="Ticket" maxOccurs="unbounded">                         <s:complexType>                           <s:sequence>                             <s:element name="TicketData" minOccurs="0">                               <s:complexType>                                 <s:sequence>                                   <s:element name="IssueData">                                     <s:complexType>                                       <s:attribute name="IssueDate" type="s:date" use="required">                                         <s:annotation>                                           <s:documentation>Date of issue</s:documentation>                                         </s:annotation>                                       </s:attribute>                                       <s:attribute name="IssueCRS" type="CRSType" use="required">                                         <s:annotation>                                           <s:documentation>Issuing CRS code</s:documentation>                                         </s:annotation>                                       </s:attribute>                                       <s:attribute name="IssueRLOC" type="s:string">                                         <s:annotation>                                           <s:documentation>Record locator in issuing CRS</s:documentation>                                         </s:annotation>                                       </s:attribute>                                       <s:attribute name="AirlineRLOC" type="s:string">                                         <s:annotation>                                           <s:documentation>Record locator of validating carrier</s:documentation>                                         </s:annotation>                                       </s:attribute>                                       <s:attribute name="OriginalIssue" type="s:string">                                         <s:annotation>                                           <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>                                         </s:annotation>                                       </s:attribute>                                       <s:attribute name="InExchangeFor" type="s:string">                                         <s:annotation>                                           <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>                                         </s:annotation>                                       </s:attribute>                                     </s:complexType>                                   </s:element>                                   <s:element name="AgencyData">                                     <s:complexType>                                       <s:attribute name="IATANumber" type="s:string" use="required"/>                                       <s:attribute name="AgencyName" type="s:string" use="required"/>                                       <s:attribute name="LocationCode" type="s:string" use="required"/>                                       <s:attribute name="LocationName" type="s:string" use="required"/>                                     </s:complexType>                                   </s:element>                                   <s:element name="Passenger" type="PassengerType"/>                                   <s:element name="Contact" type="ContactType" minOccurs="0">                                     <s:annotation>                                       <s:documentation>Passenger contacts</s:documentation>                                     </s:annotation>                                   </s:element>                                   <s:element name="Itinerary" type="RailCouponsItnType">                                     <s:annotation>                                       <s:documentation>Flight coupons</s:documentation>                                     </s:annotation>                                   </s:element>                                   <s:element name="Price" type="PriceType">                                     <s:annotation>                                       <s:documentation>Ticket price</s:documentation>                                     </s:annotation>                                   </s:element>                                   <s:element name="Taxes" minOccurs="0">                                     <s:annotation>                                       <s:documentation>Ticket tax breakdown</s:documentation>                                     </s:annotation>                                     <s:complexType>                                       <s:sequence>                                         <s:element name="Tax" maxOccurs="unbounded">                                           <s:annotation>                                             <s:documentation>Tax information</s:documentation>                                           </s:annotation>                                           <s:complexType>                                             <s:attribute name="Amount" type="s:decimal" use="required">                                               <s:annotation>                                                 <s:documentation>Tax amount</s:documentation>                                               </s:annotation>                                             </s:attribute>                                             <s:attribute name="TicketCode" type="s:string" use="required">                                               <s:annotation>                                                 <s:documentation>Tax Ticket Code</s:documentation>                                               </s:annotation>                                             </s:attribute>                                           </s:complexType>                                         </s:element>                                       </s:sequence>                                     </s:complexType>                                   </s:element>                                   <s:element name="FareCalculation" type="s:string">                                     <s:annotation>                                       <s:documentation>Fare Calculation string</s:documentation>                                     </s:annotation>                                   </s:element>                                   <s:element name="FOPData">                                     <s:annotation>                                       <s:documentation>Form of payment data</s:documentation>                                     </s:annotation>                                     <s:complexType>                                       <s:sequence>                                         <s:element name="FOPItem" maxOccurs="unbounded">                                           <s:complexType>                                             <s:attribute name="FOP" type="FOPType" use="required">                                               <s:annotation>                                                 <s:documentation>FOP code</s:documentation>                                               </s:annotation>                                             </s:attribute>                                             <s:attribute name="Amount" type="s:decimal"/>                                             <s:attribute name="Text" type="s:string"/>                                           </s:complexType>                                         </s:element>                                       </s:sequence>                                     </s:complexType>                                   </s:element>                                   <s:element name="Endorsements" minOccurs="0">                                     <s:annotation>                                       <s:documentation>Ticket endorsements</s:documentation>                                     </s:annotation>                                     <s:complexType>                                       <s:sequence>                                         <s:element name="Endorsement" type="s:string" minOccurs="0" maxOccurs="unbounded"/>                                       </s:sequence>                                     </s:complexType>                                   </s:element>                                   <s:element name="TourCode" type="s:string" minOccurs="0">                                     <s:annotation>                                       <s:documentation>Tour code</s:documentation>                                     </s:annotation>                                   </s:element>                                 </s:sequence>                               </s:complexType>                             </s:element>                             <s:element name="ItineraryReceipt" type="s:string" minOccurs="0"/>                             <s:element name="ETicket" type="s:string" minOccurs="0">                               <s:annotation>                                 <s:documentation>ETicket in Agency accepted form encoded in base64</s:documentation>                               </s:annotation>                             </s:element>                           </s:sequence>                           <s:attribute name="TicketRef" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Reference to this item</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="PaxRef" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Passenger reference</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="ReservationRefs" type="strlist" use="required">                             <s:annotation>                               <s:documentation>References to segment reservations</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="FareRef" type="s:string">                             <s:annotation>                               <s:documentation>Fare reference</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="StockProvider" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="TicketNumber" type="s:string" use="optional">                             <s:annotation>                               <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="ValidatingCarrier" type="s:string" use="optional">                             <s:annotation>                               <s:documentation>Validating carrier</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attribute name="AcctgCode" type="s:string" use="optional">                             <s:annotation>                               <s:documentation>Validating carrier's accounting code</s:documentation>                             </s:annotation>                           </s:attribute>                         </s:complexType>                       </s:element>                     </s:sequence>                   </s:complexType>                 </s:element>                 <s:element name="BookingGuidelines" type="BookingGuidelinesType" minOccurs="0"/>               </s:sequence>             </s:sequence>             <s:element name="Errors" type="ErrorsType"/>           </s:choice>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_RailBookRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

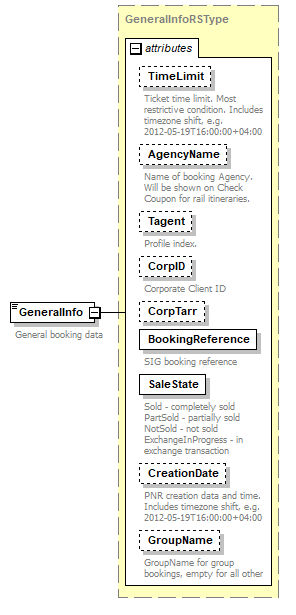

element SIG_RailBookRS/GeneralInfo

diagram
type	GeneralInfoRSType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TimeLimit   s:dateTime   optional         documentation Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00 AgencyName   s:string            documentation Name of booking Agency. Will be shown on Check Coupon for rail itineraries. Tagent   s:string            documentation Profile index. CorpID   s:string            documentation Corporate Client ID CorpTarr   s:string            BookingReference   s:string   required         documentation SIG booking reference SaleState   derived by: s:string   required         documentation Sold - completely sold PartSold - partially sold NotSold - not sold ExchangeInProgress - in exchange transaction CreationDate   s:dateTime   optional         documentation PNR creation data and time. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00 GroupName   s:string   optional         documentation GroupName for group bookings, empty for all other
annotation	documentation General booking data
source	<s:element name="GeneralInfo" type="GeneralInfoRSType">   <s:annotation>     <s:documentation>General booking data</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/Itinerary

diagram
type	RailItineraryType
properties	minOcc  0 maxOcc  1 content  complex
children	RailSegment
annotation	documentation Rail itinerary
source	<s:element name="Itinerary" type="RailItineraryType" minOccurs="0">   <s:annotation>     <s:documentation>Rail itinerary</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/Passengers

diagram
type	PassengersType
properties	minOcc  0 maxOcc  1 content  complex
children	Passenger
source	<s:element name="Passengers" type="PassengersType" minOccurs="0"/>

element SIG_RailBookRS/Contacts

diagram
type	ContactsType
properties	minOcc  0 maxOcc  1 content  complex
children	Contact
source	<s:element name="Contacts" type="ContactsType" minOccurs="0"/>

element SIG_RailBookRS/Remarks

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Remark
source	<s:element name="Remarks" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

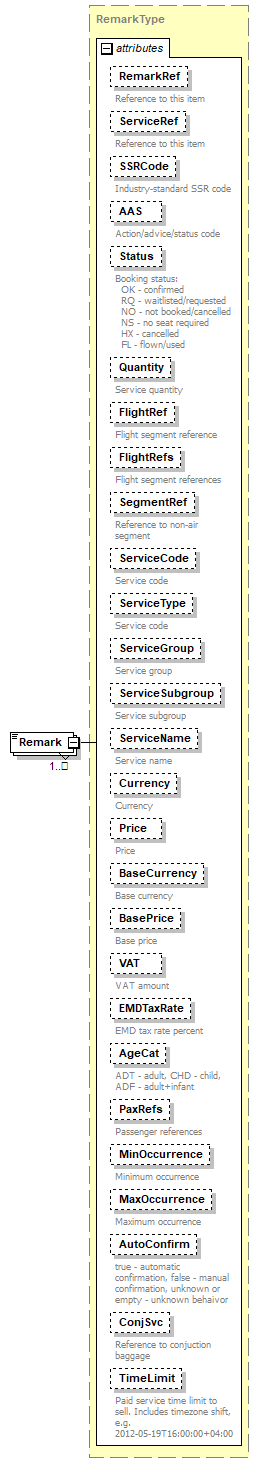

element SIG_RailBookRS/Remarks/Remark

diagram
type	RemarkType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation RemarkRef   derived by: s:string            documentation Reference to this item ServiceRef   derived by: s:string            documentation Reference to this item SSRCode   derived by: s:string            documentation Industry-standard SSR code AAS   derived by: s:string            documentation Action/advice/status code Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   FL - flown/used Quantity   s:int            documentation Service quantity FlightRef   s:string            documentation Flight segment reference FlightRefs   strlist            documentation Flight segment references SegmentRef   s:string            documentation Reference to non-air segment ServiceCode   s:string            documentation Service code ServiceType   s:string            documentation Service code ServiceGroup   s:string            documentation Service group ServiceSubgroup   s:string            documentation Service subgroup ServiceName   s:string            documentation Service name Currency   s:string            documentation Currency Price   derived by: s:decimal            documentation Price BaseCurrency   s:string            documentation Base currency BasePrice   derived by: s:decimal            documentation Base price VAT   derived by: s:decimal            documentation VAT amount EMDTaxRate   s:decimal            documentation EMD tax rate percent AgeCat   strlist            documentation ADT - adult, CHD - child, ADF - adult+infant PaxRefs   strlist            documentation Passenger references MinOccurrence   s:decimal            documentation Minimum occurrence MaxOccurrence   s:decimal            documentation Maximum occurrence AutoConfirm   s:string            documentation true - automatic confirmation, false - manual confirmation, unknown or empty - unknown behaivor ConjSvc   s:string            documentation Reference to conjuction baggage TimeLimit   s:dateTime   optional         documentation Paid service time limit to sell. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00
source	<s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>

element SIG_RailBookRS/Comments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Comment
source	<s:element name="Comments" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Comment" type="CommentType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

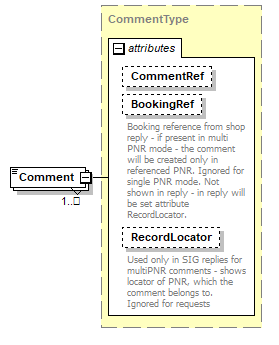

element SIG_RailBookRS/Comments/Comment

diagram
type	CommentType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CommentRef   s:string            BookingRef   s:string   optional         documentation Booking reference from shop reply - if present in multi PNR mode - the comment will be created only in referenced PNR. Ignored for single PNR mode. Not shown in reply - in reply will be set attribute RecordLocator. RecordLocator   s:string   optional         documentation Used only in SIG replies for multiPNR comments - shows locator of PNR, which the comment belongs to. Ignored for requests
source	<s:element name="Comment" type="CommentType" maxOccurs="unbounded"/>

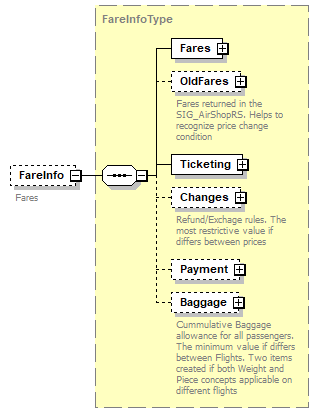

element SIG_RailBookRS/FareInfo

diagram
type	FareInfoType
properties	minOcc  0 maxOcc  1 content  complex
children	Fares OldFares Ticketing Changes Payment Baggage
annotation	documentation Fares
source	<s:element name="FareInfo" type="FareInfoType" minOccurs="0">   <s:annotation>     <s:documentation>Fares</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/TicketInfo

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Ticket
source	<s:element name="TicketInfo" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Ticket" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="TicketData" minOccurs="0">               <s:complexType>                 <s:sequence>                   <s:element name="IssueData">                     <s:complexType>                       <s:attribute name="IssueDate" type="s:date" use="required">                         <s:annotation>                           <s:documentation>Date of issue</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="IssueCRS" type="CRSType" use="required">                         <s:annotation>                           <s:documentation>Issuing CRS code</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="IssueRLOC" type="s:string">                         <s:annotation>                           <s:documentation>Record locator in issuing CRS</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="AirlineRLOC" type="s:string">                         <s:annotation>                           <s:documentation>Record locator of validating carrier</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="OriginalIssue" type="s:string">                         <s:annotation>                           <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="InExchangeFor" type="s:string">                         <s:annotation>                           <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>                         </s:annotation>                       </s:attribute>                     </s:complexType>                   </s:element>                   <s:element name="AgencyData">                     <s:complexType>                       <s:attribute name="IATANumber" type="s:string" use="required"/>                       <s:attribute name="AgencyName" type="s:string" use="required"/>                       <s:attribute name="LocationCode" type="s:string" use="required"/>                       <s:attribute name="LocationName" type="s:string" use="required"/>                     </s:complexType>                   </s:element>                   <s:element name="Passenger" type="PassengerType"/>                   <s:element name="Contact" type="ContactType" minOccurs="0">                     <s:annotation>                       <s:documentation>Passenger contacts</s:documentation>                     </s:annotation>                   </s:element>                   <s:element name="Itinerary" type="RailCouponsItnType">                     <s:annotation>                       <s:documentation>Flight coupons</s:documentation>                     </s:annotation>                   </s:element>                   <s:element name="Price" type="PriceType">                     <s:annotation>                       <s:documentation>Ticket price</s:documentation>                     </s:annotation>                   </s:element>                   <s:element name="Taxes" minOccurs="0">                     <s:annotation>                       <s:documentation>Ticket tax breakdown</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:sequence>                         <s:element name="Tax" maxOccurs="unbounded">                           <s:annotation>                             <s:documentation>Tax information</s:documentation>                           </s:annotation>                           <s:complexType>                             <s:attribute name="Amount" type="s:decimal" use="required">                               <s:annotation>                                 <s:documentation>Tax amount</s:documentation>                               </s:annotation>                             </s:attribute>                             <s:attribute name="TicketCode" type="s:string" use="required">                               <s:annotation>                                 <s:documentation>Tax Ticket Code</s:documentation>                               </s:annotation>                             </s:attribute>                           </s:complexType>                         </s:element>                       </s:sequence>                     </s:complexType>                   </s:element>                   <s:element name="FareCalculation" type="s:string">                     <s:annotation>                       <s:documentation>Fare Calculation string</s:documentation>                     </s:annotation>                   </s:element>                   <s:element name="FOPData">                     <s:annotation>                       <s:documentation>Form of payment data</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:sequence>                         <s:element name="FOPItem" maxOccurs="unbounded">                           <s:complexType>                             <s:attribute name="FOP" type="FOPType" use="required">                               <s:annotation>                                 <s:documentation>FOP code</s:documentation>                               </s:annotation>                             </s:attribute>                             <s:attribute name="Amount" type="s:decimal"/>                             <s:attribute name="Text" type="s:string"/>                           </s:complexType>                         </s:element>                       </s:sequence>                     </s:complexType>                   </s:element>                   <s:element name="Endorsements" minOccurs="0">                     <s:annotation>                       <s:documentation>Ticket endorsements</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:sequence>                         <s:element name="Endorsement" type="s:string" minOccurs="0" maxOccurs="unbounded"/>                       </s:sequence>                     </s:complexType>                   </s:element>                   <s:element name="TourCode" type="s:string" minOccurs="0">                     <s:annotation>                       <s:documentation>Tour code</s:documentation>                     </s:annotation>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>             <s:element name="ItineraryReceipt" type="s:string" minOccurs="0"/>             <s:element name="ETicket" type="s:string" minOccurs="0">               <s:annotation>                 <s:documentation>ETicket in Agency accepted form encoded in base64</s:documentation>               </s:annotation>             </s:element>           </s:sequence>           <s:attribute name="TicketRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Reference to this item</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="PaxRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Passenger reference</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="ReservationRefs" type="strlist" use="required">             <s:annotation>               <s:documentation>References to segment reservations</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="FareRef" type="s:string">             <s:annotation>               <s:documentation>Fare reference</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="StockProvider" type="s:string" use="required">             <s:annotation>               <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="TicketNumber" type="s:string" use="optional">             <s:annotation>               <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="ValidatingCarrier" type="s:string" use="optional">             <s:annotation>               <s:documentation>Validating carrier</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="AcctgCode" type="s:string" use="optional">             <s:annotation>               <s:documentation>Validating carrier's accounting code</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

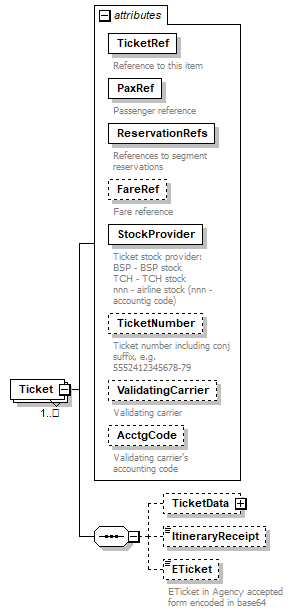

element SIG_RailBookRS/TicketInfo/Ticket

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	TicketData ItineraryReceipt ETicket
attributes	Name   Type   Use   Default   Fixed   Annotation TicketRef   s:string   required         documentation Reference to this item PaxRef   s:string   required         documentation Passenger reference ReservationRefs   strlist   required         documentation References to segment reservations FareRef   s:string            documentation Fare reference StockProvider   s:string   required         documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code) TicketNumber   s:string   optional         documentation Ticket number including conj suffix, e.g. 5552412345678-79 ValidatingCarrier   s:string   optional         documentation Validating carrier AcctgCode   s:string   optional         documentation Validating carrier's accounting code
source	<s:element name="Ticket" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="TicketData" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="IssueData">               <s:complexType>                 <s:attribute name="IssueDate" type="s:date" use="required">                   <s:annotation>                     <s:documentation>Date of issue</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="IssueCRS" type="CRSType" use="required">                   <s:annotation>                     <s:documentation>Issuing CRS code</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="IssueRLOC" type="s:string">                   <s:annotation>                     <s:documentation>Record locator in issuing CRS</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="AirlineRLOC" type="s:string">                   <s:annotation>                     <s:documentation>Record locator of validating carrier</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="OriginalIssue" type="s:string">                   <s:annotation>                     <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="InExchangeFor" type="s:string">                   <s:annotation>                     <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>                   </s:annotation>                 </s:attribute>               </s:complexType>             </s:element>             <s:element name="AgencyData">               <s:complexType>                 <s:attribute name="IATANumber" type="s:string" use="required"/>                 <s:attribute name="AgencyName" type="s:string" use="required"/>                 <s:attribute name="LocationCode" type="s:string" use="required"/>                 <s:attribute name="LocationName" type="s:string" use="required"/>               </s:complexType>             </s:element>             <s:element name="Passenger" type="PassengerType"/>             <s:element name="Contact" type="ContactType" minOccurs="0">               <s:annotation>                 <s:documentation>Passenger contacts</s:documentation>               </s:annotation>             </s:element>             <s:element name="Itinerary" type="RailCouponsItnType">               <s:annotation>                 <s:documentation>Flight coupons</s:documentation>               </s:annotation>             </s:element>             <s:element name="Price" type="PriceType">               <s:annotation>                 <s:documentation>Ticket price</s:documentation>               </s:annotation>             </s:element>             <s:element name="Taxes" minOccurs="0">               <s:annotation>                 <s:documentation>Ticket tax breakdown</s:documentation>               </s:annotation>               <s:complexType>                 <s:sequence>                   <s:element name="Tax" maxOccurs="unbounded">                     <s:annotation>                       <s:documentation>Tax information</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:attribute name="Amount" type="s:decimal" use="required">                         <s:annotation>                           <s:documentation>Tax amount</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="TicketCode" type="s:string" use="required">                         <s:annotation>                           <s:documentation>Tax Ticket Code</s:documentation>                         </s:annotation>                       </s:attribute>                     </s:complexType>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>             <s:element name="FareCalculation" type="s:string">               <s:annotation>                 <s:documentation>Fare Calculation string</s:documentation>               </s:annotation>             </s:element>             <s:element name="FOPData">               <s:annotation>                 <s:documentation>Form of payment data</s:documentation>               </s:annotation>               <s:complexType>                 <s:sequence>                   <s:element name="FOPItem" maxOccurs="unbounded">                     <s:complexType>                       <s:attribute name="FOP" type="FOPType" use="required">                         <s:annotation>                           <s:documentation>FOP code</s:documentation>                         </s:annotation>                       </s:attribute>                       <s:attribute name="Amount" type="s:decimal"/>                       <s:attribute name="Text" type="s:string"/>                     </s:complexType>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>             <s:element name="Endorsements" minOccurs="0">               <s:annotation>                 <s:documentation>Ticket endorsements</s:documentation>               </s:annotation>               <s:complexType>                 <s:sequence>                   <s:element name="Endorsement" type="s:string" minOccurs="0" maxOccurs="unbounded"/>                 </s:sequence>               </s:complexType>             </s:element>             <s:element name="TourCode" type="s:string" minOccurs="0">               <s:annotation>                 <s:documentation>Tour code</s:documentation>               </s:annotation>             </s:element>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="ItineraryReceipt" type="s:string" minOccurs="0"/>       <s:element name="ETicket" type="s:string" minOccurs="0">         <s:annotation>           <s:documentation>ETicket in Agency accepted form encoded in base64</s:documentation>         </s:annotation>       </s:element>     </s:sequence>     <s:attribute name="TicketRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Reference to this item</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="PaxRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Passenger reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ReservationRefs" type="strlist" use="required">       <s:annotation>         <s:documentation>References to segment reservations</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="FareRef" type="s:string">       <s:annotation>         <s:documentation>Fare reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="StockProvider" type="s:string" use="required">       <s:annotation>         <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="TicketNumber" type="s:string" use="optional">       <s:annotation>         <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ValidatingCarrier" type="s:string" use="optional">       <s:annotation>         <s:documentation>Validating carrier</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="AcctgCode" type="s:string" use="optional">       <s:annotation>         <s:documentation>Validating carrier's accounting code</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_RailBookRS/TicketInfo/Ticket/@TicketRef

type	s:string
properties	use  required
annotation	documentation Reference to this item
source	<s:attribute name="TicketRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Reference to this item</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@PaxRef

type	s:string
properties	use  required
annotation	documentation Passenger reference
source	<s:attribute name="PaxRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Passenger reference</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@ReservationRefs

type	strlist
properties	use  required
annotation	documentation References to segment reservations
source	<s:attribute name="ReservationRefs" type="strlist" use="required">   <s:annotation>     <s:documentation>References to segment reservations</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@FareRef

type	s:string
annotation	documentation Fare reference
source	<s:attribute name="FareRef" type="s:string">   <s:annotation>     <s:documentation>Fare reference</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@StockProvider

type	s:string
properties	use  required
annotation	documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)
source	<s:attribute name="StockProvider" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@TicketNumber

type	s:string
properties	use  optional
annotation	documentation Ticket number including conj suffix, e.g. 5552412345678-79
source	<s:attribute name="TicketNumber" type="s:string" use="optional">   <s:annotation>     <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@ValidatingCarrier

type	s:string
properties	use  optional
annotation	documentation Validating carrier
source	<s:attribute name="ValidatingCarrier" type="s:string" use="optional">   <s:annotation>     <s:documentation>Validating carrier</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/@AcctgCode

type	s:string
properties	use  optional
annotation	documentation Validating carrier's accounting code
source	<s:attribute name="AcctgCode" type="s:string" use="optional">   <s:annotation>     <s:documentation>Validating carrier's accounting code</s:documentation>   </s:annotation> </s:attribute>

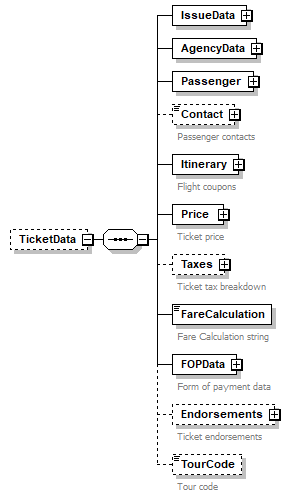

element SIG_RailBookRS/TicketInfo/Ticket/TicketData

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	IssueData AgencyData Passenger Contact Itinerary Price Taxes FareCalculation FOPData Endorsements TourCode
source	<s:element name="TicketData" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="IssueData">         <s:complexType>           <s:attribute name="IssueDate" type="s:date" use="required">             <s:annotation>               <s:documentation>Date of issue</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="IssueCRS" type="CRSType" use="required">             <s:annotation>               <s:documentation>Issuing CRS code</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="IssueRLOC" type="s:string">             <s:annotation>               <s:documentation>Record locator in issuing CRS</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="AirlineRLOC" type="s:string">             <s:annotation>               <s:documentation>Record locator of validating carrier</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="OriginalIssue" type="s:string">             <s:annotation>               <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="InExchangeFor" type="s:string">             <s:annotation>               <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>       <s:element name="AgencyData">         <s:complexType>           <s:attribute name="IATANumber" type="s:string" use="required"/>           <s:attribute name="AgencyName" type="s:string" use="required"/>           <s:attribute name="LocationCode" type="s:string" use="required"/>           <s:attribute name="LocationName" type="s:string" use="required"/>         </s:complexType>       </s:element>       <s:element name="Passenger" type="PassengerType"/>       <s:element name="Contact" type="ContactType" minOccurs="0">         <s:annotation>           <s:documentation>Passenger contacts</s:documentation>         </s:annotation>       </s:element>       <s:element name="Itinerary" type="RailCouponsItnType">         <s:annotation>           <s:documentation>Flight coupons</s:documentation>         </s:annotation>       </s:element>       <s:element name="Price" type="PriceType">         <s:annotation>           <s:documentation>Ticket price</s:documentation>         </s:annotation>       </s:element>       <s:element name="Taxes" minOccurs="0">         <s:annotation>           <s:documentation>Ticket tax breakdown</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="Tax" maxOccurs="unbounded">               <s:annotation>                 <s:documentation>Tax information</s:documentation>               </s:annotation>               <s:complexType>                 <s:attribute name="Amount" type="s:decimal" use="required">                   <s:annotation>                     <s:documentation>Tax amount</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="TicketCode" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Tax Ticket Code</s:documentation>                   </s:annotation>                 </s:attribute>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="FareCalculation" type="s:string">         <s:annotation>           <s:documentation>Fare Calculation string</s:documentation>         </s:annotation>       </s:element>       <s:element name="FOPData">         <s:annotation>           <s:documentation>Form of payment data</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="FOPItem" maxOccurs="unbounded">               <s:complexType>                 <s:attribute name="FOP" type="FOPType" use="required">                   <s:annotation>                     <s:documentation>FOP code</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="Amount" type="s:decimal"/>                 <s:attribute name="Text" type="s:string"/>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="Endorsements" minOccurs="0">         <s:annotation>           <s:documentation>Ticket endorsements</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="Endorsement" type="s:string" minOccurs="0" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="TourCode" type="s:string" minOccurs="0">         <s:annotation>           <s:documentation>Tour code</s:documentation>         </s:annotation>       </s:element>     </s:sequence>   </s:complexType> </s:element>

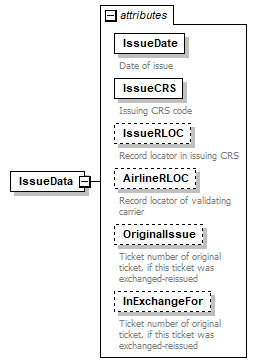

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IssueDate   s:date   required         documentation Date of issue IssueCRS   CRSType   required         documentation Issuing CRS code IssueRLOC   s:string            documentation Record locator in issuing CRS AirlineRLOC   s:string            documentation Record locator of validating carrier OriginalIssue   s:string            documentation Ticket number of original ticket, if this ticket was exchanged-reissued InExchangeFor   s:string            documentation Ticket number of original ticket, if this ticket was exchanged-reissued
source	<s:element name="IssueData">   <s:complexType>     <s:attribute name="IssueDate" type="s:date" use="required">       <s:annotation>         <s:documentation>Date of issue</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="IssueCRS" type="CRSType" use="required">       <s:annotation>         <s:documentation>Issuing CRS code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="IssueRLOC" type="s:string">       <s:annotation>         <s:documentation>Record locator in issuing CRS</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="AirlineRLOC" type="s:string">       <s:annotation>         <s:documentation>Record locator of validating carrier</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="OriginalIssue" type="s:string">       <s:annotation>         <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="InExchangeFor" type="s:string">       <s:annotation>         <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData/@IssueDate

type	s:date
properties	use  required
annotation	documentation Date of issue
source	<s:attribute name="IssueDate" type="s:date" use="required">   <s:annotation>     <s:documentation>Date of issue</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData/@IssueCRS

type	CRSType
properties	use  required
facets	Kind  Value  Annotation enumeration  1A documentation Amadeus enumeration  1G documentation Galileo enumeration  1H documentation Sirena2000 enumeration  1M documentation TAIS CRS enumeration  1N enumeration  1S documentation Sabre enumeration  S7 documentation SITA S7 enumeration  DP documentation Navitaire for DP enumeration  1Б documentation Charter gate enumeration  1Ц documentation Aviacenter charter gate enumeration  R3 documentation SITA R3 enumeration  A4 documentation TAIS CRS for A4 enumeration  XS documentation SITA CRS enumeration  NDC documentation NDC based CRS enumeration  MV documentation GRS-MixVel
annotation	documentation Issuing CRS code
source	<s:attribute name="IssueCRS" type="CRSType" use="required">   <s:annotation>     <s:documentation>Issuing CRS code</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData/@IssueRLOC

type	s:string
annotation	documentation Record locator in issuing CRS
source	<s:attribute name="IssueRLOC" type="s:string">   <s:annotation>     <s:documentation>Record locator in issuing CRS</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData/@AirlineRLOC

type	s:string
annotation	documentation Record locator of validating carrier
source	<s:attribute name="AirlineRLOC" type="s:string">   <s:annotation>     <s:documentation>Record locator of validating carrier</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData/@OriginalIssue

type	s:string
annotation	documentation Ticket number of original ticket, if this ticket was exchanged-reissued
source	<s:attribute name="OriginalIssue" type="s:string">   <s:annotation>     <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/IssueData/@InExchangeFor

type	s:string
annotation	documentation Ticket number of original ticket, if this ticket was exchanged-reissued
source	<s:attribute name="InExchangeFor" type="s:string">   <s:annotation>     <s:documentation>Ticket number of original ticket, if this ticket was exchanged-reissued</s:documentation>   </s:annotation> </s:attribute>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/AgencyData

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IATANumber   s:string   required         AgencyName   s:string   required         LocationCode   s:string   required         LocationName   s:string   required
source	<s:element name="AgencyData">   <s:complexType>     <s:attribute name="IATANumber" type="s:string" use="required"/>     <s:attribute name="AgencyName" type="s:string" use="required"/>     <s:attribute name="LocationCode" type="s:string" use="required"/>     <s:attribute name="LocationName" type="s:string" use="required"/>   </s:complexType> </s:element>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/AgencyData/@IATANumber

type	s:string
properties	use  required
source	<s:attribute name="IATANumber" type="s:string" use="required"/>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/AgencyData/@AgencyName

type	s:string
properties	use  required
source	<s:attribute name="AgencyName" type="s:string" use="required"/>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/AgencyData/@LocationCode

type	s:string
properties	use  required
source	<s:attribute name="LocationCode" type="s:string" use="required"/>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/AgencyData/@LocationName

type	s:string
properties	use  required
source	<s:attribute name="LocationName" type="s:string" use="required"/>

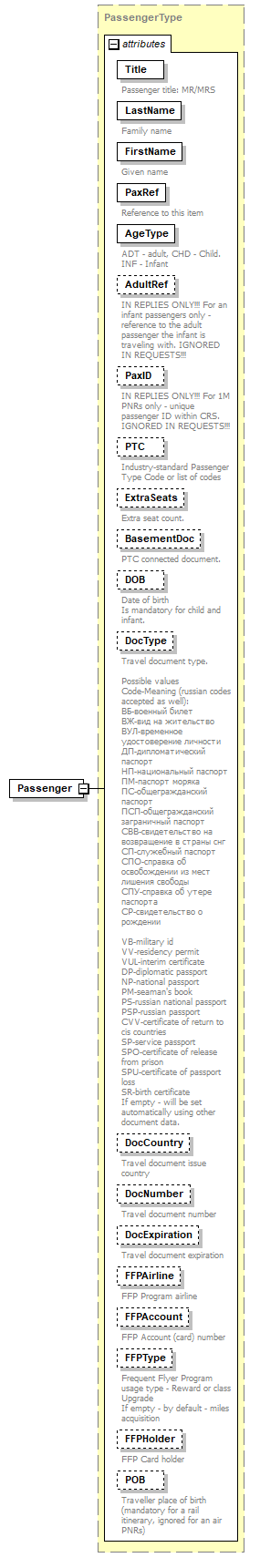

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Passenger

diagram
type	PassengerType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Title   derived by: s:string   required         documentation Passenger title: MR/MRS LastName   derived by: s:string   required         documentation Family name FirstName   s:string   required         documentation Given name PaxRef   s:string   required         documentation Reference to this item AgeType   AgeCatType   required         documentation ADT - adult, CHD - Child. INF - Infant AdultRef   s:string            documentation IN REPLIES ONLY!!! For an infant passengers only - reference to the adult passenger the infant is traveling with. IGNORED IN REQUESTS!!! PaxID   s:string            documentation IN REPLIES ONLY!!! For 1M PNRs only - unique passenger ID within CRS. IGNORED IN REQUESTS!!! PTC   strlist            documentation Industry-standard Passenger Type Code or list of codes ExtraSeats   s:positiveInteger   optional         documentation Extra seat count. BasementDoc   s:string   optional         documentation PTC connected document. DOB   s:date            documentation Date of birth Is mandatory for child and infant. DocType   s:string   optional         documentation Travel document type. Possible values Code-Meaning (russian codes accepted as well): ВБ-военный билет ВЖ-вид на жительство ВУЛ-временное удостоверение личности ДП-дипломатический паспорт НП-национальный паспорт ПМ-паспорт моряка ПС-общегражданский паспорт ПСП-общегражданский заграничный паспорт СВВ-свидетельство на возвращение в страны снг СП-служебный паспорт СПО-справка об освобождении из мест лишения свободы СПУ-справка об утере паспорта СР-свидетельство о рождении VB-military id VV-residency permit VUL-interim certificate DP-diplomatic passport NP-national passport PM-seaman's book PS-russian national passport PSP-russian passport CVV-certificate of return to cis countries SP-service passport SPO-certificate of release from prison SPU-certificate of passport loss SR-birth certificate If empty - will be set automatically using other document data. DocCountry   derived by: s:string            documentation Travel document issue country DocNumber   s:string   optional         documentation Travel document number DocExpiration   s:date            documentation Travel document expiration FFPAirline   s:string   optional         documentation FFP Program airline FFPAccount   s:string   optional         documentation FFP Account (card) number FFPType   derived by: s:string   optional         documentation Frequent Flyer Program usage type - Reward or class Upgrade If empty - by default - miles acquisition FFPHolder   s:string   optional         documentation FFP Card holder POB   s:string   optional         documentation Traveller place of birth (mandatory for a rail itinerary, ignored for an air PNRs)
source	<s:element name="Passenger" type="PassengerType"/>

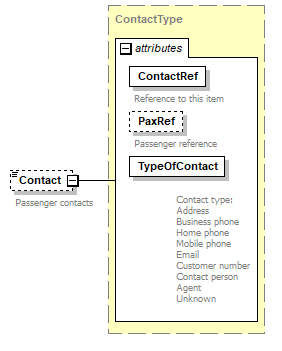

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Contact

diagram
type	ContactType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ContactRef   s:string   required         documentation Reference to this item PaxRef   s:string            documentation Passenger reference TypeOfContact   derived by: s:string   required         documentation               Contact type:               Address               Business phone               Home phone               Mobile phone               Email               Customer number               Contact person               Agent               Unknown
annotation	documentation Passenger contacts
source	<s:element name="Contact" type="ContactType" minOccurs="0">   <s:annotation>     <s:documentation>Passenger contacts</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Itinerary

diagram
type	RailCouponsItnType
properties	content  complex
children	RailCoupon
annotation	documentation Flight coupons
source	<s:element name="Itinerary" type="RailCouponsItnType">   <s:annotation>     <s:documentation>Flight coupons</s:documentation>   </s:annotation> </s:element>

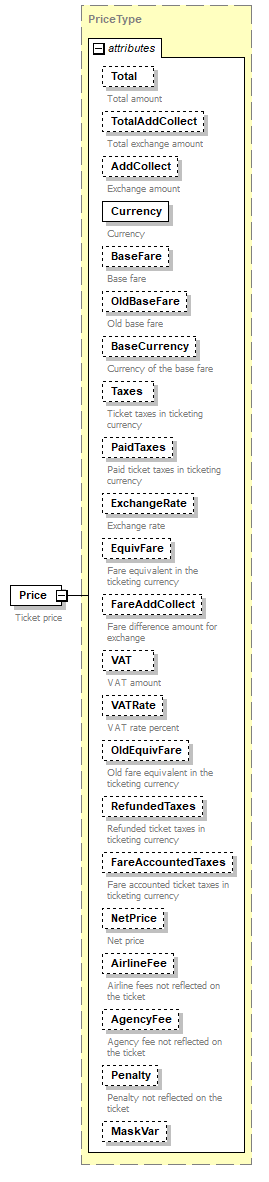

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Price

diagram
type	PriceType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:decimal   optional         documentation Total amount TotalAddCollect   s:decimal   optional         documentation Total exchange amount AddCollect   s:decimal   optional         documentation Exchange amount Currency   s:string   required         documentation Currency BaseFare   s:decimal   optional         documentation Base fare OldBaseFare   s:decimal   optional         documentation Old base fare BaseCurrency   s:string   optional         documentation Currency of the base fare Taxes   s:decimal            documentation Ticket taxes in ticketing currency PaidTaxes   s:decimal            documentation Paid ticket taxes in ticketing currency ExchangeRate   s:string            documentation Exchange rate EquivFare   s:decimal            documentation Fare equivalent in the ticketing currency FareAddCollect   s:decimal   optional         documentation Fare difference amount for exchange VAT   derived by: s:decimal            documentation VAT amount VATRate   derived by: s:decimal            documentation VAT rate percent OldEquivFare   s:decimal            documentation Old fare equivalent in the ticketing currency RefundedTaxes   s:decimal            documentation Refunded ticket taxes in ticketing currency FareAccountedTaxes   s:decimal            documentation Fare accounted ticket taxes in ticketing currency NetPrice   s:decimal            documentation Net price AirlineFee   s:decimal            documentation Airline fees not reflected on the ticket AgencyFee   s:decimal            documentation Agency fee not reflected on the ticket Penalty   s:decimal            documentation Penalty not reflected on the ticket MaskVar   s:decimal
annotation	documentation Ticket price
source	<s:element name="Price" type="PriceType">   <s:annotation>     <s:documentation>Ticket price</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Taxes

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Tax
annotation	documentation Ticket tax breakdown
source	<s:element name="Taxes" minOccurs="0">   <s:annotation>     <s:documentation>Ticket tax breakdown</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Tax" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Tax information</s:documentation>         </s:annotation>         <s:complexType>           <s:attribute name="Amount" type="s:decimal" use="required">             <s:annotation>               <s:documentation>Tax amount</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="TicketCode" type="s:string" use="required">             <s:annotation>               <s:documentation>Tax Ticket Code</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Taxes/Tax

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Amount   s:decimal   required         documentation Tax amount TicketCode   s:string   required         documentation Tax Ticket Code
annotation	documentation Tax information
source	<s:element name="Tax" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Tax information</s:documentation>   </s:annotation>   <s:complexType>     <s:attribute name="Amount" type="s:decimal" use="required">       <s:annotation>         <s:documentation>Tax amount</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="TicketCode" type="s:string" use="required">       <s:annotation>         <s:documentation>Tax Ticket Code</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/Taxes/Tax/@Amount

type	s:decimal
properties	use  required
annotation	documentation Tax amount
source	<s:attribute name="Amount" type="s:decimal" use="required">   <s:annotation>     <s:documentation>Tax amount</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/Taxes/Tax/@TicketCode

type	s:string
properties	use  required
annotation	documentation Tax Ticket Code
source	<s:attribute name="TicketCode" type="s:string" use="required">   <s:annotation>     <s:documentation>Tax Ticket Code</s:documentation>   </s:annotation> </s:attribute>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/FareCalculation

diagram
type	s:string
properties	content  simple
annotation	documentation Fare Calculation string
source	<s:element name="FareCalculation" type="s:string">   <s:annotation>     <s:documentation>Fare Calculation string</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/FOPData

diagram
properties	content  complex
children	FOPItem
annotation	documentation Form of payment data
source	<s:element name="FOPData">   <s:annotation>     <s:documentation>Form of payment data</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="FOPItem" maxOccurs="unbounded">         <s:complexType>           <s:attribute name="FOP" type="FOPType" use="required">             <s:annotation>               <s:documentation>FOP code</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="Amount" type="s:decimal"/>           <s:attribute name="Text" type="s:string"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/FOPData/FOPItem

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPType   required         documentation FOP code Amount   s:decimal            Text   s:string
source	<s:element name="FOPItem" maxOccurs="unbounded">   <s:complexType>     <s:attribute name="FOP" type="FOPType" use="required">       <s:annotation>         <s:documentation>FOP code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Amount" type="s:decimal"/>     <s:attribute name="Text" type="s:string"/>   </s:complexType> </s:element>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/FOPData/FOPItem/@FOP

type	FOPType
properties	use  required
facets	Kind  Value  Annotation enumeration  Agent account enumeration  Bonus account enumeration  Cash enumeration  Credit enumeration  Credit card enumeration  Earned miles enumeration  Earned miles UT enumeration  EMoney enumeration  Internet card enumeration  Invoice enumeration  Miles and cash enumeration  Miles upgrade enumeration  Payment card enumeration  Payment system enumeration  Personal account enumeration  Prepaid enumeration  Voucher or certificate
annotation	documentation FOP code
source	<s:attribute name="FOP" type="FOPType" use="required">   <s:annotation>     <s:documentation>FOP code</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/FOPData/FOPItem/@Amount

type	s:decimal
source	<s:attribute name="Amount" type="s:decimal"/>

attribute SIG_RailBookRS/TicketInfo/Ticket/TicketData/FOPData/FOPItem/@Text

type	s:string
source	<s:attribute name="Text" type="s:string"/>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Endorsements

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Endorsement
annotation	documentation Ticket endorsements
source	<s:element name="Endorsements" minOccurs="0">   <s:annotation>     <s:documentation>Ticket endorsements</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Endorsement" type="s:string" minOccurs="0" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/Endorsements/Endorsement

diagram
type	s:string
properties	minOcc  0 maxOcc  unbounded content  simple
source	<s:element name="Endorsement" type="s:string" minOccurs="0" maxOccurs="unbounded"/>

element SIG_RailBookRS/TicketInfo/Ticket/TicketData/TourCode

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Tour code
source	<s:element name="TourCode" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>Tour code</s:documentation>   </s:annotation> </s:element>

element SIG_RailBookRS/TicketInfo/Ticket/ItineraryReceipt

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
source	<s:element name="ItineraryReceipt" type="s:string" minOccurs="0"/>

element SIG_RailBookRS/TicketInfo/Ticket/ETicket

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation ETicket in Agency accepted form encoded in base64
source	<s:element name="ETicket" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>ETicket in Agency accepted form encoded in base64</s:documentation>   </s:annotation> </s:element>

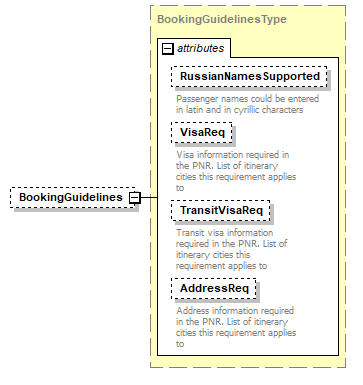

element SIG_RailBookRS/BookingGuidelines

diagram
type	BookingGuidelinesType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation RussianNamesSupported   s:boolean            documentation Passenger names could be entered in latin and in cyrillic characters VisaReq   s:string            documentation Visa information required in the PNR. List of itinerary cities this requirement applies to TransitVisaReq   s:string            documentation Transit visa information required in the PNR. List of itinerary cities this requirement applies to AddressReq   s:string            documentation Address information required in the PNR. List of itinerary cities this requirement applies to
source	<s:element name="BookingGuidelines" type="BookingGuidelinesType" minOccurs="0"/>

element SIG_RailBookRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
