element SIG_QueueRS

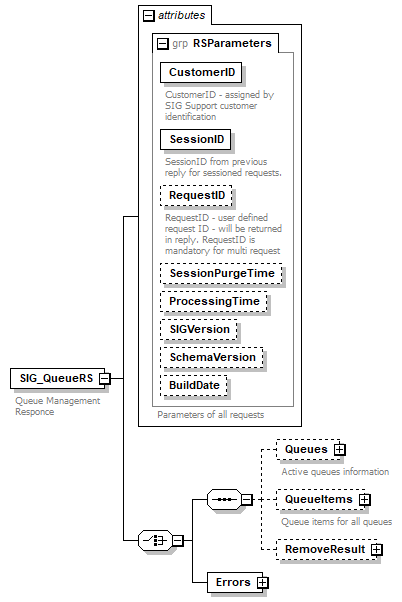

diagram
properties	content  complex
children	Queues QueueItems RemoveResult Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Queue Management Responce
source	<s:element name="SIG_QueueRS">   <s:annotation>     <s:documentation>Queue Management Responce</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Queues" minOccurs="0">           <s:annotation>             <s:documentation>Active queues information</s:documentation>           </s:annotation>           <s:complexType>             <s:sequence>               <s:element name="QueueInfo" type="QueueInfoType" minOccurs="0" maxOccurs="unbounded"/>             </s:sequence>           </s:complexType>         </s:element>         <s:element name="QueueItems" minOccurs="0">           <s:annotation>             <s:documentation>Queue items for all queues</s:documentation>           </s:annotation>           <s:complexType>             <s:sequence>               <s:element name="QueueItem" type="QueueItemType" minOccurs="0" maxOccurs="unbounded"/>               <s:element name="MoreExists" type="s:boolean" minOccurs="0">                 <s:annotation>                   <s:documentation>If present and equal to true - queue(s) has more items to read</s:documentation>                 </s:annotation>               </s:element>             </s:sequence>           </s:complexType>         </s:element>         <s:element name="RemoveResult" minOccurs="0">           <s:complexType>             <s:sequence>               <s:element name="ItemResult" type="QueueResultType" minOccurs="0" maxOccurs="unbounded">                 <s:annotation>                   <s:documentation>Result of remove request for each queue item.</s:documentation>                 </s:annotation>               </s:element>             </s:sequence>           </s:complexType>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_QueueRS/Queues

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	QueueInfo
annotation	documentation Active queues information
source	<s:element name="Queues" minOccurs="0">   <s:annotation>     <s:documentation>Active queues information</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="QueueInfo" type="QueueInfoType" minOccurs="0" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element SIG_QueueRS/Queues/QueueInfo

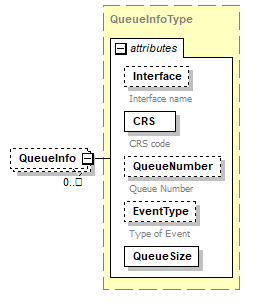

diagram
type	QueueInfoType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Interface   s:string   optional         documentation Interface name CRS   CRSType   required         documentation CRS code QueueNumber   s:string            documentation Queue Number EventType   s:string   optional         documentation Type of Event QueueSize   s:unsignedInt   required
source	<s:element name="QueueInfo" type="QueueInfoType" minOccurs="0" maxOccurs="unbounded"/>

element SIG_QueueRS/QueueItems

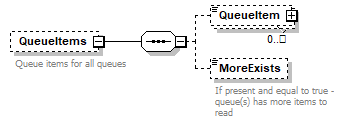

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	QueueItem MoreExists
annotation	documentation Queue items for all queues
source	<s:element name="QueueItems" minOccurs="0">   <s:annotation>     <s:documentation>Queue items for all queues</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="QueueItem" type="QueueItemType" minOccurs="0" maxOccurs="unbounded"/>       <s:element name="MoreExists" type="s:boolean" minOccurs="0">         <s:annotation>           <s:documentation>If present and equal to true - queue(s) has more items to read</s:documentation>         </s:annotation>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_QueueRS/QueueItems/QueueItem

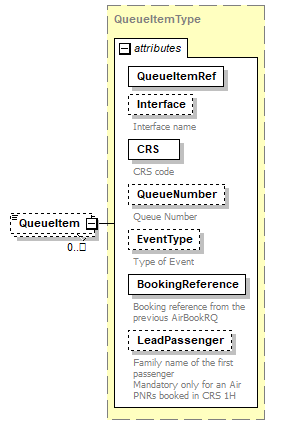

diagram
type	QueueItemType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation QueueItemRef   s:string   required         Interface   s:string   optional         documentation Interface name CRS   CRSType   required         documentation CRS code QueueNumber   s:string            documentation Queue Number EventType   s:string   optional         documentation Type of Event BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H
source	<s:element name="QueueItem" type="QueueItemType" minOccurs="0" maxOccurs="unbounded"/>

element SIG_QueueRS/QueueItems/MoreExists

diagram
type	s:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation If present and equal to true - queue(s) has more items to read
source	<s:element name="MoreExists" type="s:boolean" minOccurs="0">   <s:annotation>     <s:documentation>If present and equal to true - queue(s) has more items to read</s:documentation>   </s:annotation> </s:element>

element SIG_QueueRS/RemoveResult

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ItemResult
source	<s:element name="RemoveResult" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="ItemResult" type="QueueResultType" minOccurs="0" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Result of remove request for each queue item.</s:documentation>         </s:annotation>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_QueueRS/RemoveResult/ItemResult

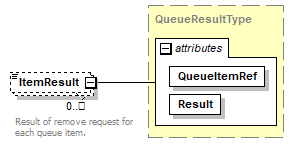

diagram
type	QueueResultType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation QueueItemRef   s:string   required         Result   ResultType   required
annotation	documentation Result of remove request for each queue item.
source	<s:element name="ItemResult" type="QueueResultType" minOccurs="0" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Result of remove request for each queue item.</s:documentation>   </s:annotation> </s:element>

element SIG_QueueRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
