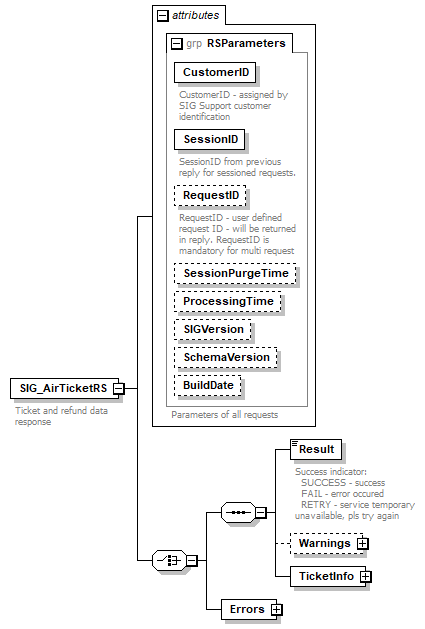

element SIG_AirTicketRS

diagram
properties	content  complex
children	Result Warnings TicketInfo Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Ticket and refund data response
source	<s:element name="SIG_AirTicketRS">   <s:annotation>     <s:documentation>Ticket and refund data response</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Result" type="ResultType">           <s:annotation>             <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>           </s:annotation>         </s:element>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:element name="TicketInfo">           <s:complexType>             <s:sequence>               <s:element name="Ticket" maxOccurs="unbounded">                 <s:complexType>                   <s:sequence>                     <s:element name="Result" type="ResultType">                       <s:annotation>                         <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>                       </s:annotation>                     </s:element>                     <s:element name="TicketData" type="TicketDataType" minOccurs="0"/>                     <s:element name="RefundData" minOccurs="0">                       <s:complexType>                         <s:sequence>                           <s:element name="Price">                             <s:complexType>                               <s:attribute name="Total" type="s:decimal" use="required"/>                               <s:attribute name="Currency" type="s:string" use="required"/>                               <s:attribute name="BaseFare" type="s:decimal" use="required"/>                               <s:attribute name="EquivFare" type="s:decimal" use="required"/>                               <s:attribute name="BaseCurrency" type="s:string" use="required"/>                               <s:attribute name="Penalty" type="s:decimal" use="required"/>                               <s:attribute name="RefundedTaxes" type="s:decimal" use="optional"/>                             </s:complexType>                           </s:element>                           <s:element name="Taxes" type="TaxesType" minOccurs="0"/>                         </s:sequence>                         <s:attribute name="QuoteSource" type="s:string" use="required"/>                         <s:attribute name="QuoteMethod" type="QuoteType" use="required">                           <s:annotation>                             <s:documentation>Quote calculation method:   Automatic   Manual </s:documentation>                           </s:annotation>                         </s:attribute>                       </s:complexType>                     </s:element>                     <s:element name="Error" type="ErrorType" minOccurs="0"/>                   </s:sequence>                   <s:attribute name="TicketNumber" type="s:string" use="required"/>                   <s:attribute name="EMDNumber" type="s:string" use="optional"/>                 </s:complexType>               </s:element>             </s:sequence>           </s:complexType>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_AirTicketRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>   </s:annotation> </s:element>

element SIG_AirTicketRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_AirTicketRS/TicketInfo

diagram
properties	content  complex
children	Ticket
source	<s:element name="TicketInfo">   <s:complexType>     <s:sequence>       <s:element name="Ticket" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="Result" type="ResultType">               <s:annotation>                 <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>               </s:annotation>             </s:element>             <s:element name="TicketData" type="TicketDataType" minOccurs="0"/>             <s:element name="RefundData" minOccurs="0">               <s:complexType>                 <s:sequence>                   <s:element name="Price">                     <s:complexType>                       <s:attribute name="Total" type="s:decimal" use="required"/>                       <s:attribute name="Currency" type="s:string" use="required"/>                       <s:attribute name="BaseFare" type="s:decimal" use="required"/>                       <s:attribute name="EquivFare" type="s:decimal" use="required"/>                       <s:attribute name="BaseCurrency" type="s:string" use="required"/>                       <s:attribute name="Penalty" type="s:decimal" use="required"/>                       <s:attribute name="RefundedTaxes" type="s:decimal" use="optional"/>                     </s:complexType>                   </s:element>                   <s:element name="Taxes" type="TaxesType" minOccurs="0"/>                 </s:sequence>                 <s:attribute name="QuoteSource" type="s:string" use="required"/>                 <s:attribute name="QuoteMethod" type="QuoteType" use="required">                   <s:annotation>                     <s:documentation>Quote calculation method:   Automatic   Manual </s:documentation>                   </s:annotation>                 </s:attribute>               </s:complexType>             </s:element>             <s:element name="Error" type="ErrorType" minOccurs="0"/>           </s:sequence>           <s:attribute name="TicketNumber" type="s:string" use="required"/>           <s:attribute name="EMDNumber" type="s:string" use="optional"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_AirTicketRS/TicketInfo/Ticket

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Result TicketData RefundData Error
attributes	Name   Type   Use   Default   Fixed   Annotation TicketNumber   s:string   required         EMDNumber   s:string   optional
source	<s:element name="Ticket" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="Result" type="ResultType">         <s:annotation>           <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>         </s:annotation>       </s:element>       <s:element name="TicketData" type="TicketDataType" minOccurs="0"/>       <s:element name="RefundData" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="Price">               <s:complexType>                 <s:attribute name="Total" type="s:decimal" use="required"/>                 <s:attribute name="Currency" type="s:string" use="required"/>                 <s:attribute name="BaseFare" type="s:decimal" use="required"/>                 <s:attribute name="EquivFare" type="s:decimal" use="required"/>                 <s:attribute name="BaseCurrency" type="s:string" use="required"/>                 <s:attribute name="Penalty" type="s:decimal" use="required"/>                 <s:attribute name="RefundedTaxes" type="s:decimal" use="optional"/>               </s:complexType>             </s:element>             <s:element name="Taxes" type="TaxesType" minOccurs="0"/>           </s:sequence>           <s:attribute name="QuoteSource" type="s:string" use="required"/>           <s:attribute name="QuoteMethod" type="QuoteType" use="required">             <s:annotation>               <s:documentation>Quote calculation method:   Automatic   Manual </s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>       <s:element name="Error" type="ErrorType" minOccurs="0"/>     </s:sequence>     <s:attribute name="TicketNumber" type="s:string" use="required"/>     <s:attribute name="EMDNumber" type="s:string" use="optional"/>   </s:complexType> </s:element>

attribute SIG_AirTicketRS/TicketInfo/Ticket/@TicketNumber

type	s:string
properties	use  required
source	<s:attribute name="TicketNumber" type="s:string" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/@EMDNumber

type	s:string
properties	use  optional
source	<s:attribute name="EMDNumber" type="s:string" use="optional"/>

element SIG_AirTicketRS/TicketInfo/Ticket/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>   </s:annotation> </s:element>

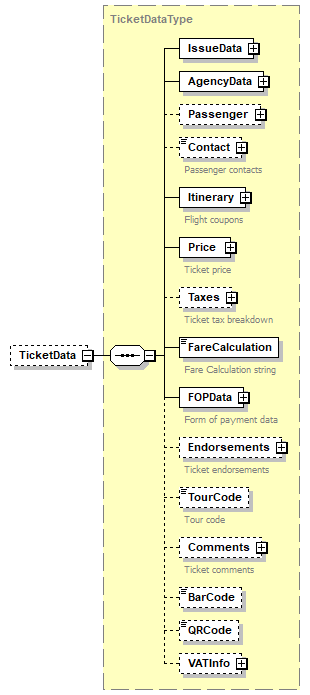

element SIG_AirTicketRS/TicketInfo/Ticket/TicketData

diagram
type	TicketDataType
properties	minOcc  0 maxOcc  1 content  complex
children	IssueData AgencyData Passenger Contact Itinerary Price Taxes FareCalculation FOPData Endorsements TourCode Comments BarCode QRCode VATInfo
source	<s:element name="TicketData" type="TicketDataType" minOccurs="0"/>

element SIG_AirTicketRS/TicketInfo/Ticket/RefundData

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Price Taxes
attributes	Name   Type   Use   Default   Fixed   Annotation QuoteSource   s:string   required         QuoteMethod   QuoteType   required         documentation Quote calculation method:   Automatic   Manual
source	<s:element name="RefundData" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Price">         <s:complexType>           <s:attribute name="Total" type="s:decimal" use="required"/>           <s:attribute name="Currency" type="s:string" use="required"/>           <s:attribute name="BaseFare" type="s:decimal" use="required"/>           <s:attribute name="EquivFare" type="s:decimal" use="required"/>           <s:attribute name="BaseCurrency" type="s:string" use="required"/>           <s:attribute name="Penalty" type="s:decimal" use="required"/>           <s:attribute name="RefundedTaxes" type="s:decimal" use="optional"/>         </s:complexType>       </s:element>       <s:element name="Taxes" type="TaxesType" minOccurs="0"/>     </s:sequence>     <s:attribute name="QuoteSource" type="s:string" use="required"/>     <s:attribute name="QuoteMethod" type="QuoteType" use="required">       <s:annotation>         <s:documentation>Quote calculation method:   Automatic   Manual </s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/@QuoteSource

type	s:string
properties	use  required
source	<s:attribute name="QuoteSource" type="s:string" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/@QuoteMethod

type	QuoteType
properties	use  required
facets	Kind  Value  Annotation enumeration  Automatic enumeration  Manual
annotation	documentation Quote calculation method:   Automatic   Manual
source	<s:attribute name="QuoteMethod" type="QuoteType" use="required">   <s:annotation>     <s:documentation>Quote calculation method:   Automatic   Manual </s:documentation>   </s:annotation> </s:attribute>

element SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:decimal   required         Currency   s:string   required         BaseFare   s:decimal   required         EquivFare   s:decimal   required         BaseCurrency   s:string   required         Penalty   s:decimal   required         RefundedTaxes   s:decimal   optional
source	<s:element name="Price">   <s:complexType>     <s:attribute name="Total" type="s:decimal" use="required"/>     <s:attribute name="Currency" type="s:string" use="required"/>     <s:attribute name="BaseFare" type="s:decimal" use="required"/>     <s:attribute name="EquivFare" type="s:decimal" use="required"/>     <s:attribute name="BaseCurrency" type="s:string" use="required"/>     <s:attribute name="Penalty" type="s:decimal" use="required"/>     <s:attribute name="RefundedTaxes" type="s:decimal" use="optional"/>   </s:complexType> </s:element>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@Total

type	s:decimal
properties	use  required
source	<s:attribute name="Total" type="s:decimal" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@Currency

type	s:string
properties	use  required
source	<s:attribute name="Currency" type="s:string" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@BaseFare

type	s:decimal
properties	use  required
source	<s:attribute name="BaseFare" type="s:decimal" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@EquivFare

type	s:decimal
properties	use  required
source	<s:attribute name="EquivFare" type="s:decimal" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@BaseCurrency

type	s:string
properties	use  required
source	<s:attribute name="BaseCurrency" type="s:string" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@Penalty

type	s:decimal
properties	use  required
source	<s:attribute name="Penalty" type="s:decimal" use="required"/>

attribute SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Price/@RefundedTaxes

type	s:decimal
properties	use  optional
source	<s:attribute name="RefundedTaxes" type="s:decimal" use="optional"/>

element SIG_AirTicketRS/TicketInfo/Ticket/RefundData/Taxes

diagram
type	TaxesType
properties	minOcc  0 maxOcc  1 content  complex
children	Tax
source	<s:element name="Taxes" type="TaxesType" minOccurs="0"/>

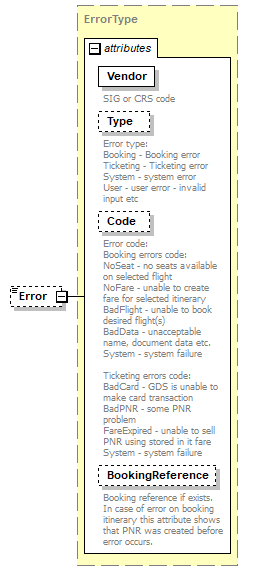

element SIG_AirTicketRS/TicketInfo/Ticket/Error

diagram
type	ErrorType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Vendor   derived by: s:string   required         documentation SIG or CRS code Type   derived by: s:string   optional         documentation Error type: Booking - Booking error Ticketing - Ticketing error System - system error User - user error - invalid input etc Code   derived by: s:string   optional         documentation Error code: Booking errors code: NoSeat - no seats available on selected flight NoFare - unable to create fare for selected itinerary BadFlight - unable to book desired flight(s) BadData - unacceptable name, document data etc. System - system failure Ticketing errors code: BadCard - GDS is unable to make card transaction BadPNR - some PNR problem FareExpired - unable to sell PNR using stored in it fare System - system failure BookingReference   s:string   optional         documentation Booking reference if exists. In case of error on booking itinerary this attribute shows that PNR was created before error occurs.
source	<s:element name="Error" type="ErrorType" minOccurs="0"/>

element SIG_AirTicketRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
