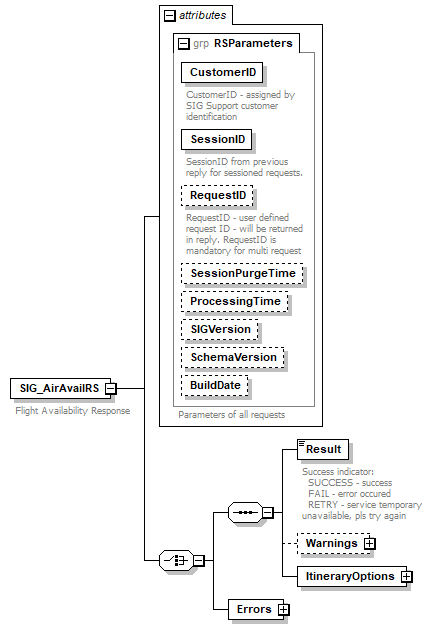

element SIG_AirAvailRS

diagram
properties	content  complex
children	Result Warnings ItineraryOptions Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Flight Availability Response
source	<s:element name="SIG_AirAvailRS">   <s:annotation>     <s:documentation>Flight Availability Response</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Result" type="ResultType">           <s:annotation>             <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>           </s:annotation>         </s:element>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:element name="ItineraryOptions">           <s:complexType>             <s:sequence>               <s:element name="ItineraryOption" minOccurs="0" maxOccurs="unbounded">                 <s:annotation>                   <s:documentation>Itinerary option - direct flight or flight sequence (connection) for one of requested OD, with available fares (optional)</s:documentation>                 </s:annotation>                 <s:complexType>                   <s:sequence>                     <s:element name="FlightSegments">                       <s:complexType>                         <s:sequence>                           <s:element name="FlightSegment" type="FlightSegmentType" maxOccurs="4"/>                         </s:sequence>                       </s:complexType>                     </s:element>                     <s:element name="Fares" minOccurs="0">                       <s:complexType>                         <s:sequence>                           <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">                             <s:annotation>                               <s:documentation>Available fares on current flights</s:documentation>                             </s:annotation>                             <s:complexType>                               <s:sequence>                                 <s:element name="Price" type="PriceType"/>                                 <s:element name="StayRequirement">                                   <s:annotation>                                     <s:documentation>                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule </s:documentation>                                   </s:annotation>                                   <s:complexType>                                     <s:attribute name="MinStay" type="s:string"/>                                     <s:attribute name="MaxStay" type="s:string"/>                                   </s:complexType>                                 </s:element>                                 <s:element name="Reservation">                                   <s:complexType>                                     <s:attribute name="Refs" type="strlist" use="required">                                       <s:annotation>                                         <s:documentation>List of references to FlightSegment reservations</s:documentation>                                       </s:annotation>                                     </s:attribute>                                   </s:complexType>                                 </s:element>                                 <s:element name="RuleKey" type="s:string">                                   <s:annotation>                                     <s:documentation>Fare rules</s:documentation>                                   </s:annotation>                                 </s:element>                               </s:sequence>                               <s:attributeGroup ref="AvailFare"/>                             </s:complexType>                           </s:element>                         </s:sequence>                       </s:complexType>                     </s:element>                   </s:sequence>                   <s:attributeGroup ref="ItineraryDetails"/>                 </s:complexType>               </s:element>             </s:sequence>           </s:complexType>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_AirAvailRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>   </s:annotation> </s:element>

element SIG_AirAvailRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

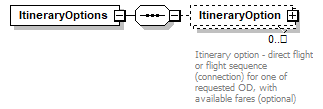

element SIG_AirAvailRS/ItineraryOptions

diagram
properties	content  complex
children	ItineraryOption
source	<s:element name="ItineraryOptions">   <s:complexType>     <s:sequence>       <s:element name="ItineraryOption" minOccurs="0" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Itinerary option - direct flight or flight sequence (connection) for one of requested OD, with available fares (optional)</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="FlightSegments">               <s:complexType>                 <s:sequence>                   <s:element name="FlightSegment" type="FlightSegmentType" maxOccurs="4"/>                 </s:sequence>               </s:complexType>             </s:element>             <s:element name="Fares" minOccurs="0">               <s:complexType>                 <s:sequence>                   <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">                     <s:annotation>                       <s:documentation>Available fares on current flights</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:sequence>                         <s:element name="Price" type="PriceType"/>                         <s:element name="StayRequirement">                           <s:annotation>                             <s:documentation>                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule </s:documentation>                           </s:annotation>                           <s:complexType>                             <s:attribute name="MinStay" type="s:string"/>                             <s:attribute name="MaxStay" type="s:string"/>                           </s:complexType>                         </s:element>                         <s:element name="Reservation">                           <s:complexType>                             <s:attribute name="Refs" type="strlist" use="required">                               <s:annotation>                                 <s:documentation>List of references to FlightSegment reservations</s:documentation>                               </s:annotation>                             </s:attribute>                           </s:complexType>                         </s:element>                         <s:element name="RuleKey" type="s:string">                           <s:annotation>                             <s:documentation>Fare rules</s:documentation>                           </s:annotation>                         </s:element>                       </s:sequence>                       <s:attributeGroup ref="AvailFare"/>                     </s:complexType>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>           </s:sequence>           <s:attributeGroup ref="ItineraryDetails"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

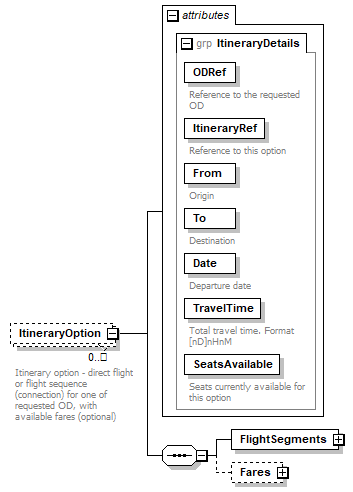

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	FlightSegments Fares
attributes	Name   Type   Use   Default   Fixed   Annotation ODRef   derived by: s:string   required         documentation Reference to the requested OD ItineraryRef   s:string   required         documentation Reference to this option From   s:string   required         documentation Origin To   s:string   required         documentation Destination Date   s:date   required         documentation Departure date TravelTime   s:duration   required         documentation Total travel time. Format [nD]nHnM SeatsAvailable   s:int   required         documentation Seats currently available for this option
annotation	documentation Itinerary option - direct flight or flight sequence (connection) for one of requested OD, with available fares (optional)
source	<s:element name="ItineraryOption" minOccurs="0" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Itinerary option - direct flight or flight sequence (connection) for one of requested OD, with available fares (optional)</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="FlightSegments">         <s:complexType>           <s:sequence>             <s:element name="FlightSegment" type="FlightSegmentType" maxOccurs="4"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="Fares" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">               <s:annotation>                 <s:documentation>Available fares on current flights</s:documentation>               </s:annotation>               <s:complexType>                 <s:sequence>                   <s:element name="Price" type="PriceType"/>                   <s:element name="StayRequirement">                     <s:annotation>                       <s:documentation>                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule </s:documentation>                     </s:annotation>                     <s:complexType>                       <s:attribute name="MinStay" type="s:string"/>                       <s:attribute name="MaxStay" type="s:string"/>                     </s:complexType>                   </s:element>                   <s:element name="Reservation">                     <s:complexType>                       <s:attribute name="Refs" type="strlist" use="required">                         <s:annotation>                           <s:documentation>List of references to FlightSegment reservations</s:documentation>                         </s:annotation>                       </s:attribute>                     </s:complexType>                   </s:element>                   <s:element name="RuleKey" type="s:string">                     <s:annotation>                       <s:documentation>Fare rules</s:documentation>                     </s:annotation>                   </s:element>                 </s:sequence>                 <s:attributeGroup ref="AvailFare"/>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>     <s:attributeGroup ref="ItineraryDetails"/>   </s:complexType> </s:element>

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/FlightSegments

diagram
properties	content  complex
children	FlightSegment
source	<s:element name="FlightSegments">   <s:complexType>     <s:sequence>       <s:element name="FlightSegment" type="FlightSegmentType" maxOccurs="4"/>     </s:sequence>   </s:complexType> </s:element>

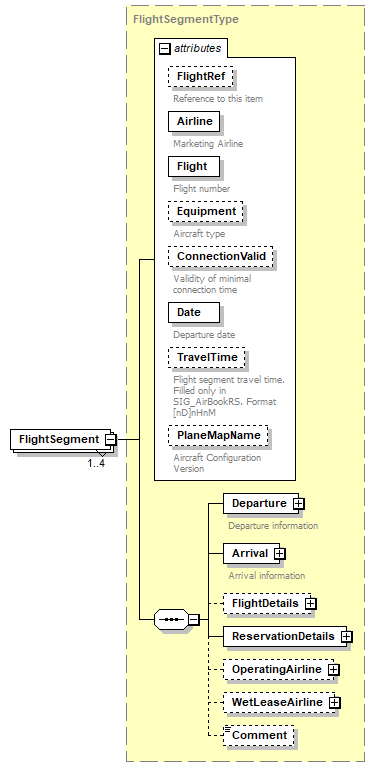

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/FlightSegments/FlightSegment

diagram
type	FlightSegmentType
properties	minOcc  1 maxOcc  4 content  complex
children	Departure Arrival FlightDetails ReservationDetails OperatingAirline WetLeaseAirline Comment
attributes	Name   Type   Use   Default   Fixed   Annotation FlightRef   s:string   optional         documentation Reference to this item Airline   derived by: s:string   required         documentation Marketing Airline Flight   s:string   required         documentation Flight number Equipment   s:string            documentation Aircraft type ConnectionValid   derived by: s:string            documentation Validity of minimal connection time Date   s:date   required         documentation Departure date TravelTime   s:duration            documentation Flight segment travel time. Filled only in SIG_AirBookRS. Format [nD]nHnM PlaneMapName   s:string   optional         documentation Aircraft Configuration Version
source	<s:element name="FlightSegment" type="FlightSegmentType" maxOccurs="4"/>

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Fare
source	<s:element name="Fares" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Available fares on current flights</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="Price" type="PriceType"/>             <s:element name="StayRequirement">               <s:annotation>                 <s:documentation>                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule </s:documentation>               </s:annotation>               <s:complexType>                 <s:attribute name="MinStay" type="s:string"/>                 <s:attribute name="MaxStay" type="s:string"/>               </s:complexType>             </s:element>             <s:element name="Reservation">               <s:complexType>                 <s:attribute name="Refs" type="strlist" use="required">                   <s:annotation>                     <s:documentation>List of references to FlightSegment reservations</s:documentation>                   </s:annotation>                 </s:attribute>               </s:complexType>             </s:element>             <s:element name="RuleKey" type="s:string">               <s:annotation>                 <s:documentation>Fare rules</s:documentation>               </s:annotation>             </s:element>           </s:sequence>           <s:attributeGroup ref="AvailFare"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

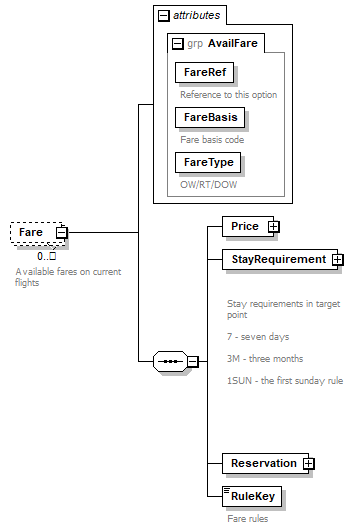

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Price StayRequirement Reservation RuleKey
attributes	Name   Type   Use   Default   Fixed   Annotation FareRef   s:integer   required         documentation Reference to this option FareBasis   s:string   required         documentation Fare basis code FareType   AvailFareType   required         documentation OW/RT/DOW
annotation	documentation Available fares on current flights
source	<s:element name="Fare" minOccurs="0" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Available fares on current flights</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Price" type="PriceType"/>       <s:element name="StayRequirement">         <s:annotation>           <s:documentation>                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule </s:documentation>         </s:annotation>         <s:complexType>           <s:attribute name="MinStay" type="s:string"/>           <s:attribute name="MaxStay" type="s:string"/>         </s:complexType>       </s:element>       <s:element name="Reservation">         <s:complexType>           <s:attribute name="Refs" type="strlist" use="required">             <s:annotation>               <s:documentation>List of references to FlightSegment reservations</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>       <s:element name="RuleKey" type="s:string">         <s:annotation>           <s:documentation>Fare rules</s:documentation>         </s:annotation>       </s:element>     </s:sequence>     <s:attributeGroup ref="AvailFare"/>   </s:complexType> </s:element>

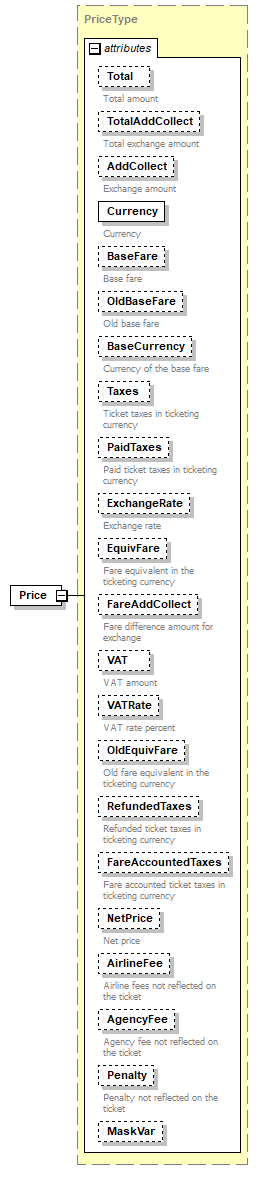

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/Price

diagram
type	PriceType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:decimal   optional         documentation Total amount TotalAddCollect   s:decimal   optional         documentation Total exchange amount AddCollect   s:decimal   optional         documentation Exchange amount Currency   s:string   required         documentation Currency BaseFare   s:decimal   optional         documentation Base fare OldBaseFare   s:decimal   optional         documentation Old base fare BaseCurrency   s:string   optional         documentation Currency of the base fare Taxes   s:decimal            documentation Ticket taxes in ticketing currency PaidTaxes   s:decimal            documentation Paid ticket taxes in ticketing currency ExchangeRate   s:string            documentation Exchange rate EquivFare   s:decimal            documentation Fare equivalent in the ticketing currency FareAddCollect   s:decimal   optional         documentation Fare difference amount for exchange VAT   derived by: s:decimal            documentation VAT amount VATRate   derived by: s:decimal            documentation VAT rate percent OldEquivFare   s:decimal            documentation Old fare equivalent in the ticketing currency RefundedTaxes   s:decimal            documentation Refunded ticket taxes in ticketing currency FareAccountedTaxes   s:decimal            documentation Fare accounted ticket taxes in ticketing currency NetPrice   s:decimal            documentation Net price AirlineFee   s:decimal            documentation Airline fees not reflected on the ticket AgencyFee   s:decimal            documentation Agency fee not reflected on the ticket Penalty   s:decimal            documentation Penalty not reflected on the ticket MaskVar   s:decimal
source	<s:element name="Price" type="PriceType"/>

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/StayRequirement

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation MinStay   s:string            MaxStay   s:string
annotation	documentation                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule
source	<s:element name="StayRequirement">   <s:annotation>     <s:documentation>                                         Stay requirements in target point                                         7 - seven days                                         3M - three months                                         1SUN - the first sunday rule </s:documentation>   </s:annotation>   <s:complexType>     <s:attribute name="MinStay" type="s:string"/>     <s:attribute name="MaxStay" type="s:string"/>   </s:complexType> </s:element>

attribute SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/StayRequirement/@MinStay

type	s:string
source	<s:attribute name="MinStay" type="s:string"/>

attribute SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/StayRequirement/@MaxStay

type	s:string
source	<s:attribute name="MaxStay" type="s:string"/>

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/Reservation

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Refs   strlist   required         documentation List of references to FlightSegment reservations
source	<s:element name="Reservation">   <s:complexType>     <s:attribute name="Refs" type="strlist" use="required">       <s:annotation>         <s:documentation>List of references to FlightSegment reservations</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/Reservation/@Refs

type	strlist
properties	use  required
annotation	documentation List of references to FlightSegment reservations
source	<s:attribute name="Refs" type="strlist" use="required">   <s:annotation>     <s:documentation>List of references to FlightSegment reservations</s:documentation>   </s:annotation> </s:attribute>

element SIG_AirAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/RuleKey

diagram
type	s:string
properties	content  simple
annotation	documentation Fare rules
source	<s:element name="RuleKey" type="s:string">   <s:annotation>     <s:documentation>Fare rules</s:documentation>   </s:annotation> </s:element>

element SIG_AirAvailRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
