complexType RequestBaseEx

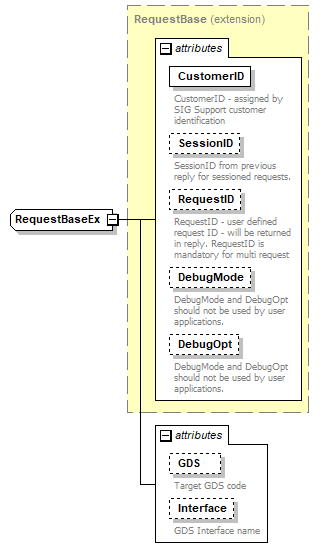

diagram
type	extension of RequestBase
properties	base  RequestBase
used by	elements  SIG_PassThroughRQ SIG_ScreenTextRQ SIG_SignInRQ
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications. GDS   CRSType            documentation Target GDS code Interface   s:string            documentation GDS Interface name
source	<s:complexType name="RequestBaseEx">   <s:complexContent>     <s:extension base="RequestBase">       <s:attribute name="GDS" type="CRSType">         <s:annotation>           <s:documentation>Target GDS code</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="Interface" type="s:string">         <s:annotation>           <s:documentation>GDS Interface name</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute RequestBaseEx/@GDS

type	CRSType
facets	Kind  Value  Annotation enumeration  1A documentation Amadeus enumeration  1G documentation Galileo enumeration  1H documentation Sirena2000 enumeration  1M documentation TAIS CRS enumeration  1N enumeration  1S documentation Sabre enumeration  S7 documentation SITA S7 enumeration  DP documentation Navitaire for DP enumeration  1Б documentation Charter gate enumeration  1Ц documentation Aviacenter charter gate enumeration  R3 documentation SITA R3 enumeration  A4 documentation TAIS CRS for A4 enumeration  XS documentation SITA CRS enumeration  NDC documentation NDC based CRS enumeration  MV documentation GRS-MixVel
annotation	documentation Target GDS code
source	<s:attribute name="GDS" type="CRSType">   <s:annotation>     <s:documentation>Target GDS code</s:documentation>   </s:annotation> </s:attribute>

attribute RequestBaseEx/@Interface

type	s:string
annotation	documentation GDS Interface name
source	<s:attribute name="Interface" type="s:string">   <s:annotation>     <s:documentation>GDS Interface name</s:documentation>   </s:annotation> </s:attribute>
