complexType FlightSeatMapType

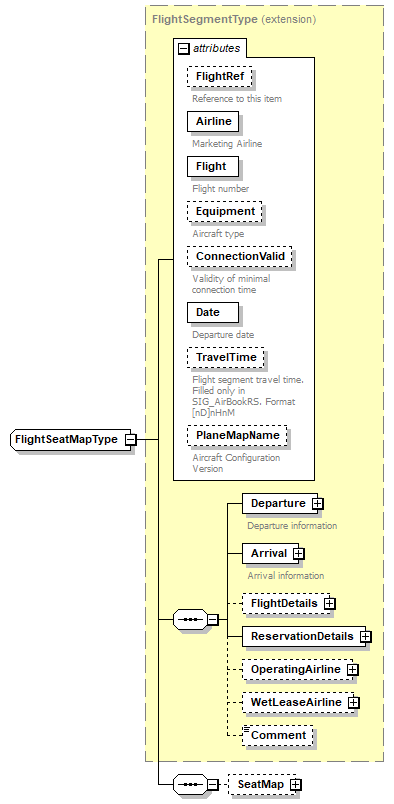

diagram
type	extension of FlightSegmentType
properties	base  FlightSegmentType
children	Departure Arrival FlightDetails ReservationDetails OperatingAirline WetLeaseAirline Comment SeatMap
used by	element  SIG_AirServicesRS/Itinerary/FlightSegment
attributes	Name   Type   Use   Default   Fixed   Annotation FlightRef   s:string   optional         documentation Reference to this item Airline   derived by: s:string   required         documentation Marketing Airline Flight   s:string   required         documentation Flight number Equipment   s:string            documentation Aircraft type ConnectionValid   derived by: s:string            documentation Validity of minimal connection time Date   s:date   required         documentation Departure date TravelTime   s:duration            documentation Flight segment travel time. Filled only in SIG_AirBookRS. Format [nD]nHnM PlaneMapName   s:string   optional         documentation Aircraft Configuration Version
source	<s:complexType name="FlightSeatMapType">   <s:complexContent>     <s:extension base="FlightSegmentType">       <s:sequence>         <s:element name="SeatMap" type="SeatMapType" minOccurs="0"/>       </s:sequence>     </s:extension>   </s:complexContent> </s:complexType>

element FlightSeatMapType/SeatMap

diagram
type	SeatMapType
properties	minOcc  0 maxOcc  1 content  complex
children	CabinMap Errors
source	<s:element name="SeatMap" type="SeatMapType" minOccurs="0"/>
