complexType RailSegmentType

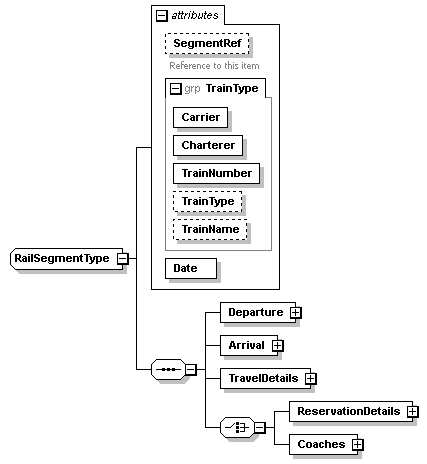

diagram
children	Departure Arrival TravelDetails ReservationDetails Coaches
used by	element  RailItineraryType/RailSegment
attributes	Name   Type   Use   Default   Fixed   Annotation SegmentRef   s:string            documentation Reference to this item Carrier   s:string   required         Charterer   s:string   required         TrainNumber   s:string   required         TrainType   s:string            TrainName   s:string            Date   s:date   required
source	<s:complexType name="RailSegmentType">   <s:sequence>     <s:element name="Departure" type="RailEvent"/>     <s:element name="Arrival" type="RailEvent"/>     <s:element name="TravelDetails">       <s:complexType>         <s:attribute name="StopCount" type="s:integer" use="required"/>       </s:complexType>     </s:element>     <s:choice>       <s:element name="ReservationDetails">         <s:complexType>           <s:sequence>             <s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="Coaches">         <s:complexType>           <s:sequence>             <s:element name="Coach" maxOccurs="unbounded">               <s:complexType>                 <s:sequence>                   <s:element name="ReservationDetails">                     <s:complexType>                       <s:sequence>                         <s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>                       </s:sequence>                     </s:complexType>                   </s:element>                 </s:sequence>                 <s:attribute name="CoachNumber" type="s:string" use="required"/>                 <s:attribute name="CoachType" type="s:string" use="required"/>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>     </s:choice>   </s:sequence>   <s:attribute name="SegmentRef" type="s:string">     <s:annotation>       <s:documentation>Reference to this item</s:documentation>     </s:annotation>   </s:attribute>   <s:attributeGroup ref="TrainType"/>   <s:attribute name="Date" type="s:date" use="required"/> </s:complexType>

attribute RailSegmentType/@SegmentRef

type	s:string
annotation	documentation Reference to this item
source	<s:attribute name="SegmentRef" type="s:string">   <s:annotation>     <s:documentation>Reference to this item</s:documentation>   </s:annotation> </s:attribute>

attribute RailSegmentType/@Date

type	s:date
properties	use  required
source	<s:attribute name="Date" type="s:date" use="required"/>

element RailSegmentType/Departure

diagram
type	RailEvent
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation City   s:string   required         Station   s:string   required         Time   s:dateTime   required
source	<s:element name="Departure" type="RailEvent"/>

element RailSegmentType/Arrival

diagram
type	RailEvent
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation City   s:string   required         Station   s:string   required         Time   s:dateTime   required
source	<s:element name="Arrival" type="RailEvent"/>

element RailSegmentType/TravelDetails

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation StopCount   s:integer   required
source	<s:element name="TravelDetails">   <s:complexType>     <s:attribute name="StopCount" type="s:integer" use="required"/>   </s:complexType> </s:element>

attribute RailSegmentType/TravelDetails/@StopCount

type	s:integer
properties	use  required
source	<s:attribute name="StopCount" type="s:integer" use="required"/>

element RailSegmentType/ReservationDetails

diagram
properties	content  complex
children	Reservation
source	<s:element name="ReservationDetails">   <s:complexType>     <s:sequence>       <s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element RailSegmentType/ReservationDetails/Reservation

diagram
type	RailReservation
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ReservationRef   s:string   optional         documentation Reference to this item RBD   s:string   required         documentation Booking class SeatCount   s:int   optional         documentation Number of seats CoachType   s:string   required         Seats   strlist   optional
source	<s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>

element RailSegmentType/Coaches

diagram
properties	content  complex
children	Coach
source	<s:element name="Coaches">   <s:complexType>     <s:sequence>       <s:element name="Coach" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="ReservationDetails">               <s:complexType>                 <s:sequence>                   <s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>                 </s:sequence>               </s:complexType>             </s:element>           </s:sequence>           <s:attribute name="CoachNumber" type="s:string" use="required"/>           <s:attribute name="CoachType" type="s:string" use="required"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element RailSegmentType/Coaches/Coach

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	ReservationDetails
attributes	Name   Type   Use   Default   Fixed   Annotation CoachNumber   s:string   required         CoachType   s:string   required
source	<s:element name="Coach" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="ReservationDetails">         <s:complexType>           <s:sequence>             <s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>     <s:attribute name="CoachNumber" type="s:string" use="required"/>     <s:attribute name="CoachType" type="s:string" use="required"/>   </s:complexType> </s:element>

attribute RailSegmentType/Coaches/Coach/@CoachNumber

type	s:string
properties	use  required
source	<s:attribute name="CoachNumber" type="s:string" use="required"/>

attribute RailSegmentType/Coaches/Coach/@CoachType

type	s:string
properties	use  required
source	<s:attribute name="CoachType" type="s:string" use="required"/>

element RailSegmentType/Coaches/Coach/ReservationDetails

diagram
properties	content  complex
children	Reservation
source	<s:element name="ReservationDetails">   <s:complexType>     <s:sequence>       <s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element RailSegmentType/Coaches/Coach/ReservationDetails/Reservation

diagram
type	RailReservation
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ReservationRef   s:string   optional         documentation Reference to this item RBD   s:string   required         documentation Booking class SeatCount   s:int   optional         documentation Number of seats CoachType   s:string   required         Seats   strlist   optional
source	<s:element name="Reservation" type="RailReservation" maxOccurs="unbounded"/>
