complexType FlightEvent

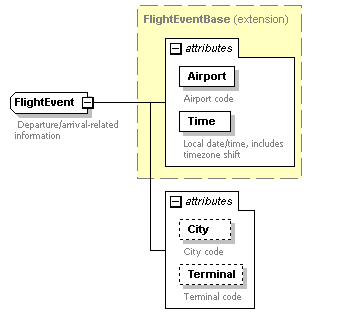

diagram
type	extension of FlightEventBase
properties	base  FlightEventBase
used by	elements  FlightScheduleType/Arrival FlightScheduleType/Departure
attributes	Name   Type   Use   Default   Fixed   Annotation Airport   s:string   required         documentation Airport code Time   s:dateTime   required         documentation Local date/time, includes timezone shift City   s:string   optional         documentation City code Terminal   s:string            documentation Terminal code
annotation	documentation Departure/arrival-related information
source	<s:complexType name="FlightEvent">   <s:annotation>     <s:documentation> Departure/arrival-related information</s:documentation>   </s:annotation>   <s:complexContent>     <s:extension base="FlightEventBase">       <s:attribute name="City" type="s:string" use="optional">         <s:annotation>           <s:documentation>City code</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="Terminal" type="s:string">         <s:annotation>           <s:documentation>Terminal code</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute FlightEvent/@City

type	s:string
properties	use  optional
annotation	documentation City code
source	<s:attribute name="City" type="s:string" use="optional">   <s:annotation>     <s:documentation>City code</s:documentation>   </s:annotation> </s:attribute>

attribute FlightEvent/@Terminal

type	s:string
annotation	documentation Terminal code
source	<s:attribute name="Terminal" type="s:string">   <s:annotation>     <s:documentation>Terminal code</s:documentation>   </s:annotation> </s:attribute>
