complexType FlightCouponType

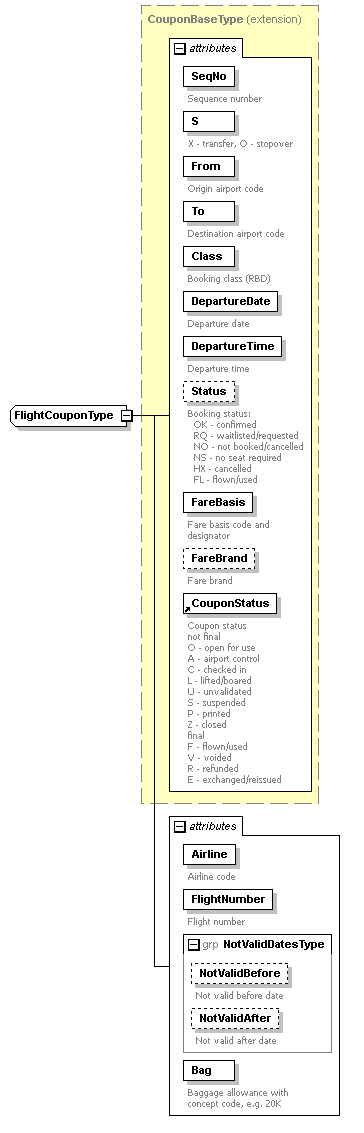

diagram
type	extension of CouponBaseType
properties	base  CouponBaseType
used by	element  FlightCouponsItnType/FlightCoupon
attributes	Name   Type   Use   Default   Fixed   Annotation SeqNo   s:int   required         documentation Sequence number S   StopoverType   required         documentation X - transfer, O - stopover From   s:string   required         documentation Origin airport code To   s:string   required         documentation Destination airport code Class   s:string   required         documentation Booking class (RBD) DepartureDate   s:date   required         documentation Departure date DepartureTime   s:time   required         documentation Departure time Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   FL - flown/used FareBasis   s:string   required         documentation Fare basis code and designator FareBrand   s:string   optional         documentation Fare brand CouponStatus   derived by: s:string   required         documentation Coupon status not final O - open for use A - airport control C - checked in L - lifted/boared U - unvalidated S - suspended P - printed Z - closed final F - flown/used V - voided R - refunded E - exchanged/reissued Airline   s:string   required         documentation Airline code FlightNumber   s:string   required         documentation Flight number NotValidBefore   s:date   optional         documentation Not valid before date NotValidAfter   s:date   optional         documentation Not valid after date Bag   s:string   required         documentation Baggage allowance with concept code, e.g. 20K
source	<s:complexType name="FlightCouponType">   <s:complexContent>     <s:extension base="CouponBaseType">       <s:attribute name="Airline" type="s:string" use="required">         <s:annotation>           <s:documentation>Airline code</s:documentation>         </s:annotation>       </s:attribute>       <s:attribute name="FlightNumber" type="s:string" use="required">         <s:annotation>           <s:documentation>Flight number</s:documentation>         </s:annotation>       </s:attribute>       <s:attributeGroup ref="NotValidDatesType"/>       <s:attribute name="Bag" type="s:string" use="required">         <s:annotation>           <s:documentation>Baggage allowance with concept code, e.g. 20K</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute FlightCouponType/@Airline

type	s:string
properties	use  required
annotation	documentation Airline code
source	<s:attribute name="Airline" type="s:string" use="required">   <s:annotation>     <s:documentation>Airline code</s:documentation>   </s:annotation> </s:attribute>

attribute FlightCouponType/@FlightNumber

type	s:string
properties	use  required
annotation	documentation Flight number
source	<s:attribute name="FlightNumber" type="s:string" use="required">   <s:annotation>     <s:documentation>Flight number</s:documentation>   </s:annotation> </s:attribute>

attribute FlightCouponType/@Bag

type	s:string
properties	use  required
annotation	documentation Baggage allowance with concept code, e.g. 20K
source	<s:attribute name="Bag" type="s:string" use="required">   <s:annotation>     <s:documentation>Baggage allowance with concept code, e.g. 20K</s:documentation>   </s:annotation> </s:attribute>
