complexType EMDInfoType

diagram
children	EMD
used by	element  PNRGroup/EMDInfo
source	<s:complexType name="EMDInfoType">   <s:sequence>     <s:element name="EMD" maxOccurs="unbounded">       <s:complexType>         <s:sequence>           <s:element name="EMDData" type="TicketDataType" minOccurs="0"/>           <s:element name="EMDReceipt" type="s:string" minOccurs="0">             <s:annotation>               <s:documentation>EMD receipt - free text</s:documentation>             </s:annotation>           </s:element>         </s:sequence>         <s:attribute name="EMDRef" type="s:string" use="required">           <s:annotation>             <s:documentation>Reference to this item</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="PaxRef" type="s:string" use="required">           <s:annotation>             <s:documentation>Passenger reference</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="RemarkRefs" type="strlist">           <s:annotation>             <s:documentation>References to segment reservations</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="StockProvider" type="s:string" use="required">           <s:annotation>             <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="EMDNumber" type="s:string" use="required">           <s:annotation>             <s:documentation>EMD number</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="ValidatingAirline" type="s:string" use="required">           <s:annotation>             <s:documentation>Validating carrier</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="AcctgCode" type="s:string" use="required">           <s:annotation>             <s:documentation>Validating carrier's accounting code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="EMDType" use="required">           <s:annotation>             <s:documentation>EMD type: S - EMD-S, A - EMD-A </s:documentation>           </s:annotation>           <s:simpleType>             <s:restriction base="s:string">               <s:enumeration value="S"/>               <s:enumeration value="A"/>             </s:restriction>           </s:simpleType>         </s:attribute>         <s:attribute name="RFIC" type="s:string" use="optional">           <s:annotation>             <s:documentation>RFIC code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="EMDVAT" type="s:string">           <s:annotation>             <s:documentation>EMD VAT endorsement string</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="EMDTaxRate" type="s:decimal">           <s:annotation>             <s:documentation>EMD tax rate percent</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>   </s:sequence> </s:complexType>

element EMDInfoType/EMD

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	EMDData EMDReceipt
attributes	Name   Type   Use   Default   Fixed   Annotation EMDRef   s:string   required         documentation Reference to this item PaxRef   s:string   required         documentation Passenger reference RemarkRefs   strlist            documentation References to segment reservations StockProvider   s:string   required         documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code) EMDNumber   s:string   required         documentation EMD number ValidatingAirline   s:string   required         documentation Validating carrier AcctgCode   s:string   required         documentation Validating carrier's accounting code EMDType   derived by: s:string   required         documentation EMD type: S - EMD-S, A - EMD-A RFIC   s:string   optional         documentation RFIC code EMDVAT   s:string            documentation EMD VAT endorsement string EMDTaxRate   s:decimal            documentation EMD tax rate percent
source	<s:element name="EMD" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="EMDData" type="TicketDataType" minOccurs="0"/>       <s:element name="EMDReceipt" type="s:string" minOccurs="0">         <s:annotation>           <s:documentation>EMD receipt - free text</s:documentation>         </s:annotation>       </s:element>     </s:sequence>     <s:attribute name="EMDRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Reference to this item</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="PaxRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Passenger reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="RemarkRefs" type="strlist">       <s:annotation>         <s:documentation>References to segment reservations</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="StockProvider" type="s:string" use="required">       <s:annotation>         <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="EMDNumber" type="s:string" use="required">       <s:annotation>         <s:documentation>EMD number</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ValidatingAirline" type="s:string" use="required">       <s:annotation>         <s:documentation>Validating carrier</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="AcctgCode" type="s:string" use="required">       <s:annotation>         <s:documentation>Validating carrier's accounting code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="EMDType" use="required">       <s:annotation>         <s:documentation>EMD type: S - EMD-S, A - EMD-A </s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:enumeration value="S"/>           <s:enumeration value="A"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="RFIC" type="s:string" use="optional">       <s:annotation>         <s:documentation>RFIC code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="EMDVAT" type="s:string">       <s:annotation>         <s:documentation>EMD VAT endorsement string</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="EMDTaxRate" type="s:decimal">       <s:annotation>         <s:documentation>EMD tax rate percent</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute EMDInfoType/EMD/@EMDRef

type	s:string
properties	use  required
annotation	documentation Reference to this item
source	<s:attribute name="EMDRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Reference to this item</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@PaxRef

type	s:string
properties	use  required
annotation	documentation Passenger reference
source	<s:attribute name="PaxRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Passenger reference</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@RemarkRefs

type	strlist
annotation	documentation References to segment reservations
source	<s:attribute name="RemarkRefs" type="strlist">   <s:annotation>     <s:documentation>References to segment reservations</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@StockProvider

type	s:string
properties	use  required
annotation	documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)
source	<s:attribute name="StockProvider" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@EMDNumber

type	s:string
properties	use  required
annotation	documentation EMD number
source	<s:attribute name="EMDNumber" type="s:string" use="required">   <s:annotation>     <s:documentation>EMD number</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@ValidatingAirline

type	s:string
properties	use  required
annotation	documentation Validating carrier
source	<s:attribute name="ValidatingAirline" type="s:string" use="required">   <s:annotation>     <s:documentation>Validating carrier</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@AcctgCode

type	s:string
properties	use  required
annotation	documentation Validating carrier's accounting code
source	<s:attribute name="AcctgCode" type="s:string" use="required">   <s:annotation>     <s:documentation>Validating carrier's accounting code</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@EMDType

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation enumeration  S enumeration  A
annotation	documentation EMD type: S - EMD-S, A - EMD-A
source	<s:attribute name="EMDType" use="required">   <s:annotation>     <s:documentation>EMD type: S - EMD-S, A - EMD-A </s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="S"/>       <s:enumeration value="A"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute EMDInfoType/EMD/@RFIC

type	s:string
properties	use  optional
annotation	documentation RFIC code
source	<s:attribute name="RFIC" type="s:string" use="optional">   <s:annotation>     <s:documentation>RFIC code</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@EMDVAT

type	s:string
annotation	documentation EMD VAT endorsement string
source	<s:attribute name="EMDVAT" type="s:string">   <s:annotation>     <s:documentation>EMD VAT endorsement string</s:documentation>   </s:annotation> </s:attribute>

attribute EMDInfoType/EMD/@EMDTaxRate

type	s:decimal
annotation	documentation EMD tax rate percent
source	<s:attribute name="EMDTaxRate" type="s:decimal">   <s:annotation>     <s:documentation>EMD tax rate percent</s:documentation>   </s:annotation> </s:attribute>

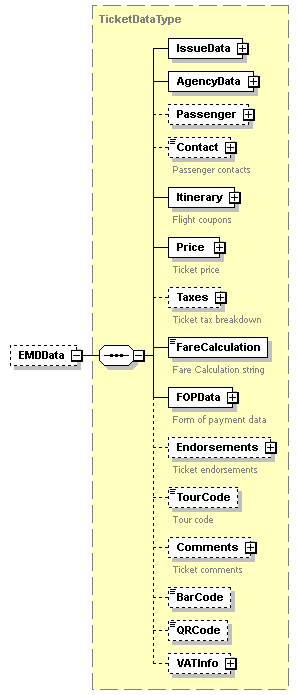

element EMDInfoType/EMD/EMDData

diagram
type	TicketDataType
properties	minOcc  0 maxOcc  1 content  complex
children	IssueData AgencyData Passenger Contact Itinerary Price Taxes FareCalculation FOPData Endorsements TourCode Comments BarCode QRCode VATInfo
source	<s:element name="EMDData" type="TicketDataType" minOccurs="0"/>

element EMDInfoType/EMD/EMDReceipt

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation EMD receipt - free text
source	<s:element name="EMDReceipt" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>EMD receipt - free text</s:documentation>   </s:annotation> </s:element>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
