element SIG_ScreenTextRS

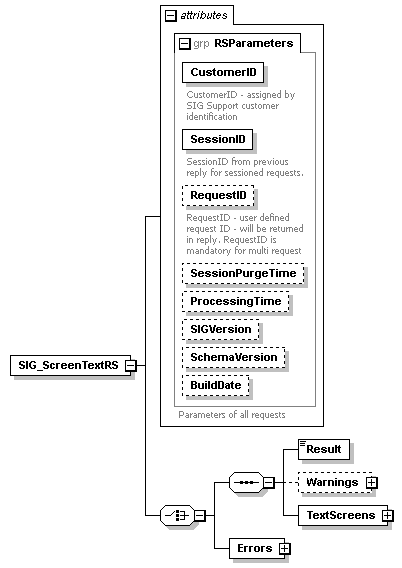

diagram
properties	content  complex
children	Result Warnings TextScreens Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
source	<s:element name="SIG_ScreenTextRS">   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Result" type="ResultType"/>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:element name="TextScreens">           <s:complexType>             <s:sequence>               <s:element name="TextScreen" maxOccurs="unbounded">                 <s:complexType>                   <s:sequence>                     <s:element name="TextData" type="s:string" maxOccurs="unbounded"/>                   </s:sequence>                 </s:complexType>               </s:element>             </s:sequence>           </s:complexType>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_ScreenTextRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
source	<s:element name="Result" type="ResultType"/>

element SIG_ScreenTextRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_ScreenTextRS/TextScreens

diagram
properties	content  complex
children	TextScreen
source	<s:element name="TextScreens">   <s:complexType>     <s:sequence>       <s:element name="TextScreen" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="TextData" type="s:string" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_ScreenTextRS/TextScreens/TextScreen

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	TextData
source	<s:element name="TextScreen" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="TextData" type="s:string" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element SIG_ScreenTextRS/TextScreens/TextScreen/TextData

diagram
type	s:string
properties	minOcc  1 maxOcc  unbounded content  simple
source	<s:element name="TextData" type="s:string" maxOccurs="unbounded"/>

element SIG_ScreenTextRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
