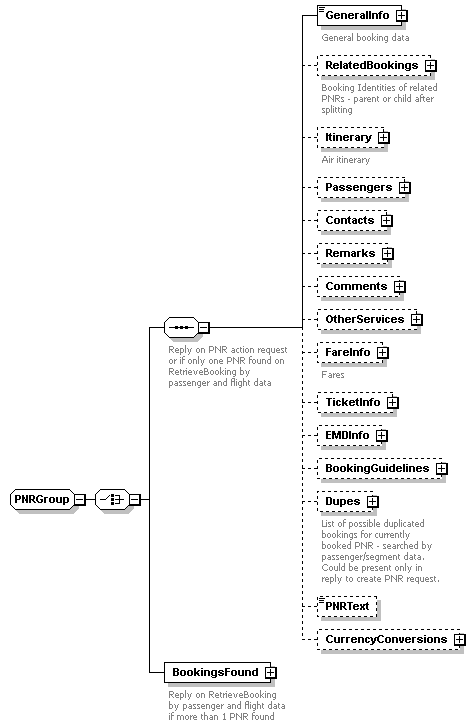

group PNRGroup

diagram
children	GeneralInfo RelatedBookings Itinerary Passengers Contacts Remarks Comments OtherServices FareInfo TicketInfo EMDInfo BookingGuidelines Dupes PNRText CurrencyConversions BookingsFound
used by	elements  SIG_AirBookRS SIG_AirPriceRS
source	<s:group name="PNRGroup">   <s:choice>     <s:sequence>       <s:annotation>         <s:documentation>Reply on PNR action request or if only one PNR found on RetrieveBooking by passenger and flight data</s:documentation>       </s:annotation>       <s:element name="GeneralInfo" type="GeneralInfoRSType">         <s:annotation>           <s:documentation>General booking data</s:documentation>         </s:annotation>       </s:element>       <s:element name="RelatedBookings" minOccurs="0">         <s:annotation>           <s:documentation>Booking Identities of related PNRs - parent or child after splitting</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="BookingIdentity" type="RelatedBookingInfoType" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="Itinerary" type="AirItineraryType" minOccurs="0">         <s:annotation>           <s:documentation>Air itinerary</s:documentation>         </s:annotation>       </s:element>       <s:element name="Passengers" type="PassengersType" minOccurs="0"/>       <s:element name="Contacts" type="ContactsType" minOccurs="0"/>       <s:element name="Remarks" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="Comments" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="Comment" type="CommentType" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="OtherServices" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="OSI" type="OSIType" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="FareInfo" type="FareInfoType" minOccurs="0">         <s:annotation>           <s:documentation>Fares</s:documentation>         </s:annotation>       </s:element>       <s:element name="TicketInfo" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="Ticket" maxOccurs="unbounded">               <s:complexType>                 <s:sequence>                   <s:element name="TicketData" type="TicketDataType" minOccurs="0"/>                   <s:element name="ItineraryReceipt" minOccurs="0">                     <s:annotation>                       <s:documentation>Itinerary receipt - free text</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:simpleContent>                         <s:extension base="s:string">                           <s:attribute name="Type" type="ItinRctType">                             <s:annotation>                               <s:documentation>Receipt data type. Default value - Text</s:documentation>                             </s:annotation>                           </s:attribute>                         </s:extension>                       </s:simpleContent>                     </s:complexType>                   </s:element>                   <s:element name="MiscDocuments" minOccurs="0">                     <s:complexType>                       <s:sequence>                         <s:element name="EMD" maxOccurs="unbounded">                           <s:annotation>                             <s:documentation>Electronic miscellaneous document</s:documentation>                           </s:annotation>                           <s:complexType>                             <s:sequence>                               <s:element name="Text" type="s:string">                                 <s:annotation>                                   <s:documentation>EMD - Free text</s:documentation>                                 </s:annotation>                               </s:element>                             </s:sequence>                             <s:attribute name="Number" type="s:string" use="required"/>                             <s:attribute name="Type" type="s:string" use="required"/>                             <s:attribute name="Currency" type="s:string" use="required"/>                             <s:attribute name="Amount" type="s:decimal" use="required"/>                           </s:complexType>                         </s:element>                       </s:sequence>                     </s:complexType>                   </s:element>                 </s:sequence>                 <s:attribute name="TicketRef" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Reference to this item</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="PaxRef" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Passenger reference</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="ReservationRefs" type="strlist" use="required">                   <s:annotation>                     <s:documentation>References to segment reservations</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="FareRef" type="s:string">                   <s:annotation>                     <s:documentation>Fare reference</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="StockProvider" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="TicketNumber" type="s:string" use="optional">                   <s:annotation>                     <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="ValidatingAirline" type="s:string" use="optional">                   <s:annotation>                     <s:documentation>Validating carrier</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="AcctgCode" type="s:string" use="optional">                   <s:annotation>                     <s:documentation>Validating carrier's accounting code</s:documentation>                   </s:annotation>                 </s:attribute>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="EMDInfo" type="EMDInfoType" minOccurs="0"/>       <s:element name="BookingGuidelines" type="BookingGuidelinesType" minOccurs="0"/>       <s:element name="Dupes" minOccurs="0">         <s:annotation>           <s:documentation>List of possible duplicated bookings for currently booked PNR - searched by passenger/segment data. Could be present only in reply to create PNR request.</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="Dupe" maxOccurs="unbounded">               <s:complexType>                 <s:attribute name="PaxRef" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Passenger reference</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="FlightRef" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Flight reference</s:documentation>                   </s:annotation>                 </s:attribute>                 <s:attribute name="BookingReference" type="s:string" use="required">                   <s:annotation>                     <s:documentation>Booking reference of duplicated PNR</s:documentation>                   </s:annotation>                 </s:attribute>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>       <s:element name="PNRText" type="s:string" minOccurs="0"/>       <s:element name="CurrencyConversions" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="CurrencyConversion" type="CurrencyConversionRplType" maxOccurs="unbounded"/>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>     <s:element name="BookingsFound">       <s:annotation>         <s:documentation>Reply on RetrieveBooking by passenger and flight data if more than 1 PNR found</s:documentation>       </s:annotation>       <s:complexType>         <s:sequence>           <s:element name="BookingInfo" type="BookingInfoType" minOccurs="0" maxOccurs="unbounded"/>         </s:sequence>         <s:attribute name="Count">           <s:simpleType>             <s:restriction base="s:int">               <s:minInclusive value="0"/>             </s:restriction>           </s:simpleType>         </s:attribute>       </s:complexType>     </s:element>   </s:choice> </s:group>

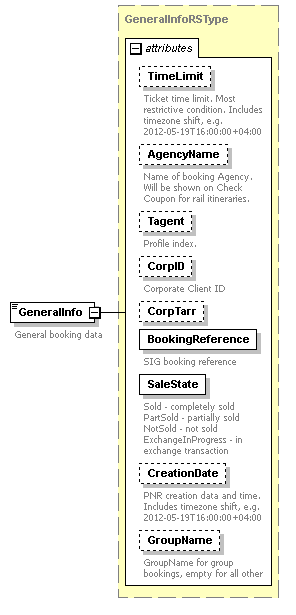

element PNRGroup/GeneralInfo

diagram
type	GeneralInfoRSType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TimeLimit   s:dateTime   optional         documentation Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00 AgencyName   s:string            documentation Name of booking Agency. Will be shown on Check Coupon for rail itineraries. Tagent   s:string            documentation Profile index. CorpID   s:string            documentation Corporate Client ID CorpTarr   s:string            BookingReference   s:string   required         documentation SIG booking reference SaleState   derived by: s:string   required         documentation Sold - completely sold PartSold - partially sold NotSold - not sold ExchangeInProgress - in exchange transaction CreationDate   s:dateTime   optional         documentation PNR creation data and time. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00 GroupName   s:string   optional         documentation GroupName for group bookings, empty for all other
annotation	documentation General booking data
source	<s:element name="GeneralInfo" type="GeneralInfoRSType">   <s:annotation>     <s:documentation>General booking data</s:documentation>   </s:annotation> </s:element>

element PNRGroup/RelatedBookings

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	BookingIdentity
annotation	documentation Booking Identities of related PNRs - parent or child after splitting
source	<s:element name="RelatedBookings" minOccurs="0">   <s:annotation>     <s:documentation>Booking Identities of related PNRs - parent or child after splitting</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="BookingIdentity" type="RelatedBookingInfoType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

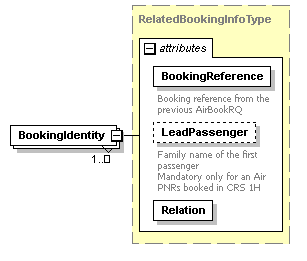

element PNRGroup/RelatedBookings/BookingIdentity

diagram
type	RelatedBookingInfoType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H Relation   derived by: s:string   required
source	<s:element name="BookingIdentity" type="RelatedBookingInfoType" maxOccurs="unbounded"/>

element PNRGroup/Itinerary

diagram
type	AirItineraryType
properties	minOcc  0 maxOcc  1 content  complex
children	FlightSegment
annotation	documentation Air itinerary
source	<s:element name="Itinerary" type="AirItineraryType" minOccurs="0">   <s:annotation>     <s:documentation>Air itinerary</s:documentation>   </s:annotation> </s:element>

element PNRGroup/Passengers

diagram
type	PassengersType
properties	minOcc  0 maxOcc  1 content  complex
children	Passenger
source	<s:element name="Passengers" type="PassengersType" minOccurs="0"/>

element PNRGroup/Contacts

diagram
type	ContactsType
properties	minOcc  0 maxOcc  1 content  complex
children	Contact
source	<s:element name="Contacts" type="ContactsType" minOccurs="0"/>

element PNRGroup/Remarks

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Remark
source	<s:element name="Remarks" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

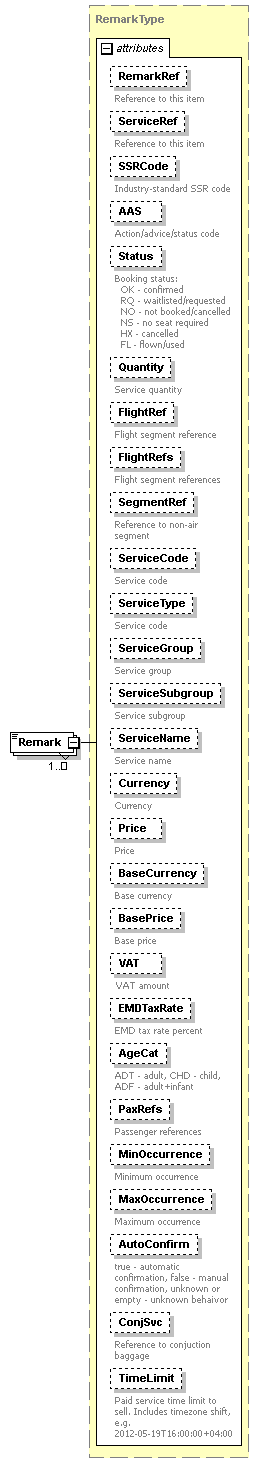

element PNRGroup/Remarks/Remark

diagram
type	RemarkType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation RemarkRef   derived by: s:string            documentation Reference to this item ServiceRef   derived by: s:string            documentation Reference to this item SSRCode   derived by: s:string            documentation Industry-standard SSR code AAS   derived by: s:string            documentation Action/advice/status code Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   FL - flown/used Quantity   s:int            documentation Service quantity FlightRef   s:string            documentation Flight segment reference FlightRefs   strlist            documentation Flight segment references SegmentRef   s:string            documentation Reference to non-air segment ServiceCode   s:string            documentation Service code ServiceType   s:string            documentation Service code ServiceGroup   s:string            documentation Service group ServiceSubgroup   s:string            documentation Service subgroup ServiceName   s:string            documentation Service name Currency   s:string            documentation Currency Price   derived by: s:decimal            documentation Price BaseCurrency   s:string            documentation Base currency BasePrice   derived by: s:decimal            documentation Base price VAT   derived by: s:decimal            documentation VAT amount EMDTaxRate   s:decimal            documentation EMD tax rate percent AgeCat   strlist            documentation ADT - adult, CHD - child, ADF - adult+infant PaxRefs   strlist            documentation Passenger references MinOccurrence   s:decimal            documentation Minimum occurrence MaxOccurrence   s:decimal            documentation Maximum occurrence AutoConfirm   s:string            documentation true - automatic confirmation, false - manual confirmation, unknown or empty - unknown behaivor ConjSvc   s:string            documentation Reference to conjuction baggage TimeLimit   s:dateTime   optional         documentation Paid service time limit to sell. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00
source	<s:element name="Remark" type="RemarkType" maxOccurs="unbounded"/>

element PNRGroup/Comments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Comment
source	<s:element name="Comments" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Comment" type="CommentType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

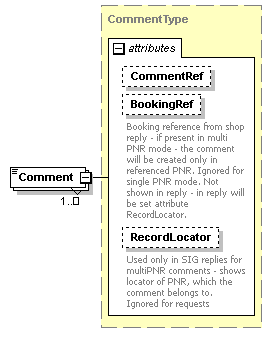

element PNRGroup/Comments/Comment

diagram
type	CommentType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CommentRef   s:string            BookingRef   s:string   optional         documentation Booking reference from shop reply - if present in multi PNR mode - the comment will be created only in referenced PNR. Ignored for single PNR mode. Not shown in reply - in reply will be set attribute RecordLocator. RecordLocator   s:string   optional         documentation Used only in SIG replies for multiPNR comments - shows locator of PNR, which the comment belongs to. Ignored for requests
source	<s:element name="Comment" type="CommentType" maxOccurs="unbounded"/>

element PNRGroup/OtherServices

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	OSI
source	<s:element name="OtherServices" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="OSI" type="OSIType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element PNRGroup/OtherServices/OSI

diagram
type	OSIType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation OsiRef   derived by: s:string   required         documentation Reference to this item FlightRef   s:string            documentation Flight segment reference AK   s:string            documentation AK Either AK or FlightRef should be filled. Otherway error will be returned.
source	<s:element name="OSI" type="OSIType" maxOccurs="unbounded"/>

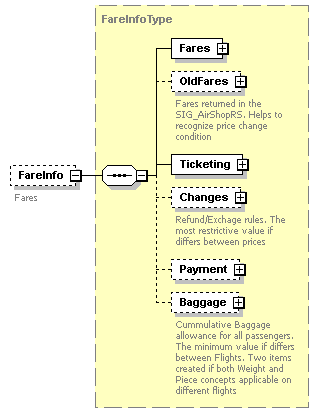

element PNRGroup/FareInfo

diagram
type	FareInfoType
properties	minOcc  0 maxOcc  1 content  complex
children	Fares OldFares Ticketing Changes Payment Baggage
annotation	documentation Fares
source	<s:element name="FareInfo" type="FareInfoType" minOccurs="0">   <s:annotation>     <s:documentation>Fares</s:documentation>   </s:annotation> </s:element>

element PNRGroup/TicketInfo

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Ticket
source	<s:element name="TicketInfo" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="Ticket" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="TicketData" type="TicketDataType" minOccurs="0"/>             <s:element name="ItineraryReceipt" minOccurs="0">               <s:annotation>                 <s:documentation>Itinerary receipt - free text</s:documentation>               </s:annotation>               <s:complexType>                 <s:simpleContent>                   <s:extension base="s:string">                     <s:attribute name="Type" type="ItinRctType">                       <s:annotation>                         <s:documentation>Receipt data type. Default value - Text</s:documentation>                       </s:annotation>                     </s:attribute>                   </s:extension>                 </s:simpleContent>               </s:complexType>             </s:element>             <s:element name="MiscDocuments" minOccurs="0">               <s:complexType>                 <s:sequence>                   <s:element name="EMD" maxOccurs="unbounded">                     <s:annotation>                       <s:documentation>Electronic miscellaneous document</s:documentation>                     </s:annotation>                     <s:complexType>                       <s:sequence>                         <s:element name="Text" type="s:string">                           <s:annotation>                             <s:documentation>EMD - Free text</s:documentation>                           </s:annotation>                         </s:element>                       </s:sequence>                       <s:attribute name="Number" type="s:string" use="required"/>                       <s:attribute name="Type" type="s:string" use="required"/>                       <s:attribute name="Currency" type="s:string" use="required"/>                       <s:attribute name="Amount" type="s:decimal" use="required"/>                     </s:complexType>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>           </s:sequence>           <s:attribute name="TicketRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Reference to this item</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="PaxRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Passenger reference</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="ReservationRefs" type="strlist" use="required">             <s:annotation>               <s:documentation>References to segment reservations</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="FareRef" type="s:string">             <s:annotation>               <s:documentation>Fare reference</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="StockProvider" type="s:string" use="required">             <s:annotation>               <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="TicketNumber" type="s:string" use="optional">             <s:annotation>               <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="ValidatingAirline" type="s:string" use="optional">             <s:annotation>               <s:documentation>Validating carrier</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="AcctgCode" type="s:string" use="optional">             <s:annotation>               <s:documentation>Validating carrier's accounting code</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

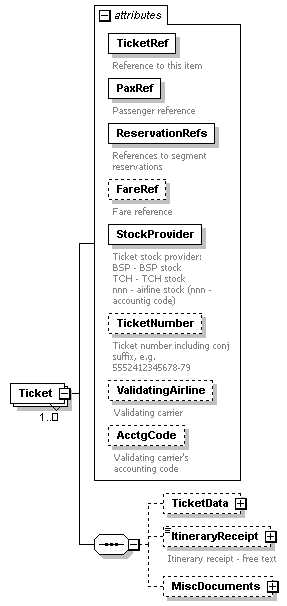

element PNRGroup/TicketInfo/Ticket

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	TicketData ItineraryReceipt MiscDocuments
attributes	Name   Type   Use   Default   Fixed   Annotation TicketRef   s:string   required         documentation Reference to this item PaxRef   s:string   required         documentation Passenger reference ReservationRefs   strlist   required         documentation References to segment reservations FareRef   s:string            documentation Fare reference StockProvider   s:string   required         documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code) TicketNumber   s:string   optional         documentation Ticket number including conj suffix, e.g. 5552412345678-79 ValidatingAirline   s:string   optional         documentation Validating carrier AcctgCode   s:string   optional         documentation Validating carrier's accounting code
source	<s:element name="Ticket" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="TicketData" type="TicketDataType" minOccurs="0"/>       <s:element name="ItineraryReceipt" minOccurs="0">         <s:annotation>           <s:documentation>Itinerary receipt - free text</s:documentation>         </s:annotation>         <s:complexType>           <s:simpleContent>             <s:extension base="s:string">               <s:attribute name="Type" type="ItinRctType">                 <s:annotation>                   <s:documentation>Receipt data type. Default value - Text</s:documentation>                 </s:annotation>               </s:attribute>             </s:extension>           </s:simpleContent>         </s:complexType>       </s:element>       <s:element name="MiscDocuments" minOccurs="0">         <s:complexType>           <s:sequence>             <s:element name="EMD" maxOccurs="unbounded">               <s:annotation>                 <s:documentation>Electronic miscellaneous document</s:documentation>               </s:annotation>               <s:complexType>                 <s:sequence>                   <s:element name="Text" type="s:string">                     <s:annotation>                       <s:documentation>EMD - Free text</s:documentation>                     </s:annotation>                   </s:element>                 </s:sequence>                 <s:attribute name="Number" type="s:string" use="required"/>                 <s:attribute name="Type" type="s:string" use="required"/>                 <s:attribute name="Currency" type="s:string" use="required"/>                 <s:attribute name="Amount" type="s:decimal" use="required"/>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>     <s:attribute name="TicketRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Reference to this item</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="PaxRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Passenger reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ReservationRefs" type="strlist" use="required">       <s:annotation>         <s:documentation>References to segment reservations</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="FareRef" type="s:string">       <s:annotation>         <s:documentation>Fare reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="StockProvider" type="s:string" use="required">       <s:annotation>         <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="TicketNumber" type="s:string" use="optional">       <s:annotation>         <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ValidatingAirline" type="s:string" use="optional">       <s:annotation>         <s:documentation>Validating carrier</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="AcctgCode" type="s:string" use="optional">       <s:annotation>         <s:documentation>Validating carrier's accounting code</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute PNRGroup/TicketInfo/Ticket/@TicketRef

type	s:string
properties	use  required
annotation	documentation Reference to this item
source	<s:attribute name="TicketRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Reference to this item</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@PaxRef

type	s:string
properties	use  required
annotation	documentation Passenger reference
source	<s:attribute name="PaxRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Passenger reference</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@ReservationRefs

type	strlist
properties	use  required
annotation	documentation References to segment reservations
source	<s:attribute name="ReservationRefs" type="strlist" use="required">   <s:annotation>     <s:documentation>References to segment reservations</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@FareRef

type	s:string
annotation	documentation Fare reference
source	<s:attribute name="FareRef" type="s:string">   <s:annotation>     <s:documentation>Fare reference</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@StockProvider

type	s:string
properties	use  required
annotation	documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)
source	<s:attribute name="StockProvider" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@TicketNumber

type	s:string
properties	use  optional
annotation	documentation Ticket number including conj suffix, e.g. 5552412345678-79
source	<s:attribute name="TicketNumber" type="s:string" use="optional">   <s:annotation>     <s:documentation>Ticket number including conj suffix, e.g. 5552412345678-79</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@ValidatingAirline

type	s:string
properties	use  optional
annotation	documentation Validating carrier
source	<s:attribute name="ValidatingAirline" type="s:string" use="optional">   <s:annotation>     <s:documentation>Validating carrier</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/TicketInfo/Ticket/@AcctgCode

type	s:string
properties	use  optional
annotation	documentation Validating carrier's accounting code
source	<s:attribute name="AcctgCode" type="s:string" use="optional">   <s:annotation>     <s:documentation>Validating carrier's accounting code</s:documentation>   </s:annotation> </s:attribute>

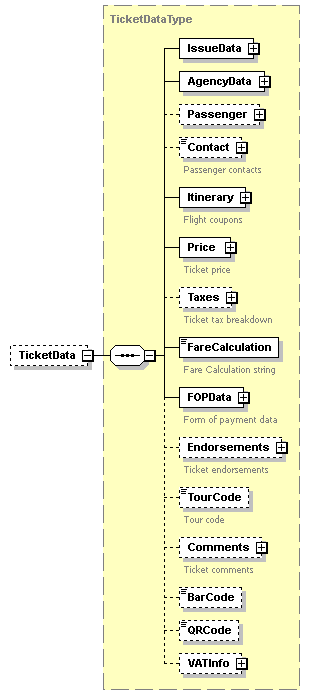

element PNRGroup/TicketInfo/Ticket/TicketData

diagram
type	TicketDataType
properties	minOcc  0 maxOcc  1 content  complex
children	IssueData AgencyData Passenger Contact Itinerary Price Taxes FareCalculation FOPData Endorsements TourCode Comments BarCode QRCode VATInfo
source	<s:element name="TicketData" type="TicketDataType" minOccurs="0"/>

element PNRGroup/TicketInfo/Ticket/ItineraryReceipt

diagram
type	extension of s:string
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   ItinRctType            documentation Receipt data type. Default value - Text
annotation	documentation Itinerary receipt - free text
source	<s:element name="ItineraryReceipt" minOccurs="0">   <s:annotation>     <s:documentation>Itinerary receipt - free text</s:documentation>   </s:annotation>   <s:complexType>     <s:simpleContent>       <s:extension base="s:string">         <s:attribute name="Type" type="ItinRctType">           <s:annotation>             <s:documentation>Receipt data type. Default value - Text</s:documentation>           </s:annotation>         </s:attribute>       </s:extension>     </s:simpleContent>   </s:complexType> </s:element>

attribute PNRGroup/TicketInfo/Ticket/ItineraryReceipt/@Type

type	ItinRctType
facets	Kind  Value  Annotation enumeration  Text enumeration  Link enumeration  PDF-Base64
annotation	documentation Receipt data type. Default value - Text
source	<s:attribute name="Type" type="ItinRctType">   <s:annotation>     <s:documentation>Receipt data type. Default value - Text</s:documentation>   </s:annotation> </s:attribute>

element PNRGroup/TicketInfo/Ticket/MiscDocuments

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	EMD
source	<s:element name="MiscDocuments" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="EMD" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Electronic miscellaneous document</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="Text" type="s:string">               <s:annotation>                 <s:documentation>EMD - Free text</s:documentation>               </s:annotation>             </s:element>           </s:sequence>           <s:attribute name="Number" type="s:string" use="required"/>           <s:attribute name="Type" type="s:string" use="required"/>           <s:attribute name="Currency" type="s:string" use="required"/>           <s:attribute name="Amount" type="s:decimal" use="required"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element PNRGroup/TicketInfo/Ticket/MiscDocuments/EMD

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	Text
attributes	Name   Type   Use   Default   Fixed   Annotation Number   s:string   required         Type   s:string   required         Currency   s:string   required         Amount   s:decimal   required
annotation	documentation Electronic miscellaneous document
source	<s:element name="EMD" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Electronic miscellaneous document</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Text" type="s:string">         <s:annotation>           <s:documentation>EMD - Free text</s:documentation>         </s:annotation>       </s:element>     </s:sequence>     <s:attribute name="Number" type="s:string" use="required"/>     <s:attribute name="Type" type="s:string" use="required"/>     <s:attribute name="Currency" type="s:string" use="required"/>     <s:attribute name="Amount" type="s:decimal" use="required"/>   </s:complexType> </s:element>

attribute PNRGroup/TicketInfo/Ticket/MiscDocuments/EMD/@Number

type	s:string
properties	use  required
source	<s:attribute name="Number" type="s:string" use="required"/>

attribute PNRGroup/TicketInfo/Ticket/MiscDocuments/EMD/@Type

type	s:string
properties	use  required
source	<s:attribute name="Type" type="s:string" use="required"/>

attribute PNRGroup/TicketInfo/Ticket/MiscDocuments/EMD/@Currency

type	s:string
properties	use  required
source	<s:attribute name="Currency" type="s:string" use="required"/>

attribute PNRGroup/TicketInfo/Ticket/MiscDocuments/EMD/@Amount

type	s:decimal
properties	use  required
source	<s:attribute name="Amount" type="s:decimal" use="required"/>

element PNRGroup/TicketInfo/Ticket/MiscDocuments/EMD/Text

diagram
type	s:string
properties	content  simple
annotation	documentation EMD - Free text
source	<s:element name="Text" type="s:string">   <s:annotation>     <s:documentation>EMD - Free text</s:documentation>   </s:annotation> </s:element>

element PNRGroup/EMDInfo

diagram
type	EMDInfoType
properties	minOcc  0 maxOcc  1 content  complex
children	EMD
source	<s:element name="EMDInfo" type="EMDInfoType" minOccurs="0"/>

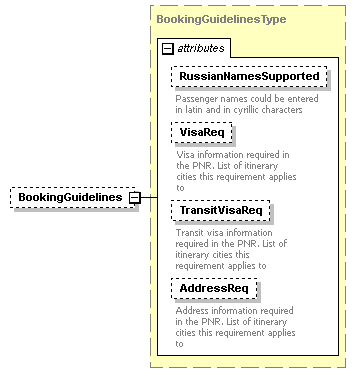

element PNRGroup/BookingGuidelines

diagram
type	BookingGuidelinesType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation RussianNamesSupported   s:boolean            documentation Passenger names could be entered in latin and in cyrillic characters VisaReq   s:string            documentation Visa information required in the PNR. List of itinerary cities this requirement applies to TransitVisaReq   s:string            documentation Transit visa information required in the PNR. List of itinerary cities this requirement applies to AddressReq   s:string            documentation Address information required in the PNR. List of itinerary cities this requirement applies to
source	<s:element name="BookingGuidelines" type="BookingGuidelinesType" minOccurs="0"/>

element PNRGroup/Dupes

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Dupe
annotation	documentation List of possible duplicated bookings for currently booked PNR - searched by passenger/segment data. Could be present only in reply to create PNR request.
source	<s:element name="Dupes" minOccurs="0">   <s:annotation>     <s:documentation>List of possible duplicated bookings for currently booked PNR - searched by passenger/segment data. Could be present only in reply to create PNR request.</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Dupe" maxOccurs="unbounded">         <s:complexType>           <s:attribute name="PaxRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Passenger reference</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="FlightRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Flight reference</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="BookingReference" type="s:string" use="required">             <s:annotation>               <s:documentation>Booking reference of duplicated PNR</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element PNRGroup/Dupes/Dupe

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation PaxRef   s:string   required         documentation Passenger reference FlightRef   s:string   required         documentation Flight reference BookingReference   s:string   required         documentation Booking reference of duplicated PNR
source	<s:element name="Dupe" maxOccurs="unbounded">   <s:complexType>     <s:attribute name="PaxRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Passenger reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="FlightRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Flight reference</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="BookingReference" type="s:string" use="required">       <s:annotation>         <s:documentation>Booking reference of duplicated PNR</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute PNRGroup/Dupes/Dupe/@PaxRef

type	s:string
properties	use  required
annotation	documentation Passenger reference
source	<s:attribute name="PaxRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Passenger reference</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/Dupes/Dupe/@FlightRef

type	s:string
properties	use  required
annotation	documentation Flight reference
source	<s:attribute name="FlightRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Flight reference</s:documentation>   </s:annotation> </s:attribute>

attribute PNRGroup/Dupes/Dupe/@BookingReference

type	s:string
properties	use  required
annotation	documentation Booking reference of duplicated PNR
source	<s:attribute name="BookingReference" type="s:string" use="required">   <s:annotation>     <s:documentation>Booking reference of duplicated PNR</s:documentation>   </s:annotation> </s:attribute>

element PNRGroup/PNRText

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
source	<s:element name="PNRText" type="s:string" minOccurs="0"/>

element PNRGroup/CurrencyConversions

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	CurrencyConversion
source	<s:element name="CurrencyConversions" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="CurrencyConversion" type="CurrencyConversionRplType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

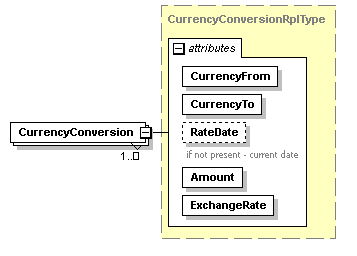

element PNRGroup/CurrencyConversions/CurrencyConversion

diagram
type	CurrencyConversionRplType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CurrencyFrom   s:string   required         CurrencyTo   s:string   required         RateDate   s:date   optional         documentation if not present - current date Amount   s:decimal   required         ExchangeRate   s:double   required
source	<s:element name="CurrencyConversion" type="CurrencyConversionRplType" maxOccurs="unbounded"/>

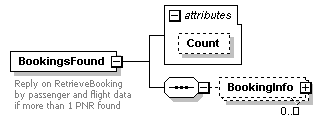

element PNRGroup/BookingsFound

diagram
properties	content  complex
children	BookingInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Count   derived by: s:int
annotation	documentation Reply on RetrieveBooking by passenger and flight data if more than 1 PNR found
source	<s:element name="BookingsFound">   <s:annotation>     <s:documentation>Reply on RetrieveBooking by passenger and flight data if more than 1 PNR found</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="BookingInfo" type="BookingInfoType" minOccurs="0" maxOccurs="unbounded"/>     </s:sequence>     <s:attribute name="Count">       <s:simpleType>         <s:restriction base="s:int">           <s:minInclusive value="0"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute PNRGroup/BookingsFound/@Count

type	restriction of s:int
facets	Kind  Value  Annotation minInclusive  0
source	<s:attribute name="Count">   <s:simpleType>     <s:restriction base="s:int">       <s:minInclusive value="0"/>     </s:restriction>   </s:simpleType> </s:attribute>

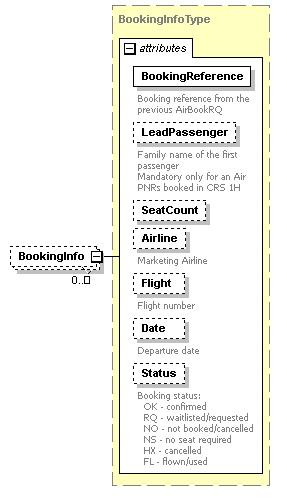

element PNRGroup/BookingsFound/BookingInfo

diagram
type	BookingInfoType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H SeatCount   derived by: s:int            Airline   derived by: s:string            documentation Marketing Airline Flight   derived by: s:string            documentation Flight number Date   s:date            documentation Departure date Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   FL - flown/used
source	<s:element name="BookingInfo" type="BookingInfoType" minOccurs="0" maxOccurs="unbounded"/>
