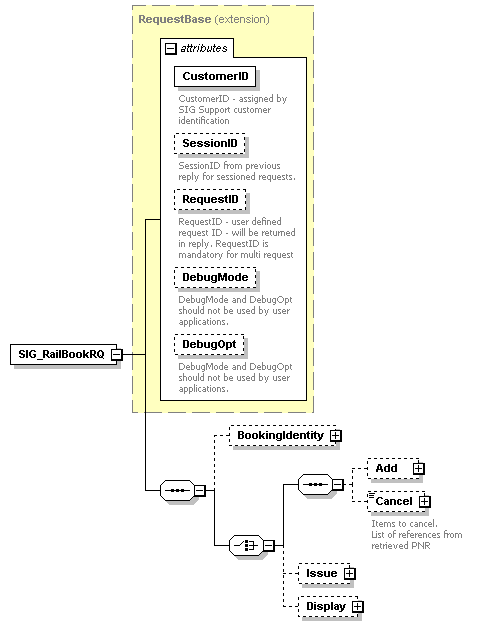

element SIG_RailBookRQ

diagram
type	extension of RequestBase
properties	content  complex
children	BookingIdentity Add Cancel Issue Display
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
source	<s:element name="SIG_RailBookRQ">   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:sequence>           <s:element name="BookingIdentity" type="BookingIdentityType" minOccurs="0"/>           <s:choice>             <s:sequence>               <s:element name="Add" type="PNRDataType" minOccurs="0"/>               <s:element name="Cancel" type="CancelType" minOccurs="0">                 <s:annotation>                   <s:documentation>Items to cancel. List of references from retrieved PNR</s:documentation>                 </s:annotation>               </s:element>             </s:sequence>             <s:element name="Issue" type="IssueType" minOccurs="0"/>             <s:element name="Display" type="DisplayType" minOccurs="0"/>           </s:choice>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

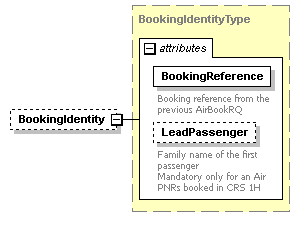

element SIG_RailBookRQ/BookingIdentity

diagram
type	BookingIdentityType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H
source	<s:element name="BookingIdentity" type="BookingIdentityType" minOccurs="0"/>

element SIG_RailBookRQ/Add

diagram
type	PNRDataType
properties	minOcc  0 maxOcc  1 content  complex
children	GeneralInfo Passengers Contacts Remarks Comments OtherServices
source	<s:element name="Add" type="PNRDataType" minOccurs="0"/>

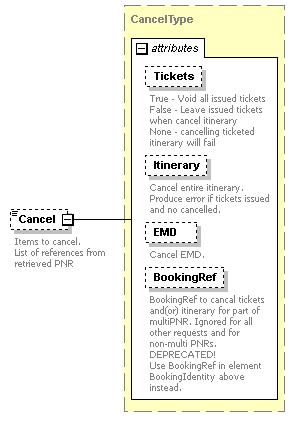

element SIG_RailBookRQ/Cancel

diagram
type	CancelType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Tickets   s:boolean   optional         documentation True - Void all issued tickets False - Leave issued tickets when cancel itinerary None - cancelling ticketed itinerary will fail Itinerary   s:boolean   optional         documentation Cancel entire itinerary. Produce error if tickets issued and no cancelled. EMD   s:boolean   optional         documentation Cancel EMD. BookingRef   s:string            documentation BookingRef to cancal tickets and(or) itinerary for part of multiPNR. Ignored for all other requests and for non-multi PNRs. DEPRECATED! Use BookingRef in element BookingIdentity above instead.
annotation	documentation Items to cancel. List of references from retrieved PNR
source	<s:element name="Cancel" type="CancelType" minOccurs="0">   <s:annotation>     <s:documentation>Items to cancel. List of references from retrieved PNR</s:documentation>   </s:annotation> </s:element>

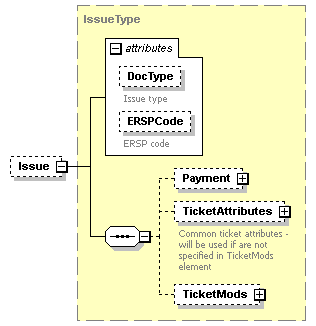

element SIG_RailBookRQ/Issue

diagram
type	IssueType
properties	minOcc  0 maxOcc  1 content  complex
children	Payment TicketAttributes TicketMods
attributes	Name   Type   Use   Default   Fixed   Annotation DocType   derived by: s:string            documentation Issue type ERSPCode   s:string            documentation ERSP code
source	<s:element name="Issue" type="IssueType" minOccurs="0"/>

element SIG_RailBookRQ/Display

diagram
type	DisplayType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ItineraryReceipts   s:boolean            TicketData   s:boolean            PNRText   s:boolean   optional
source	<s:element name="Display" type="DisplayType" minOccurs="0"/>
