element SIG_RailAvailRS

diagram
properties	content  complex
children	Result Warnings ItineraryOptions Errors
used by	complexType  SIG_ResponseType

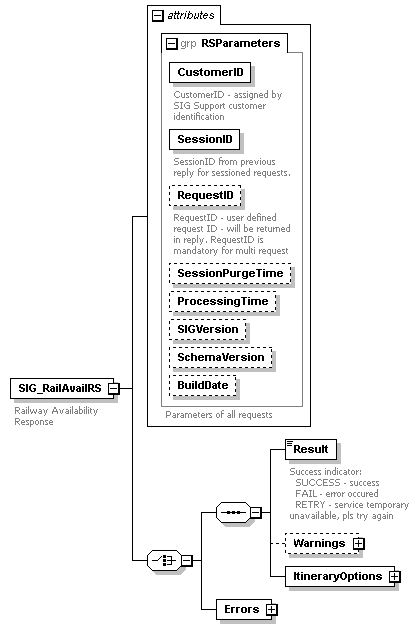

attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Railway Availability Response
source	<s:element name="SIG_RailAvailRS">   <s:annotation>     <s:documentation>Railway Availability Response</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Result" type="ResultType">           <s:annotation>             <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>           </s:annotation>         </s:element>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:element name="ItineraryOptions">           <s:complexType>             <s:sequence>               <s:element name="ItineraryOption" minOccurs="0" maxOccurs="unbounded">                 <s:complexType>                   <s:sequence>                     <s:element name="ItinerarySegments" type="RailItineraryType"/>                     <s:element name="Fares">                       <s:complexType>                         <s:sequence>                           <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">                             <s:complexType>                               <s:sequence>                                 <s:element name="Price" type="RailPriceType"/>                                 <s:element name="Reservation">                                   <s:complexType>                                     <s:attribute name="Refs" type="strlist" use="required"/>                                   </s:complexType>                                 </s:element>                                 <s:element name="RuleKey" type="s:string"/>                               </s:sequence>                               <s:attributeGroup ref="AvailFare"/>                               <s:attribute name="SeatType" type="s:string" use="required"/>                               <s:attribute name="ServiceClass" type="s:string" use="required"/>                               <s:attribute name="MealType" type="s:string" use="required"/>                             </s:complexType>                           </s:element>                         </s:sequence>                       </s:complexType>                     </s:element>                   </s:sequence>                   <s:attributeGroup ref="ItineraryDetails"/>                 </s:complexType>               </s:element>             </s:sequence>           </s:complexType>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_RailAvailRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>   </s:annotation> </s:element>

element SIG_RailAvailRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_RailAvailRS/ItineraryOptions

diagram
properties	content  complex
children	ItineraryOption
source	<s:element name="ItineraryOptions">   <s:complexType>     <s:sequence>       <s:element name="ItineraryOption" minOccurs="0" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="ItinerarySegments" type="RailItineraryType"/>             <s:element name="Fares">               <s:complexType>                 <s:sequence>                   <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">                     <s:complexType>                       <s:sequence>                         <s:element name="Price" type="RailPriceType"/>                         <s:element name="Reservation">                           <s:complexType>                             <s:attribute name="Refs" type="strlist" use="required"/>                           </s:complexType>                         </s:element>                         <s:element name="RuleKey" type="s:string"/>                       </s:sequence>                       <s:attributeGroup ref="AvailFare"/>                       <s:attribute name="SeatType" type="s:string" use="required"/>                       <s:attribute name="ServiceClass" type="s:string" use="required"/>                       <s:attribute name="MealType" type="s:string" use="required"/>                     </s:complexType>                   </s:element>                 </s:sequence>               </s:complexType>             </s:element>           </s:sequence>           <s:attributeGroup ref="ItineraryDetails"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	ItinerarySegments Fares

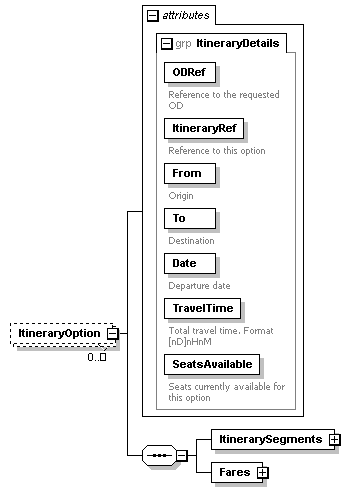

attributes	Name   Type   Use   Default   Fixed   Annotation ODRef   derived by: s:string   required         documentation Reference to the requested OD ItineraryRef   s:string   required         documentation Reference to this option From   s:string   required         documentation Origin To   s:string   required         documentation Destination Date   s:date   required         documentation Departure date TravelTime   s:duration   required         documentation Total travel time. Format [nD]nHnM SeatsAvailable   s:int   required         documentation Seats currently available for this option
source	<s:element name="ItineraryOption" minOccurs="0" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="ItinerarySegments" type="RailItineraryType"/>       <s:element name="Fares">         <s:complexType>           <s:sequence>             <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">               <s:complexType>                 <s:sequence>                   <s:element name="Price" type="RailPriceType"/>                   <s:element name="Reservation">                     <s:complexType>                       <s:attribute name="Refs" type="strlist" use="required"/>                     </s:complexType>                   </s:element>                   <s:element name="RuleKey" type="s:string"/>                 </s:sequence>                 <s:attributeGroup ref="AvailFare"/>                 <s:attribute name="SeatType" type="s:string" use="required"/>                 <s:attribute name="ServiceClass" type="s:string" use="required"/>                 <s:attribute name="MealType" type="s:string" use="required"/>               </s:complexType>             </s:element>           </s:sequence>         </s:complexType>       </s:element>     </s:sequence>     <s:attributeGroup ref="ItineraryDetails"/>   </s:complexType> </s:element>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption/ItinerarySegments

diagram
type	RailItineraryType
properties	content  complex
children	RailSegment
source	<s:element name="ItinerarySegments" type="RailItineraryType"/>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares

diagram
properties	content  complex
children	Fare
source	<s:element name="Fares">   <s:complexType>     <s:sequence>       <s:element name="Fare" minOccurs="0" maxOccurs="unbounded">         <s:complexType>           <s:sequence>             <s:element name="Price" type="RailPriceType"/>             <s:element name="Reservation">               <s:complexType>                 <s:attribute name="Refs" type="strlist" use="required"/>               </s:complexType>             </s:element>             <s:element name="RuleKey" type="s:string"/>           </s:sequence>           <s:attributeGroup ref="AvailFare"/>           <s:attribute name="SeatType" type="s:string" use="required"/>           <s:attribute name="ServiceClass" type="s:string" use="required"/>           <s:attribute name="MealType" type="s:string" use="required"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	Price Reservation RuleKey

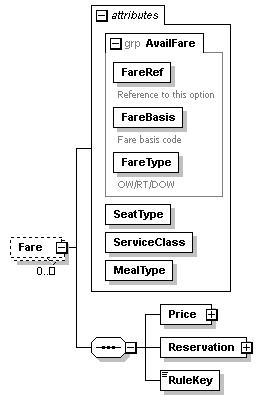

attributes	Name   Type   Use   Default   Fixed   Annotation FareRef   s:integer   required         documentation Reference to this option FareBasis   s:string   required         documentation Fare basis code FareType   AvailFareType   required         documentation OW/RT/DOW SeatType   s:string   required         ServiceClass   s:string   required         MealType   s:string   required
source	<s:element name="Fare" minOccurs="0" maxOccurs="unbounded">   <s:complexType>     <s:sequence>       <s:element name="Price" type="RailPriceType"/>       <s:element name="Reservation">         <s:complexType>           <s:attribute name="Refs" type="strlist" use="required"/>         </s:complexType>       </s:element>       <s:element name="RuleKey" type="s:string"/>     </s:sequence>     <s:attributeGroup ref="AvailFare"/>     <s:attribute name="SeatType" type="s:string" use="required"/>     <s:attribute name="ServiceClass" type="s:string" use="required"/>     <s:attribute name="MealType" type="s:string" use="required"/>   </s:complexType> </s:element>

attribute SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/@SeatType

type	s:string
properties	use  required
source	<s:attribute name="SeatType" type="s:string" use="required"/>

attribute SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/@ServiceClass

type	s:string
properties	use  required
source	<s:attribute name="ServiceClass" type="s:string" use="required"/>

attribute SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/@MealType

type	s:string
properties	use  required
source	<s:attribute name="MealType" type="s:string" use="required"/>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/Price

diagram
type	RailPriceType
properties	content  complex

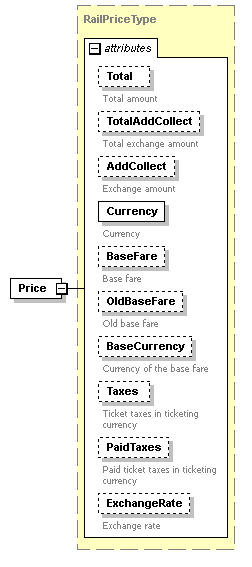

attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:decimal   optional         documentation Total amount TotalAddCollect   s:decimal   optional         documentation Total exchange amount AddCollect   s:decimal   optional         documentation Exchange amount Currency   s:string   required         documentation Currency BaseFare   s:decimal   optional         documentation Base fare OldBaseFare   s:decimal   optional         documentation Old base fare BaseCurrency   s:string   optional         documentation Currency of the base fare Taxes   s:decimal            documentation Ticket taxes in ticketing currency PaidTaxes   s:decimal            documentation Paid ticket taxes in ticketing currency ExchangeRate   s:string            documentation Exchange rate
source	<s:element name="Price" type="RailPriceType"/>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/Reservation

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Refs   strlist   required
source	<s:element name="Reservation">   <s:complexType>     <s:attribute name="Refs" type="strlist" use="required"/>   </s:complexType> </s:element>

attribute SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/Reservation/@Refs

type	strlist
properties	use  required
source	<s:attribute name="Refs" type="strlist" use="required"/>

element SIG_RailAvailRS/ItineraryOptions/ItineraryOption/Fares/Fare/RuleKey

diagram
type	s:string
properties	content  simple
source	<s:element name="RuleKey" type="s:string"/>

element SIG_RailAvailRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
