element SIG_RailAvailRQ

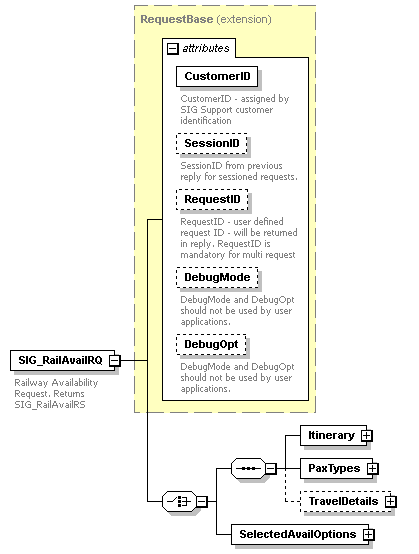

diagram
type	extension of RequestBase
properties	content  complex
children	Itinerary PaxTypes TravelDetails SelectedAvailOptions
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
annotation	documentation Railway Availability Request. Returns SIG_RailAvailRS
source	<s:element name="SIG_RailAvailRQ">   <s:annotation>     <s:documentation>Railway Availability Request. Returns SIG_RailAvailRS</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:choice>           <s:sequence>             <s:element name="Itinerary">               <s:complexType>                 <s:sequence>                   <s:element name="OriginDestination" type="OriginDestinationType" maxOccurs="16"/>                 </s:sequence>               </s:complexType>               <s:unique name="testUniqueRailAvlODRef">                 <s:selector xpath="OriginDestination"/>                 <s:field xpath="@ODRef"/>               </s:unique>             </s:element>             <s:element name="PaxTypes" type="ShopPaxType"/>             <s:element name="TravelDetails" minOccurs="0">               <s:complexType>                 <s:attribute name="TrainNumber" type="s:string" use="optional"/>               </s:complexType>             </s:element>           </s:sequence>           <s:element name="SelectedAvailOptions">             <s:complexType>               <s:sequence>                 <s:element name="SelectedAvailOption" maxOccurs="16">                   <s:complexType>                     <s:attribute name="ItineraryRef" type="s:string" use="required"/>                     <s:attribute name="CoachNumber" type="s:nonNegativeInteger" use="required"/>                     <s:attribute name="FareRef" type="s:nonNegativeInteger" use="required"/>                   </s:complexType>                 </s:element>               </s:sequence>             </s:complexType>           </s:element>         </s:choice>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_RailAvailRQ/Itinerary

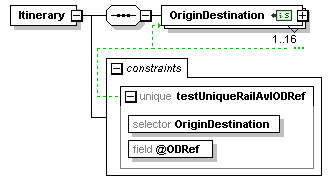

diagram
properties	content  complex
children	OriginDestination
identity constraints	Name   Refer   Selector   Field(s)   Annotation unique   testUniqueRailAvlODRef      OriginDestination   @ODRef
source	<s:element name="Itinerary">   <s:complexType>     <s:sequence>       <s:element name="OriginDestination" type="OriginDestinationType" maxOccurs="16"/>     </s:sequence>   </s:complexType>   <s:unique name="testUniqueRailAvlODRef">     <s:selector xpath="OriginDestination"/>     <s:field xpath="@ODRef"/>   </s:unique> </s:element>

element SIG_RailAvailRQ/Itinerary/OriginDestination

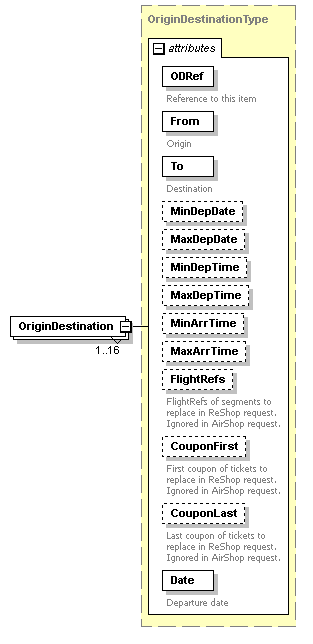

diagram
type	OriginDestinationType
properties	minOcc  1 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ODRef   derived by: s:string   required         documentation Reference to this item From   derived by: s:string   required         documentation Origin To   derived by: s:string   required         documentation Destination MinDepDate   s:date            MaxDepDate   s:date            MinDepTime   s:time            MaxDepTime   s:time            MinArrTime   s:time            MaxArrTime   s:time            FlightRefs   strlist            documentation FlightRefs of segments to replace in ReShop request. Ignored in AirShop request. CouponFirst   s:int            documentation First coupon of tickets to replace in ReShop request. Ignored in AirShop request. CouponLast   s:int            documentation Last coupon of tickets to replace in ReShop request. Ignored in AirShop request. Date   s:date   required         documentation Departure date
source	<s:element name="OriginDestination" type="OriginDestinationType" maxOccurs="16"/>

element SIG_RailAvailRQ/PaxTypes

diagram
type	ShopPaxType
properties	content  complex
children	PaxType
source	<s:element name="PaxTypes" type="ShopPaxType"/>

element SIG_RailAvailRQ/TravelDetails

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TrainNumber   s:string   optional
source	<s:element name="TravelDetails" minOccurs="0">   <s:complexType>     <s:attribute name="TrainNumber" type="s:string" use="optional"/>   </s:complexType> </s:element>

attribute SIG_RailAvailRQ/TravelDetails/@TrainNumber

type	s:string
properties	use  optional
source	<s:attribute name="TrainNumber" type="s:string" use="optional"/>

element SIG_RailAvailRQ/SelectedAvailOptions

diagram
properties	content  complex
children	SelectedAvailOption
source	<s:element name="SelectedAvailOptions">   <s:complexType>     <s:sequence>       <s:element name="SelectedAvailOption" maxOccurs="16">         <s:complexType>           <s:attribute name="ItineraryRef" type="s:string" use="required"/>           <s:attribute name="CoachNumber" type="s:nonNegativeInteger" use="required"/>           <s:attribute name="FareRef" type="s:nonNegativeInteger" use="required"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element SIG_RailAvailRQ/SelectedAvailOptions/SelectedAvailOption

diagram
properties	minOcc  1 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ItineraryRef   s:string   required         CoachNumber   s:nonNegativeInteger   required         FareRef   s:nonNegativeInteger   required
source	<s:element name="SelectedAvailOption" maxOccurs="16">   <s:complexType>     <s:attribute name="ItineraryRef" type="s:string" use="required"/>     <s:attribute name="CoachNumber" type="s:nonNegativeInteger" use="required"/>     <s:attribute name="FareRef" type="s:nonNegativeInteger" use="required"/>   </s:complexType> </s:element>

attribute SIG_RailAvailRQ/SelectedAvailOptions/SelectedAvailOption/@ItineraryRef

type	s:string
properties	use  required
source	<s:attribute name="ItineraryRef" type="s:string" use="required"/>

attribute SIG_RailAvailRQ/SelectedAvailOptions/SelectedAvailOption/@CoachNumber

type	s:nonNegativeInteger
properties	use  required
source	<s:attribute name="CoachNumber" type="s:nonNegativeInteger" use="required"/>

attribute SIG_RailAvailRQ/SelectedAvailOptions/SelectedAvailOption/@FareRef

type	s:nonNegativeInteger
properties	use  required
source	<s:attribute name="FareRef" type="s:nonNegativeInteger" use="required"/>
