element SIG_PassThroughRS

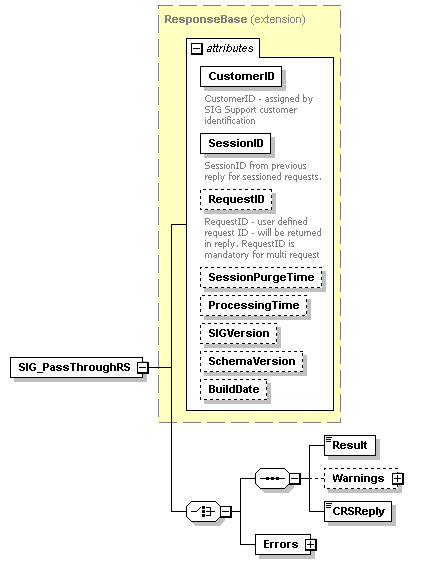

diagram
type	extension of ResponseBase
properties	content  complex
children	Result Warnings CRSReply Errors
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
source	<s:element name="SIG_PassThroughRS">   <s:complexType>     <s:complexContent>       <s:extension base="ResponseBase">         <s:choice>           <s:sequence>             <s:element name="Result" type="ResultType"/>             <s:element name="Warnings" type="WarningsType" minOccurs="0"/>             <s:element name="CRSReply" type="s:base64Binary"/>           </s:sequence>           <s:element name="Errors" type="ErrorsType"/>         </s:choice>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_PassThroughRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
source	<s:element name="Result" type="ResultType"/>

element SIG_PassThroughRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_PassThroughRS/CRSReply

diagram
type	s:base64Binary
properties	content  simple
source	<s:element name="CRSReply" type="s:base64Binary"/>

element SIG_PassThroughRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
