element SIG_PassThroughRQ

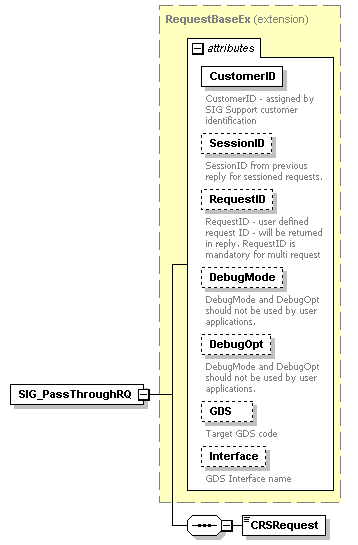

diagram
type	extension of RequestBaseEx
properties	content  complex
children	CRSRequest
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications. GDS   CRSType            documentation Target GDS code Interface   s:string            documentation GDS Interface name
source	<s:element name="SIG_PassThroughRQ">   <s:complexType>     <s:complexContent>       <s:extension base="RequestBaseEx">         <s:sequence>           <s:element name="CRSRequest" type="s:base64Binary"/>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_PassThroughRQ/CRSRequest

diagram
type	s:base64Binary
properties	content  simple
source	<s:element name="CRSRequest" type="s:base64Binary"/>
