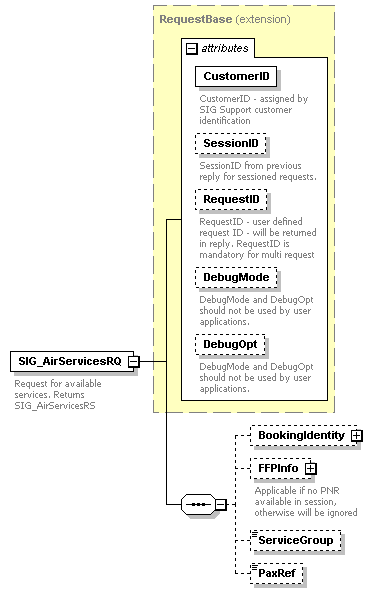

element SIG_AirServicesRQ

diagram
type	extension of RequestBase
properties	content  complex
children	BookingIdentity FFPInfo ServiceGroup PaxRef
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
annotation	documentation Request for available services. Returns SIG_AirServicesRS
source	<s:element name="SIG_AirServicesRQ">   <s:annotation>     <s:documentation>Request for available services. Returns SIG_AirServicesRS</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:sequence>           <s:element name="BookingIdentity" type="BookingIdentityType" minOccurs="0"/>           <s:element name="FFPInfo" type="LoyalityProgramType" minOccurs="0">             <s:annotation>               <s:documentation>Applicable if no PNR available in session, otherwise will be ignored</s:documentation>             </s:annotation>           </s:element>           <s:element name="ServiceGroup" type="ServiceGroupList" minOccurs="0"/>           <s:element name="PaxRef" type="s:string" minOccurs="0"/>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_AirServicesRQ/BookingIdentity

diagram
type	BookingIdentityType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H
source	<s:element name="BookingIdentity" type="BookingIdentityType" minOccurs="0"/>

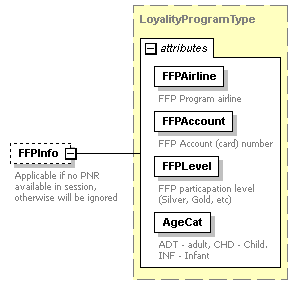

element SIG_AirServicesRQ/FFPInfo

diagram
type	LoyalityProgramType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation FFPAirline   s:string   required         documentation FFP Program airline FFPAccount   s:string   required         documentation FFP Account (card) number FFPLevel   s:string   required         documentation FFP particapation level (Silver, Gold, etc) AgeCat   AgeCatType   required         documentation ADT - adult, CHD - Child. INF - Infant
annotation	documentation Applicable if no PNR available in session, otherwise will be ignored
source	<s:element name="FFPInfo" type="LoyalityProgramType" minOccurs="0">   <s:annotation>     <s:documentation>Applicable if no PNR available in session, otherwise will be ignored</s:documentation>   </s:annotation> </s:element>

element SIG_AirServicesRQ/ServiceGroup

diagram
type	ServiceGroupList
properties	minOcc  0 maxOcc  1 content  simple
source	<s:element name="ServiceGroup" type="ServiceGroupList" minOccurs="0"/>

element SIG_AirServicesRQ/PaxRef

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
source	<s:element name="PaxRef" type="s:string" minOccurs="0"/>
