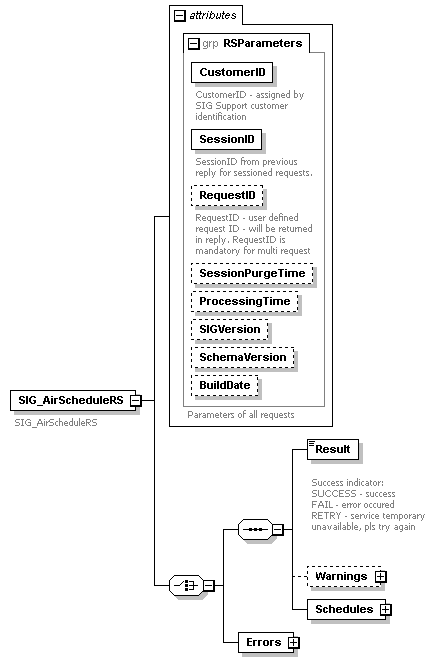

element SIG_AirScheduleRS

diagram
properties	content  complex
children	Result Warnings Schedules Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation SIG_AirScheduleRS
source	<s:element name="SIG_AirScheduleRS">   <s:annotation>     <s:documentation>SIG_AirScheduleRS</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Result" type="ResultType">           <s:annotation>             <s:documentation> Success indicator: SUCCESS - success FAIL - error occured RETRY - service temporary unavailable, pls try again </s:documentation>           </s:annotation>         </s:element>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:element name="Schedules">           <s:complexType>             <s:sequence>               <s:element name="Schedule" type="ScheduleType" minOccurs="0" maxOccurs="unbounded"/>             </s:sequence>           </s:complexType>         </s:element>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_AirScheduleRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator: SUCCESS - success FAIL - error occured RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation> Success indicator: SUCCESS - success FAIL - error occured RETRY - service temporary unavailable, pls try again </s:documentation>   </s:annotation> </s:element>

element SIG_AirScheduleRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_AirScheduleRS/Schedules

diagram
properties	content  complex
children	Schedule
source	<s:element name="Schedules">   <s:complexType>     <s:sequence>       <s:element name="Schedule" type="ScheduleType" minOccurs="0" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

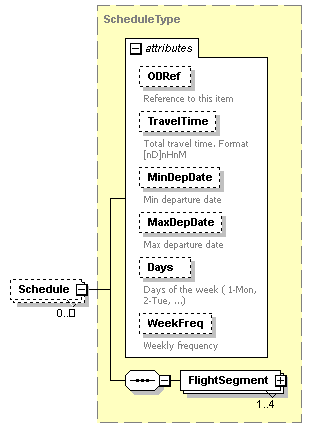

element SIG_AirScheduleRS/Schedules/Schedule

diagram
type	ScheduleType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FlightSegment
attributes	Name   Type   Use   Default   Fixed   Annotation ODRef   s:string            documentation Reference to this item TravelTime   s:duration            documentation Total travel time. Format [nD]nHnM MinDepDate   s:string            documentation Min departure date MaxDepDate   s:string            documentation Max departure date Days   s:string            documentation Days of the week ( 1-Mon, 2-Tue, ...) WeekFreq   s:string            documentation Weekly frequency
source	<s:element name="Schedule" type="ScheduleType" minOccurs="0" maxOccurs="unbounded"/>

element SIG_AirScheduleRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
