element SIG_AirScheduleRQ

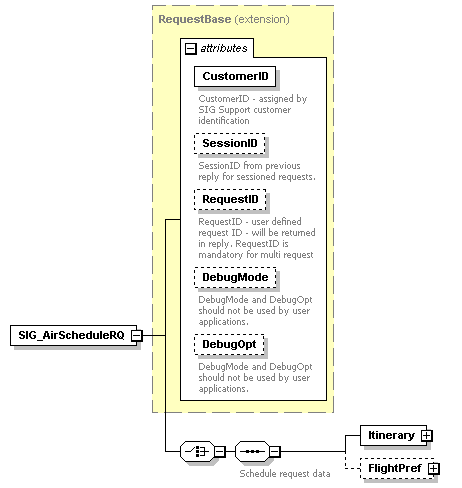

diagram
type	extension of RequestBase
properties	content  complex
children	Itinerary FlightPref
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
source	<s:element name="SIG_AirScheduleRQ">   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:choice>           <s:sequence>             <s:annotation>               <s:documentation>Schedule request data</s:documentation>             </s:annotation>             <s:element name="Itinerary" type="SchedItineraryType">               <s:unique name="testUniqueSchedODRef">                 <s:selector xpath="OriginDestination"/>                 <s:field xpath="@ODRef"/>               </s:unique>             </s:element>             <s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>           </s:sequence>         </s:choice>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_AirScheduleRQ/Itinerary

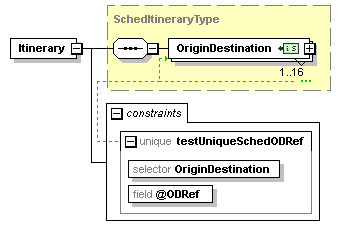

diagram
type	SchedItineraryType
properties	content  complex
children	OriginDestination
identity constraints	Name   Refer   Selector   Field(s)   Annotation unique   testUniqueSchedODRef      OriginDestination   @ODRef
source	<s:element name="Itinerary" type="SchedItineraryType">   <s:unique name="testUniqueSchedODRef">     <s:selector xpath="OriginDestination"/>     <s:field xpath="@ODRef"/>   </s:unique> </s:element>

element SIG_AirScheduleRQ/FlightPref

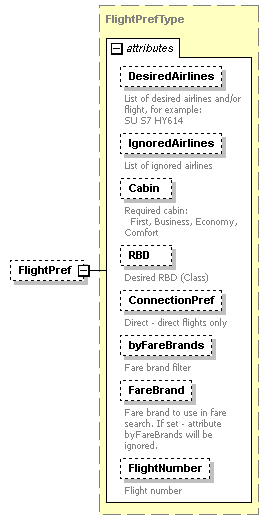

diagram
type	FlightPrefType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation DesiredAirlines   strlist            documentation List of desired airlines and/or flight, for example: SU S7 HY614 IgnoredAirlines   strlist            documentation List of ignored airlines Cabin   CabinType            documentation Required cabin:   First, Business, Economy, Comfort RBD   derived by: s:string            documentation Desired RBD (Class) ConnectionPref   derived by: s:string            documentation Direct - direct flights only byFareBrands   derived by: s:string            documentation Fare brand filter FareBrand   s:string            documentation Fare brand to use in fare search. If set - attribute byFareBrands will be ignored. FlightNumber   s:string            documentation Flight number
source	<s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>
