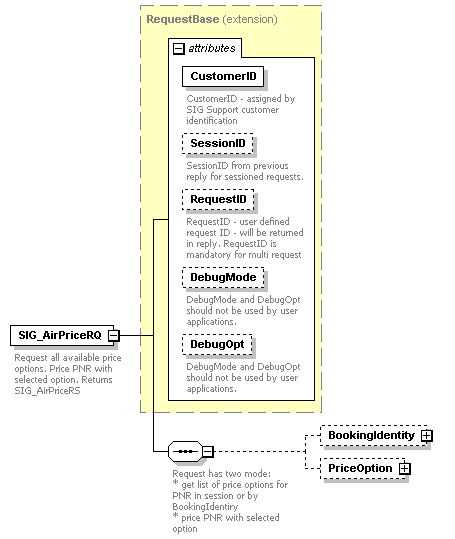

element SIG_AirPriceRQ

diagram
type	extension of RequestBase
properties	content  complex
children	BookingIdentity PriceOption
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
annotation	documentation Request all available price options. Price PNR with selected option. Returns SIG_AirPriceRS
source	<s:element name="SIG_AirPriceRQ">   <s:annotation>     <s:documentation>Request all available price options. Price PNR with selected option. Returns SIG_AirPriceRS</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:sequence>           <s:annotation>             <s:documentation>Request has two mode: * get list of price options for PNR in session or by BookingIdentiry * price PNR with selected option</s:documentation>           </s:annotation>           <s:element name="BookingIdentity" type="BookingIdentityType" minOccurs="0"/>           <s:element name="PriceOption" type="PriceOptionType" minOccurs="0"/>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

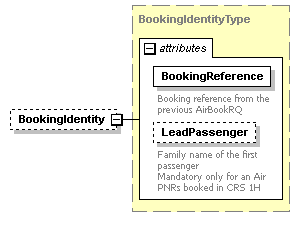

element SIG_AirPriceRQ/BookingIdentity

diagram
type	BookingIdentityType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BookingReference   s:string   required         documentation Booking reference from the previous AirBookRQ LeadPassenger   derived by: s:string            documentation Family name of the first passenger Mandatory only for an Air PNRs booked in CRS 1H
source	<s:element name="BookingIdentity" type="BookingIdentityType" minOccurs="0"/>

element SIG_AirPriceRQ/PriceOption

diagram
type	PriceOptionType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation OptionRef   s:string   required         documentation Reference for selected price variant
source	<s:element name="PriceOption" type="PriceOptionType" minOccurs="0"/>
