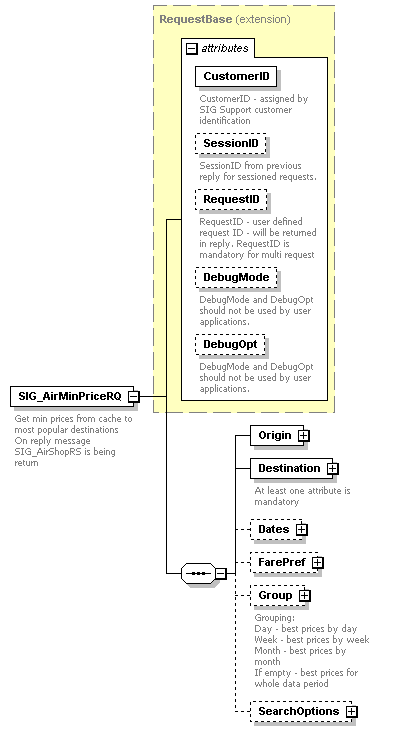

element SIG_AirMinPriceRQ

diagram
type	extension of RequestBase
properties	content  complex
children	Origin Destination Dates FarePref Group SearchOptions
used by	complexType  SIG_RequestType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
annotation	documentation Get min prices from cache to most popular destinations On reply message SIG_AirShopRS is being return
source	<s:element name="SIG_AirMinPriceRQ">   <s:annotation>     <s:documentation>Get min prices from cache to most popular destinations On reply message SIG_AirShopRS is being return</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:sequence>           <s:element name="Origin">             <s:complexType>               <s:attribute name="City">                 <s:annotation>                   <s:documentation>Origin city</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:string">                     <s:minLength value="2"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="Point">                 <s:annotation>                   <s:documentation>Origin point (city or airport)</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:string">                     <s:minLength value="2"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>             </s:complexType>           </s:element>           <s:element name="Destination">             <s:annotation>               <s:documentation>At least one attribute is mandatory</s:documentation>             </s:annotation>             <s:complexType>               <s:attribute name="TopByCount">                 <s:annotation>                   <s:documentation>Count of most popular destinations</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:decimal">                     <s:minInclusive value="1"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="Cities" type="strlist">                 <s:annotation>                   <s:documentation>List of destination cities</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="Points" type="strlist">                 <s:annotation>                   <s:documentation>List of destination points (cities or airports)</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="Countries" type="strlist">                 <s:annotation>                   <s:documentation>List of destination countries</s:documentation>                 </s:annotation>               </s:attribute>             </s:complexType>           </s:element>           <s:element name="Dates" minOccurs="0">             <s:complexType>               <s:attribute name="Start" type="s:date">                 <s:annotation>                   <s:documentation>Start date. If empty - current date.</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="End" type="s:date">                 <s:annotation>                   <s:documentation>Last date - non inclusive. If empty - unlimited.</s:documentation>                 </s:annotation>               </s:attribute>             </s:complexType>           </s:element>           <s:element name="FarePref" minOccurs="0">             <s:complexType>               <s:attribute name="Return" type="AvailFareType">                 <s:annotation>                   <s:documentation>Return fare type - one way or roundtrip. If not specified - OW and RT will be returned.</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="MinStay">                 <s:annotation>                   <s:documentation>Minimal days before return for RT fares. If emty - no limitations.</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:decimal">                     <s:minInclusive value="1"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="MaxStay">                 <s:annotation>                   <s:documentation>Maximum days before return for RT fares. If emty - no limitations.</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:decimal">                     <s:minInclusive value="1"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>             </s:complexType>           </s:element>           <s:element name="Group" minOccurs="0">             <s:annotation>               <s:documentation>Grouping: Day - best prices by day Week - best prices by week Month - best prices by month If empty - best prices for whole data period</s:documentation>             </s:annotation>             <s:complexType>               <s:attribute name="By" use="required">                 <s:simpleType>                   <s:restriction base="s:string">                     <s:enumeration value="Week"/>                     <s:enumeration value="Month"/>                     <s:enumeration value="Day"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>             </s:complexType>           </s:element>           <s:element name="SearchOptions" minOccurs="0">             <s:complexType>               <s:attributeGroup ref="SearchOptionsBaseType"/>               <s:attribute name="Currency">                 <s:annotation>                   <s:documentation>Currency</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:string">                     <s:length value="3"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>             </s:complexType>           </s:element>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_AirMinPriceRQ/Origin

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation City   derived by: s:string            documentation Origin city Point   derived by: s:string            documentation Origin point (city or airport)
source	<s:element name="Origin">   <s:complexType>     <s:attribute name="City">       <s:annotation>         <s:documentation>Origin city</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:minLength value="2"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="Point">       <s:annotation>         <s:documentation>Origin point (city or airport)</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:minLength value="2"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirMinPriceRQ/Origin/@City

type	restriction of s:string
facets	Kind  Value  Annotation minLength  2
annotation	documentation Origin city
source	<s:attribute name="City">   <s:annotation>     <s:documentation>Origin city</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:minLength value="2"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirMinPriceRQ/Origin/@Point

type	restriction of s:string
facets	Kind  Value  Annotation minLength  2
annotation	documentation Origin point (city or airport)
source	<s:attribute name="Point">   <s:annotation>     <s:documentation>Origin point (city or airport)</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:minLength value="2"/>     </s:restriction>   </s:simpleType> </s:attribute>

element SIG_AirMinPriceRQ/Destination

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TopByCount   derived by: s:decimal            documentation Count of most popular destinations Cities   strlist            documentation List of destination cities Points   strlist            documentation List of destination points (cities or airports) Countries   strlist            documentation List of destination countries
annotation	documentation At least one attribute is mandatory
source	<s:element name="Destination">   <s:annotation>     <s:documentation>At least one attribute is mandatory</s:documentation>   </s:annotation>   <s:complexType>     <s:attribute name="TopByCount">       <s:annotation>         <s:documentation>Count of most popular destinations</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:decimal">           <s:minInclusive value="1"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="Cities" type="strlist">       <s:annotation>         <s:documentation>List of destination cities</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Points" type="strlist">       <s:annotation>         <s:documentation>List of destination points (cities or airports)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Countries" type="strlist">       <s:annotation>         <s:documentation>List of destination countries</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirMinPriceRQ/Destination/@TopByCount

type	restriction of s:decimal
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation Count of most popular destinations
source	<s:attribute name="TopByCount">   <s:annotation>     <s:documentation>Count of most popular destinations</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:decimal">       <s:minInclusive value="1"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirMinPriceRQ/Destination/@Cities

type	strlist
annotation	documentation List of destination cities
source	<s:attribute name="Cities" type="strlist">   <s:annotation>     <s:documentation>List of destination cities</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirMinPriceRQ/Destination/@Points

type	strlist
annotation	documentation List of destination points (cities or airports)
source	<s:attribute name="Points" type="strlist">   <s:annotation>     <s:documentation>List of destination points (cities or airports)</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirMinPriceRQ/Destination/@Countries

type	strlist
annotation	documentation List of destination countries
source	<s:attribute name="Countries" type="strlist">   <s:annotation>     <s:documentation>List of destination countries</s:documentation>   </s:annotation> </s:attribute>

element SIG_AirMinPriceRQ/Dates

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Start   s:date            documentation Start date. If empty - current date. End   s:date            documentation Last date - non inclusive. If empty - unlimited.
source	<s:element name="Dates" minOccurs="0">   <s:complexType>     <s:attribute name="Start" type="s:date">       <s:annotation>         <s:documentation>Start date. If empty - current date.</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="End" type="s:date">       <s:annotation>         <s:documentation>Last date - non inclusive. If empty - unlimited.</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirMinPriceRQ/Dates/@Start

type	s:date
annotation	documentation Start date. If empty - current date.
source	<s:attribute name="Start" type="s:date">   <s:annotation>     <s:documentation>Start date. If empty - current date.</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirMinPriceRQ/Dates/@End

type	s:date
annotation	documentation Last date - non inclusive. If empty - unlimited.
source	<s:attribute name="End" type="s:date">   <s:annotation>     <s:documentation>Last date - non inclusive. If empty - unlimited.</s:documentation>   </s:annotation> </s:attribute>

element SIG_AirMinPriceRQ/FarePref

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Return   AvailFareType            documentation Return fare type - one way or roundtrip. If not specified - OW and RT will be returned. MinStay   derived by: s:decimal            documentation Minimal days before return for RT fares. If emty - no limitations. MaxStay   derived by: s:decimal            documentation Maximum days before return for RT fares. If emty - no limitations.
source	<s:element name="FarePref" minOccurs="0">   <s:complexType>     <s:attribute name="Return" type="AvailFareType">       <s:annotation>         <s:documentation>Return fare type - one way or roundtrip. If not specified - OW and RT will be returned.</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="MinStay">       <s:annotation>         <s:documentation>Minimal days before return for RT fares. If emty - no limitations.</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:decimal">           <s:minInclusive value="1"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="MaxStay">       <s:annotation>         <s:documentation>Maximum days before return for RT fares. If emty - no limitations.</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:decimal">           <s:minInclusive value="1"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirMinPriceRQ/FarePref/@Return

type	AvailFareType
facets	Kind  Value  Annotation enumeration  OW enumeration  RT enumeration  DOW
annotation	documentation Return fare type - one way or roundtrip. If not specified - OW and RT will be returned.
source	<s:attribute name="Return" type="AvailFareType">   <s:annotation>     <s:documentation>Return fare type - one way or roundtrip. If not specified - OW and RT will be returned.</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirMinPriceRQ/FarePref/@MinStay

type	restriction of s:decimal
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation Minimal days before return for RT fares. If emty - no limitations.
source	<s:attribute name="MinStay">   <s:annotation>     <s:documentation>Minimal days before return for RT fares. If emty - no limitations.</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:decimal">       <s:minInclusive value="1"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirMinPriceRQ/FarePref/@MaxStay

type	restriction of s:decimal
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation Maximum days before return for RT fares. If emty - no limitations.
source	<s:attribute name="MaxStay">   <s:annotation>     <s:documentation>Maximum days before return for RT fares. If emty - no limitations.</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:decimal">       <s:minInclusive value="1"/>     </s:restriction>   </s:simpleType> </s:attribute>

element SIG_AirMinPriceRQ/Group

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation By   derived by: s:string   required
annotation	documentation Grouping: Day - best prices by day Week - best prices by week Month - best prices by month If empty - best prices for whole data period
source	<s:element name="Group" minOccurs="0">   <s:annotation>     <s:documentation>Grouping: Day - best prices by day Week - best prices by week Month - best prices by month If empty - best prices for whole data period</s:documentation>   </s:annotation>   <s:complexType>     <s:attribute name="By" use="required">       <s:simpleType>         <s:restriction base="s:string">           <s:enumeration value="Week"/>           <s:enumeration value="Month"/>           <s:enumeration value="Day"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirMinPriceRQ/Group/@By

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation enumeration  Week enumeration  Month enumeration  Day
source	<s:attribute name="By" use="required">   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Week"/>       <s:enumeration value="Month"/>       <s:enumeration value="Day"/>     </s:restriction>   </s:simpleType> </s:attribute>

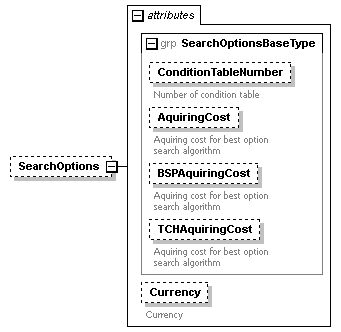

element SIG_AirMinPriceRQ/SearchOptions

diagram
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ConditionTableNumber   derived by: s:string            documentation Number of condition table AquiringCost   PercentageType            documentation Aquiring cost for best option search algorithm BSPAquiringCost   PercentageType            documentation Aquiring cost for best option search algorithm TCHAquiringCost   PercentageType            documentation Aquiring cost for best option search algorithm Currency   derived by: s:string            documentation Currency
source	<s:element name="SearchOptions" minOccurs="0">   <s:complexType>     <s:attributeGroup ref="SearchOptionsBaseType"/>     <s:attribute name="Currency">       <s:annotation>         <s:documentation>Currency</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:length value="3"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirMinPriceRQ/SearchOptions/@Currency

type	restriction of s:string
facets	Kind  Value  Annotation length  3
annotation	documentation Currency
source	<s:attribute name="Currency">   <s:annotation>     <s:documentation>Currency</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:length value="3"/>     </s:restriction>   </s:simpleType> </s:attribute>
