element SIG_AirBookRS

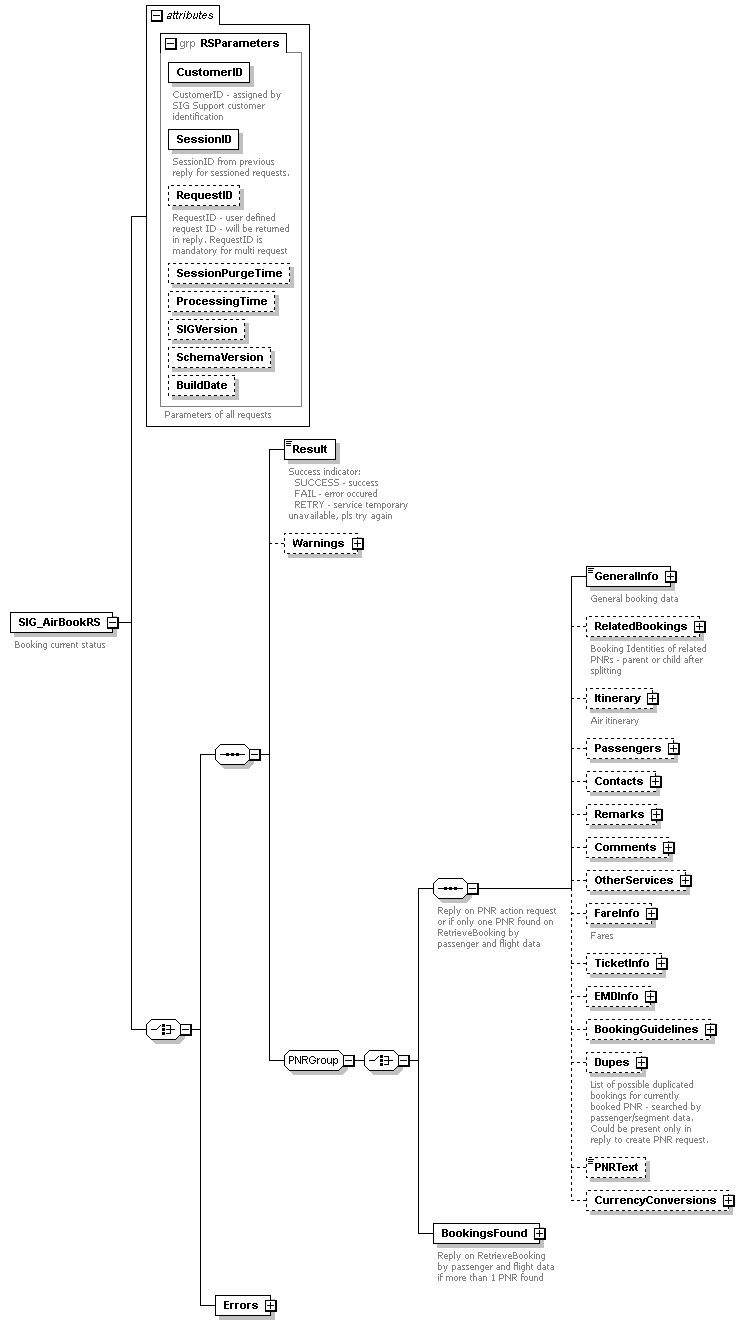

diagram
properties	content  complex
children	Result Warnings GeneralInfo RelatedBookings Itinerary Passengers Contacts Remarks Comments OtherServices FareInfo TicketInfo EMDInfo BookingGuidelines Dupes PNRText CurrencyConversions BookingsFound Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Booking current status
source	<s:element name="SIG_AirBookRS">   <s:annotation>     <s:documentation>Booking current status</s:documentation>   </s:annotation>   <s:complexType>     <s:choice>       <s:sequence>         <s:element name="Result" type="ResultType">           <s:annotation>             <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>           </s:annotation>         </s:element>         <s:element name="Warnings" type="WarningsType" minOccurs="0"/>         <s:group ref="PNRGroup"/>       </s:sequence>       <s:element name="Errors" type="ErrorsType"/>     </s:choice>     <s:attributeGroup ref="RSParameters"/>   </s:complexType> </s:element>

element SIG_AirBookRS/Result

diagram
type	ResultType
properties	content  simple
facets	Kind  Value  Annotation enumeration  SUCCESS enumeration  FAIL enumeration  RETRY
annotation	documentation Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again
source	<s:element name="Result" type="ResultType">   <s:annotation>     <s:documentation>Success indicator:   SUCCESS - success   FAIL - error occured   RETRY - service temporary unavailable, pls try again</s:documentation>   </s:annotation> </s:element>

element SIG_AirBookRS/Warnings

diagram
type	WarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	Warning
source	<s:element name="Warnings" type="WarningsType" minOccurs="0"/>

element SIG_AirBookRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>
