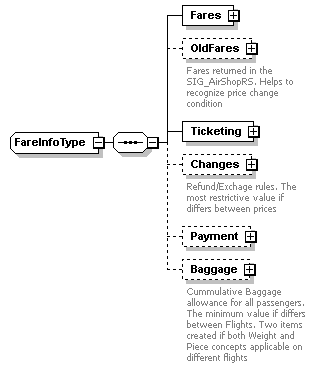

complexType FareInfoType

diagram
children	Fares OldFares Ticketing Changes Payment Baggage
used by	elements  SIG_RailBookRS/FareInfo ShopOptionType/FareInfo PNRGroup/FareInfo
source	<s:complexType name="FareInfoType">   <s:sequence>     <s:element name="Fares">       <s:complexType>         <s:sequence>           <s:element name="Fare" type="FareType" maxOccurs="unbounded"/>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="OldFares" minOccurs="0">       <s:annotation>         <s:documentation>Fares returned in the SIG_AirShopRS. Helps to recognize price change condition</s:documentation>       </s:annotation>       <s:complexType>         <s:sequence>           <s:element name="Fare" type="FareType" maxOccurs="unbounded"/>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="Ticketing">       <s:complexType>         <s:attribute name="eTicket" type="s:boolean" use="required">           <s:annotation>             <s:documentation>ET indicator</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="TimeLimit" type="s:dateTime" use="required">           <s:annotation>             <s:documentation>Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>     <s:element name="Changes" minOccurs="0">       <s:annotation>         <s:documentation>Refund/Exchage rules. The most restrictive value if differs between prices</s:documentation>       </s:annotation>       <s:complexType>         <s:sequence>           <s:element name="VoluntaryRefund">             <s:complexType>               <s:attribute name="PenaltyType" use="required">                 <s:annotation>                   <s:documentation>Penalty type: 0 - unknown 1 - not refundable 2 - refundable 3 - refundable with penalty 4 - refunadale with penaly if late refund 5 - refundabe with penalty in some cases</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:int">                     <s:minInclusive value="0"/>                     <s:maxInclusive value="5"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="PenaltyText" use="required">                 <s:annotation>                   <s:documentation>Short description text - see comments above</s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="s:string">                     <s:enumeration value="unknown"/>                     <s:enumeration value="not refundable"/>                     <s:enumeration value="refundable"/>                     <s:enumeration value="refundable with penalty"/>                     <s:enumeration value="refundable with penalty if late refund"/>                     <s:enumeration value="refundable with penalty in some cases"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>             </s:complexType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="Payment" type="PayMethodType" minOccurs="0"/>     <s:element name="Baggage" minOccurs="0">       <s:annotation>         <s:documentation>Cummulative Baggage allowance for all passengers. The minimum value if differs between Flights. Two items created if both Weight and Piece concepts applicable on different flights</s:documentation>       </s:annotation>       <s:complexType>         <s:sequence>           <s:element name="BagAllowance" maxOccurs="2">             <s:complexType>               <s:attributeGroup ref="BagAllowanceType"/>             </s:complexType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>   </s:sequence> </s:complexType>

element FareInfoType/Fares

diagram
properties	content  complex
children	Fare
source	<s:element name="Fares">   <s:complexType>     <s:sequence>       <s:element name="Fare" type="FareType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

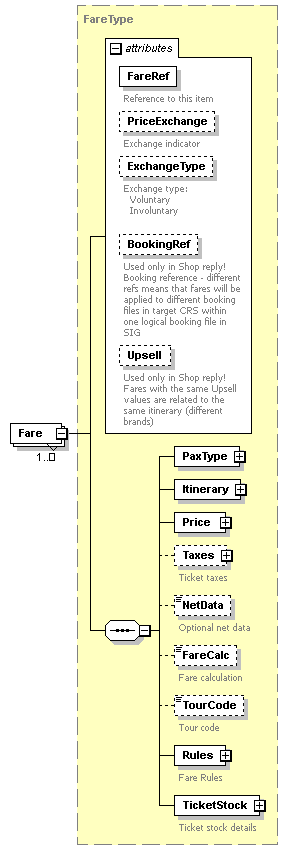

element FareInfoType/Fares/Fare

diagram
type	FareType
properties	minOcc  1 maxOcc  unbounded content  complex
children	PaxType Itinerary Price Taxes NetData FareCalc TourCode Rules TicketStock
attributes	Name   Type   Use   Default   Fixed   Annotation FareRef   s:string   required         documentation Reference to this item PriceExchange   s:boolean   optional         documentation Exchange indicator ExchangeType   RefundExchangeType            documentation Exchange type:   Voluntary   Involuntary BookingRef   s:string            documentation Used only in Shop reply! Booking reference - different refs means that fares will be applied to different booking files in target CRS within one logical booking file in SIG Upsell   s:string            documentation Used only in Shop reply! Fares with the same Upsell values are related to the same itinerary (different brands)
source	<s:element name="Fare" type="FareType" maxOccurs="unbounded"/>

element FareInfoType/OldFares

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Fare
annotation	documentation Fares returned in the SIG_AirShopRS. Helps to recognize price change condition
source	<s:element name="OldFares" minOccurs="0">   <s:annotation>     <s:documentation>Fares returned in the SIG_AirShopRS. Helps to recognize price change condition</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="Fare" type="FareType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element FareInfoType/OldFares/Fare

diagram
type	FareType
properties	minOcc  1 maxOcc  unbounded content  complex
children	PaxType Itinerary Price Taxes NetData FareCalc TourCode Rules TicketStock
attributes	Name   Type   Use   Default   Fixed   Annotation FareRef   s:string   required         documentation Reference to this item PriceExchange   s:boolean   optional         documentation Exchange indicator ExchangeType   RefundExchangeType            documentation Exchange type:   Voluntary   Involuntary BookingRef   s:string            documentation Used only in Shop reply! Booking reference - different refs means that fares will be applied to different booking files in target CRS within one logical booking file in SIG Upsell   s:string            documentation Used only in Shop reply! Fares with the same Upsell values are related to the same itinerary (different brands)
source	<s:element name="Fare" type="FareType" maxOccurs="unbounded"/>

element FareInfoType/Ticketing

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation eTicket   s:boolean   required         documentation ET indicator TimeLimit   s:dateTime   required         documentation Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00
source	<s:element name="Ticketing">   <s:complexType>     <s:attribute name="eTicket" type="s:boolean" use="required">       <s:annotation>         <s:documentation>ET indicator</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="TimeLimit" type="s:dateTime" use="required">       <s:annotation>         <s:documentation>Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FareInfoType/Ticketing/@eTicket

type	s:boolean
properties	use  required
annotation	documentation ET indicator
source	<s:attribute name="eTicket" type="s:boolean" use="required">   <s:annotation>     <s:documentation>ET indicator</s:documentation>   </s:annotation> </s:attribute>

attribute FareInfoType/Ticketing/@TimeLimit

type	s:dateTime
properties	use  required
annotation	documentation Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00
source	<s:attribute name="TimeLimit" type="s:dateTime" use="required">   <s:annotation>     <s:documentation>Ticket time limit. Most restrictive condition. Includes timezone shift, e.g. 2012-05-19T16:00:00+04:00</s:documentation>   </s:annotation> </s:attribute>

element FareInfoType/Changes

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	VoluntaryRefund
annotation	documentation Refund/Exchage rules. The most restrictive value if differs between prices
source	<s:element name="Changes" minOccurs="0">   <s:annotation>     <s:documentation>Refund/Exchage rules. The most restrictive value if differs between prices</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="VoluntaryRefund">         <s:complexType>           <s:attribute name="PenaltyType" use="required">             <s:annotation>               <s:documentation>Penalty type: 0 - unknown 1 - not refundable 2 - refundable 3 - refundable with penalty 4 - refunadale with penaly if late refund 5 - refundabe with penalty in some cases</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:int">                 <s:minInclusive value="0"/>                 <s:maxInclusive value="5"/>               </s:restriction>             </s:simpleType>           </s:attribute>           <s:attribute name="PenaltyText" use="required">             <s:annotation>               <s:documentation>Short description text - see comments above</s:documentation>             </s:annotation>             <s:simpleType>               <s:restriction base="s:string">                 <s:enumeration value="unknown"/>                 <s:enumeration value="not refundable"/>                 <s:enumeration value="refundable"/>                 <s:enumeration value="refundable with penalty"/>                 <s:enumeration value="refundable with penalty if late refund"/>                 <s:enumeration value="refundable with penalty in some cases"/>               </s:restriction>             </s:simpleType>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element FareInfoType/Changes/VoluntaryRefund

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation PenaltyType   derived by: s:int   required         documentation Penalty type: 0 - unknown 1 - not refundable 2 - refundable 3 - refundable with penalty 4 - refunadale with penaly if late refund 5 - refundabe with penalty in some cases PenaltyText   derived by: s:string   required         documentation Short description text - see comments above
source	<s:element name="VoluntaryRefund">   <s:complexType>     <s:attribute name="PenaltyType" use="required">       <s:annotation>         <s:documentation>Penalty type: 0 - unknown 1 - not refundable 2 - refundable 3 - refundable with penalty 4 - refunadale with penaly if late refund 5 - refundabe with penalty in some cases</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:int">           <s:minInclusive value="0"/>           <s:maxInclusive value="5"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="PenaltyText" use="required">       <s:annotation>         <s:documentation>Short description text - see comments above</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:enumeration value="unknown"/>           <s:enumeration value="not refundable"/>           <s:enumeration value="refundable"/>           <s:enumeration value="refundable with penalty"/>           <s:enumeration value="refundable with penalty if late refund"/>           <s:enumeration value="refundable with penalty in some cases"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute FareInfoType/Changes/VoluntaryRefund/@PenaltyType

type	restriction of s:int
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  5
annotation	documentation Penalty type: 0 - unknown 1 - not refundable 2 - refundable 3 - refundable with penalty 4 - refunadale with penaly if late refund 5 - refundabe with penalty in some cases
source	<s:attribute name="PenaltyType" use="required">   <s:annotation>     <s:documentation>Penalty type: 0 - unknown 1 - not refundable 2 - refundable 3 - refundable with penalty 4 - refunadale with penaly if late refund 5 - refundabe with penalty in some cases</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:int">       <s:minInclusive value="0"/>       <s:maxInclusive value="5"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FareInfoType/Changes/VoluntaryRefund/@PenaltyText

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation enumeration  unknown enumeration  not refundable enumeration  refundable enumeration  refundable with penalty enumeration  refundable with penalty if late refund enumeration  refundable with penalty in some cases
annotation	documentation Short description text - see comments above
source	<s:attribute name="PenaltyText" use="required">   <s:annotation>     <s:documentation>Short description text - see comments above</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="unknown"/>       <s:enumeration value="not refundable"/>       <s:enumeration value="refundable"/>       <s:enumeration value="refundable with penalty"/>       <s:enumeration value="refundable with penalty if late refund"/>       <s:enumeration value="refundable with penalty in some cases"/>     </s:restriction>   </s:simpleType> </s:attribute>

element FareInfoType/Payment

diagram
type	PayMethodType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation FOP   FOPList            documentation List of applicable payment type codes (tba) PaySystems   strlist            documentation List of applicable credit card payment systems for CC/PK payment (tba)
source	<s:element name="Payment" type="PayMethodType" minOccurs="0"/>

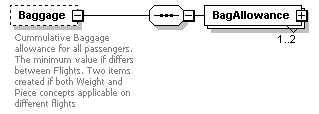

element FareInfoType/Baggage

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	BagAllowance
annotation	documentation Cummulative Baggage allowance for all passengers. The minimum value if differs between Flights. Two items created if both Weight and Piece concepts applicable on different flights
source	<s:element name="Baggage" minOccurs="0">   <s:annotation>     <s:documentation>Cummulative Baggage allowance for all passengers. The minimum value if differs between Flights. Two items created if both Weight and Piece concepts applicable on different flights</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="BagAllowance" maxOccurs="2">         <s:complexType>           <s:attributeGroup ref="BagAllowanceType"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

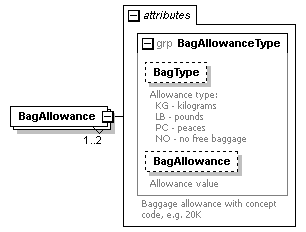

element FareInfoType/Baggage/BagAllowance

diagram
properties	minOcc  1 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BagType   derived by: s:string            documentation Allowance type:   KG - kilograms   LB - pounds   PC - peaces   NO - no free baggage BagAllowance   s:int            documentation Allowance value
source	<s:element name="BagAllowance" maxOccurs="2">   <s:complexType>     <s:attributeGroup ref="BagAllowanceType"/>   </s:complexType> </s:element>
