complexType CouponBaseType

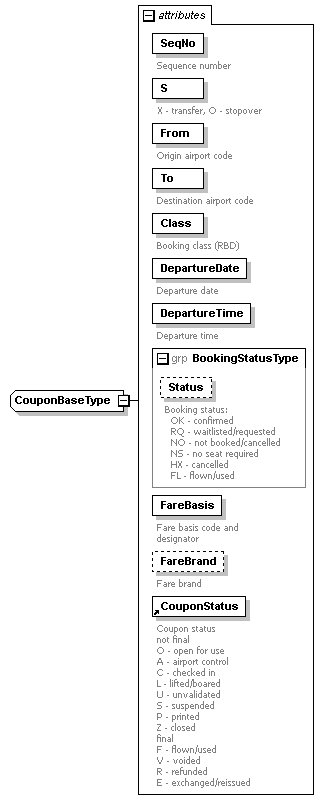

diagram
used by	complexTypes  FlightCouponType RailCouponType
attributes	Name   Type   Use   Default   Fixed   Annotation SeqNo   s:int   required         documentation Sequence number S   derived by: s:string   required         documentation X - transfer, O - stopover From   s:string   required         documentation Origin airport code To   s:string   required         documentation Destination airport code Class   s:string   required         documentation Booking class (RBD) DepartureDate   s:date   required         documentation Departure date DepartureTime   s:time   required         documentation Departure time Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   FL - flown/used FareBasis   s:string   required         documentation Fare basis code and designator FareBrand   s:string   optional         documentation Fare brand CouponStatus   derived by: s:string   required         documentation Coupon status not final O - open for use A - airport control C - checked in L - lifted/boared U - unvalidated S - suspended P - printed Z - closed final F - flown/used V - voided R - refunded E - exchanged/reissued
source	<s:complexType name="CouponBaseType">   <s:attribute name="SeqNo" type="s:int" use="required">     <s:annotation>       <s:documentation>Sequence number</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="S" use="required">     <s:annotation>       <s:documentation>X - transfer, O - stopover</s:documentation>     </s:annotation>     <s:simpleType>       <s:restriction base="s:string">         <s:enumeration value="Transfer"/>         <s:enumeration value="Stopover"/>       </s:restriction>     </s:simpleType>   </s:attribute>   <s:attribute name="From" type="s:string" use="required">     <s:annotation>       <s:documentation>Origin airport code</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="To" type="s:string" use="required">     <s:annotation>       <s:documentation>Destination airport code</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Class" type="s:string" use="required">     <s:annotation>       <s:documentation>Booking class (RBD)</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="DepartureDate" type="s:date" use="required">     <s:annotation>       <s:documentation>Departure date</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="DepartureTime" type="s:time" use="required">     <s:annotation>       <s:documentation>Departure time</s:documentation>     </s:annotation>   </s:attribute>   <s:attributeGroup ref="BookingStatusType"/>   <s:attribute name="FareBasis" type="s:string" use="required">     <s:annotation>       <s:documentation>Fare basis code and designator</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="FareBrand" type="s:string" use="optional">     <s:annotation>       <s:documentation>Fare brand</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute ref="CouponStatus" use="required"/> </s:complexType>

attribute CouponBaseType/@SeqNo

type	s:int
properties	use  required
annotation	documentation Sequence number
source	<s:attribute name="SeqNo" type="s:int" use="required">   <s:annotation>     <s:documentation>Sequence number</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@S

type	restriction of s:string
properties	use  required
facets	Kind  Value  Annotation enumeration  Transfer enumeration  Stopover
annotation	documentation X - transfer, O - stopover
source	<s:attribute name="S" use="required">   <s:annotation>     <s:documentation>X - transfer, O - stopover</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Transfer"/>       <s:enumeration value="Stopover"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute CouponBaseType/@From

type	s:string
properties	use  required
annotation	documentation Origin airport code
source	<s:attribute name="From" type="s:string" use="required">   <s:annotation>     <s:documentation>Origin airport code</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@To

type	s:string
properties	use  required
annotation	documentation Destination airport code
source	<s:attribute name="To" type="s:string" use="required">   <s:annotation>     <s:documentation>Destination airport code</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@Class

type	s:string
properties	use  required
annotation	documentation Booking class (RBD)
source	<s:attribute name="Class" type="s:string" use="required">   <s:annotation>     <s:documentation>Booking class (RBD)</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@DepartureDate

type	s:date
properties	use  required
annotation	documentation Departure date
source	<s:attribute name="DepartureDate" type="s:date" use="required">   <s:annotation>     <s:documentation>Departure date</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@DepartureTime

type	s:time
properties	use  required
annotation	documentation Departure time
source	<s:attribute name="DepartureTime" type="s:time" use="required">   <s:annotation>     <s:documentation>Departure time</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@FareBasis

type	s:string
properties	use  required
annotation	documentation Fare basis code and designator
source	<s:attribute name="FareBasis" type="s:string" use="required">   <s:annotation>     <s:documentation>Fare basis code and designator</s:documentation>   </s:annotation> </s:attribute>

attribute CouponBaseType/@FareBrand

type	s:string
properties	use  optional
annotation	documentation Fare brand
source	<s:attribute name="FareBrand" type="s:string" use="optional">   <s:annotation>     <s:documentation>Fare brand</s:documentation>   </s:annotation> </s:attribute>
