complexType SeatMapRowType

diagram
children	Seat Facility
used by	element  SeatMapCabinType/Row
attributes	Name   Type   Use   Default   Fixed   Annotation RowNo   s:integer   required         documentation Row number RowLabel   s:string   required         documentation Passenger reference RowProps   SeatRowPropList   required         documentation Row properties
source	<s:complexType name="SeatMapRowType">   <s:sequence>     <s:element name="Seat" type="SeatMapSeatType" minOccurs="0" maxOccurs="unbounded"/>     <s:element name="Facility" minOccurs="0" maxOccurs="unbounded">       <s:complexType>         <s:attribute name="Type" type="FacilityType" use="required">           <s:annotation>             <s:documentation>Type of facility: Lavatory, Kitchen etc</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="Position" type="s:integer" use="required">           <s:annotation>             <s:documentation>Position of facility based on cabins SeatLabels</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="RowNo" type="s:integer" use="required">     <s:annotation>       <s:documentation>Row number</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="RowLabel" type="s:string" use="required">     <s:annotation>       <s:documentation>Passenger reference</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="RowProps" type="SeatRowPropList" use="required">     <s:annotation>       <s:documentation>Row properties</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute SeatMapRowType/@RowNo

type	s:integer
properties	use  required
annotation	documentation Row number
source	<s:attribute name="RowNo" type="s:integer" use="required">   <s:annotation>     <s:documentation>Row number</s:documentation>   </s:annotation> </s:attribute>

attribute SeatMapRowType/@RowLabel

type	s:string
properties	use  required
annotation	documentation Passenger reference
source	<s:attribute name="RowLabel" type="s:string" use="required">   <s:annotation>     <s:documentation>Passenger reference</s:documentation>   </s:annotation> </s:attribute>

attribute SeatMapRowType/@RowProps

type	SeatRowPropList
properties	use  required
annotation	documentation Row properties
source	<s:attribute name="RowProps" type="SeatRowPropList" use="required">   <s:annotation>     <s:documentation>Row properties</s:documentation>   </s:annotation> </s:attribute>

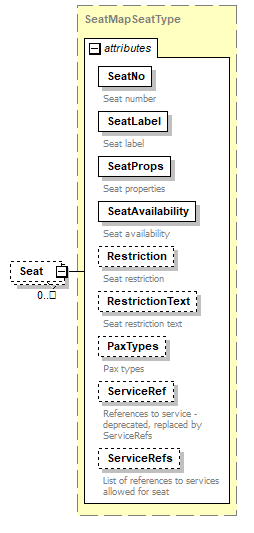

element SeatMapRowType/Seat

diagram
type	SeatMapSeatType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation SeatNo   s:integer   required         documentation Seat number SeatLabel   s:string   required         documentation Seat label SeatProps   SeatPropList   required         documentation Seat properties SeatAvailability   derived by: s:string   required         documentation Seat availability Restriction   derived by: s:string            documentation Seat restriction RestrictionText   s:string            documentation Seat restriction text PaxTypes   SeatPaxList            documentation Pax types ServiceRef   s:string            documentation References to service - deprecated, replaced by ServiceRefs ServiceRefs   strlist            documentation List of references to services allowed for seat
source	<s:element name="Seat" type="SeatMapSeatType" minOccurs="0" maxOccurs="unbounded"/>

element SeatMapRowType/Facility

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   FacilityType   required         documentation Type of facility: Lavatory, Kitchen etc Position   s:integer   required         documentation Position of facility based on cabins SeatLabels
source	<s:element name="Facility" minOccurs="0" maxOccurs="unbounded">   <s:complexType>     <s:attribute name="Type" type="FacilityType" use="required">       <s:annotation>         <s:documentation>Type of facility: Lavatory, Kitchen etc</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Position" type="s:integer" use="required">       <s:annotation>         <s:documentation>Position of facility based on cabins SeatLabels</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SeatMapRowType/Facility/@Type

type	FacilityType
properties	use  required
facets	Kind  Value  Annotation enumeration  Bulkhead enumeration  ExitDoor enumeration  EmergencyExit enumeration  Kitchen enumeration  Lavatory enumeration  Cinema
annotation	documentation Type of facility: Lavatory, Kitchen etc
source	<s:attribute name="Type" type="FacilityType" use="required">   <s:annotation>     <s:documentation>Type of facility: Lavatory, Kitchen etc</s:documentation>   </s:annotation> </s:attribute>

attribute SeatMapRowType/Facility/@Position

type	s:integer
properties	use  required
annotation	documentation Position of facility based on cabins SeatLabels
source	<s:attribute name="Position" type="s:integer" use="required">   <s:annotation>     <s:documentation>Position of facility based on cabins SeatLabels</s:documentation>   </s:annotation> </s:attribute>
