complexType SchedItineraryType

diagram
children	OriginDestination
used by	element  SIG_AirScheduleRQ/Itinerary
annotation	documentation Air shop request itinerary type
source	<s:complexType name="SchedItineraryType">   <s:annotation>     <s:documentation>Air shop request itinerary type</s:documentation>   </s:annotation>   <s:sequence>     <s:element name="OriginDestination" maxOccurs="16">       <s:complexType>         <s:complexContent>           <s:extension base="OriginDestinationBaseType">             <s:sequence>               <s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>             </s:sequence>           </s:extension>         </s:complexContent>       </s:complexType>     </s:element>   </s:sequence> </s:complexType>

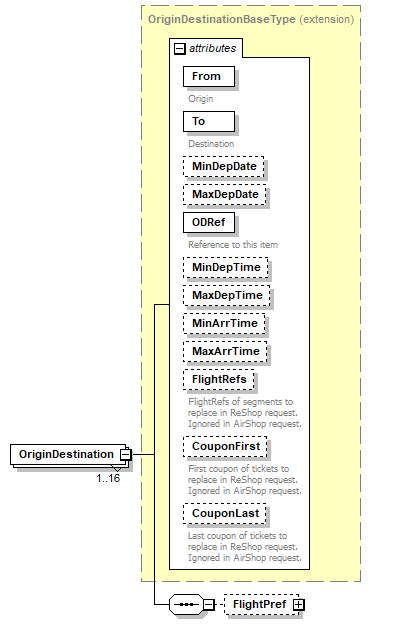

element SchedItineraryType/OriginDestination

diagram
type	extension of OriginDestinationBaseType
properties	minOcc  1 maxOcc  16 content  complex
children	FlightPref
attributes	Name   Type   Use   Default   Fixed   Annotation From   derived by: s:string   required         documentation Origin To   derived by: s:string   required         documentation Destination MinDepDate   s:date            MaxDepDate   s:date            ODRef   derived by: s:string   required         documentation Reference to this item MinDepTime   s:time            MaxDepTime   s:time            MinArrTime   s:time            MaxArrTime   s:time            FlightRefs   strlist            documentation FlightRefs of segments to replace in ReShop request. Ignored in AirShop request. CouponFirst   s:int            documentation First coupon of tickets to replace in ReShop request. Ignored in AirShop request. CouponLast   s:int            documentation Last coupon of tickets to replace in ReShop request. Ignored in AirShop request.
source	<s:element name="OriginDestination" maxOccurs="16">   <s:complexType>     <s:complexContent>       <s:extension base="OriginDestinationBaseType">         <s:sequence>           <s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

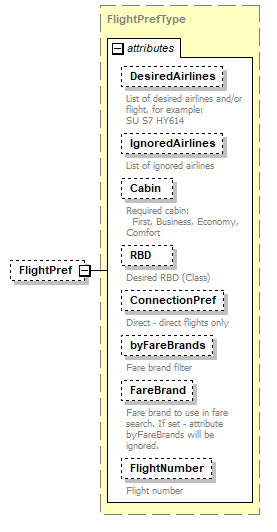

element SchedItineraryType/OriginDestination/FlightPref

diagram
type	FlightPrefType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation DesiredAirlines   strlist            documentation List of desired airlines and/or flight, for example: SU S7 HY614 IgnoredAirlines   strlist            documentation List of ignored airlines Cabin   CabinType            documentation Required cabin:   First, Business, Economy, Comfort RBD   derived by: s:string            documentation Desired RBD (Class) ConnectionPref   derived by: s:string            documentation Direct - direct flights only byFareBrands   derived by: s:string            documentation Fare brand filter FareBrand   s:string            documentation Fare brand to use in fare search. If set - attribute byFareBrands will be ignored. FlightNumber   s:string            documentation Flight number
source	<s:element name="FlightPref" type="FlightPrefType" minOccurs="0"/>
