element SIG_AirFareRQ

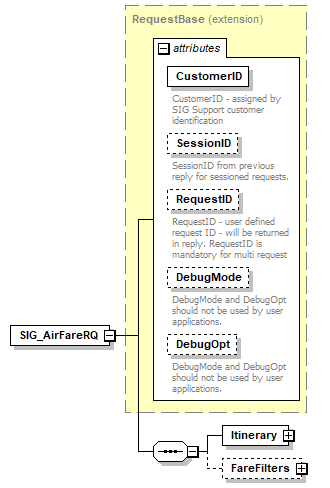

diagram
type	extension of RequestBase
properties	content  complex
children	Itinerary FareFilters
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   optional         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request DebugMode   s:boolean            documentation DebugMode and DebugOpt should not be used by user applications. DebugOpt   s:string   optional         documentation DebugMode and DebugOpt should not be used by user applications.
source	<s:element name="SIG_AirFareRQ">   <s:complexType>     <s:complexContent>       <s:extension base="RequestBase">         <s:sequence>           <s:element name="Itinerary" type="OriginDestinationBase"/>           <s:element name="FareFilters" minOccurs="0">             <s:complexType>               <s:sequence>                 <s:element name="FOP" type="FOPType" minOccurs="0" maxOccurs="10"/>               </s:sequence>               <s:attribute name="Currency">                 <s:simpleType>                   <s:restriction base="s:string">                     <s:length value="3"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="Cabin" type="CabinType"/>               <s:attribute name="PTC">                 <s:annotation>                   <s:documentation>Industry-standard Passenger Type Code or PTC list </s:documentation>                 </s:annotation>                 <s:simpleType>                   <s:restriction base="strlist">                     <s:maxLength value="32"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="AccountCode" type="s:string"/>               <s:attribute name="DesiredAirline">                 <s:simpleType>                   <s:restriction base="s:string">                     <s:length value="2"/>                   </s:restriction>                 </s:simpleType>               </s:attribute>               <s:attribute name="FareType" type="AvailFareType">                 <s:annotation>                   <s:documentation>OW - one way only RT - only round trips DOW - double one way and round trips default - one way and round trips</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="DirectFlights" type="s:boolean">                 <s:annotation>                   <s:documentation>True - direct flights only false - connected flights only default - both direct and connected flights</s:documentation>                 </s:annotation>               </s:attribute>             </s:complexType>           </s:element>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_AirFareRQ/Itinerary

diagram
type	OriginDestinationBase
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation From   derived by: s:string   required         documentation Origin To   derived by: s:string   required         documentation Destination MinDepDate   s:date            MaxDepDate   s:date
source	<s:element name="Itinerary" type="OriginDestinationBase"/>

element SIG_AirFareRQ/FareFilters

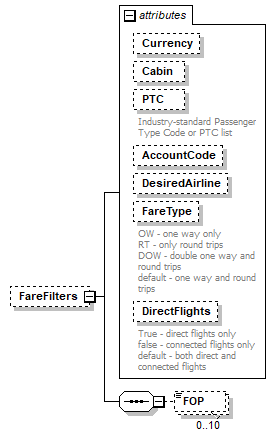

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	FOP
attributes	Name   Type   Use   Default   Fixed   Annotation Currency   derived by: s:string            Cabin   CabinType            PTC   derived by: strlist            documentation Industry-standard Passenger Type Code or PTC list AccountCode   s:string            DesiredAirline   derived by: s:string            FareType   AvailFareType            documentation OW - one way only RT - only round trips DOW - double one way and round trips default - one way and round trips DirectFlights   s:boolean            documentation True - direct flights only false - connected flights only default - both direct and connected flights
source	<s:element name="FareFilters" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="FOP" type="FOPType" minOccurs="0" maxOccurs="10"/>     </s:sequence>     <s:attribute name="Currency">       <s:simpleType>         <s:restriction base="s:string">           <s:length value="3"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="Cabin" type="CabinType"/>     <s:attribute name="PTC">       <s:annotation>         <s:documentation>Industry-standard Passenger Type Code or PTC list </s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="strlist">           <s:maxLength value="32"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="AccountCode" type="s:string"/>     <s:attribute name="DesiredAirline">       <s:simpleType>         <s:restriction base="s:string">           <s:length value="2"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="FareType" type="AvailFareType">       <s:annotation>         <s:documentation>OW - one way only RT - only round trips DOW - double one way and round trips default - one way and round trips</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="DirectFlights" type="s:boolean">       <s:annotation>         <s:documentation>True - direct flights only false - connected flights only default - both direct and connected flights</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute SIG_AirFareRQ/FareFilters/@Currency

type	restriction of s:string
facets	Kind  Value  Annotation length  3
source	<s:attribute name="Currency">   <s:simpleType>     <s:restriction base="s:string">       <s:length value="3"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirFareRQ/FareFilters/@Cabin

type	CabinType
facets	Kind  Value  Annotation enumeration  First enumeration  Business enumeration  Economy enumeration  Comfort
source	<s:attribute name="Cabin" type="CabinType"/>

attribute SIG_AirFareRQ/FareFilters/@PTC

type	restriction of strlist
facets	Kind  Value  Annotation maxLength  32
annotation	documentation Industry-standard Passenger Type Code or PTC list
source	<s:attribute name="PTC">   <s:annotation>     <s:documentation>Industry-standard Passenger Type Code or PTC list </s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="strlist">       <s:maxLength value="32"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirFareRQ/FareFilters/@AccountCode

type	s:string
source	<s:attribute name="AccountCode" type="s:string"/>

attribute SIG_AirFareRQ/FareFilters/@DesiredAirline

type	restriction of s:string
facets	Kind  Value  Annotation length  2
source	<s:attribute name="DesiredAirline">   <s:simpleType>     <s:restriction base="s:string">       <s:length value="2"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute SIG_AirFareRQ/FareFilters/@FareType

type	AvailFareType
facets	Kind  Value  Annotation enumeration  OW enumeration  RT enumeration  DOW
annotation	documentation OW - one way only RT - only round trips DOW - double one way and round trips default - one way and round trips
source	<s:attribute name="FareType" type="AvailFareType">   <s:annotation>     <s:documentation>OW - one way only RT - only round trips DOW - double one way and round trips default - one way and round trips</s:documentation>   </s:annotation> </s:attribute>

attribute SIG_AirFareRQ/FareFilters/@DirectFlights

type	s:boolean
annotation	documentation True - direct flights only false - connected flights only default - both direct and connected flights
source	<s:attribute name="DirectFlights" type="s:boolean">   <s:annotation>     <s:documentation>True - direct flights only false - connected flights only default - both direct and connected flights</s:documentation>   </s:annotation> </s:attribute>

element SIG_AirFareRQ/FareFilters/FOP

diagram
type	FOPType
properties	minOcc  0 maxOcc  10 content  simple
facets	Kind  Value  Annotation enumeration  Agent account enumeration  Bonus account enumeration  Cash enumeration  Credit enumeration  Credit card enumeration  Earned miles enumeration  Earned miles UT enumeration  EMoney enumeration  Internet card enumeration  Invoice enumeration  Miles and cash enumeration  Miles upgrade enumeration  Payment card enumeration  Payment system enumeration  Personal account enumeration  Prepaid enumeration  Voucher or certificate
source	<s:element name="FOP" type="FOPType" minOccurs="0" maxOccurs="10"/>
