complexType OriginDestinationType

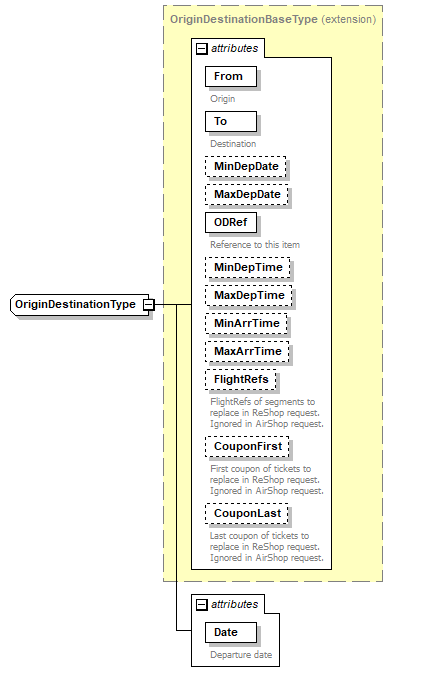

diagram
type	extension of OriginDestinationBaseType
properties	base  OriginDestinationBaseType
used by	elements  SIG_RailAvailRQ/Itinerary/OriginDestination ShopItineraryType/OriginDestination
attributes	Name   Type   Use   Default   Fixed   Annotation From   derived by: s:string   required         documentation Origin To   derived by: s:string   required         documentation Destination MinDepDate   s:date            MaxDepDate   s:date            ODRef   derived by: s:string   required         documentation Reference to this item MinDepTime   s:time            MaxDepTime   s:time            MinArrTime   s:time            MaxArrTime   s:time            FlightRefs   strlist            documentation FlightRefs of segments to replace in ReShop request. Ignored in AirShop request. CouponFirst   s:int            documentation First coupon of tickets to replace in ReShop request. Ignored in AirShop request. CouponLast   s:int            documentation Last coupon of tickets to replace in ReShop request. Ignored in AirShop request. Date   s:date   required         documentation Departure date
source	<s:complexType name="OriginDestinationType">   <s:complexContent>     <s:extension base="OriginDestinationBaseType">       <s:attribute name="Date" type="s:date" use="required">         <s:annotation>           <s:documentation>Departure date</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute OriginDestinationType/@Date

type	s:date
properties	use  required
annotation	documentation Departure date
source	<s:attribute name="Date" type="s:date" use="required">   <s:annotation>     <s:documentation>Departure date</s:documentation>   </s:annotation> </s:attribute>
