complexType FlightCouponsItnType

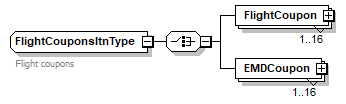

diagram
children	FlightCoupon EMDCoupon
used by	element  TicketDataType/Itinerary
annotation	documentation Flight coupons
source	<s:complexType name="FlightCouponsItnType">   <s:annotation>     <s:documentation>Flight coupons</s:documentation>   </s:annotation>   <s:choice>     <s:element name="FlightCoupon" type="FlightCouponType" maxOccurs="16"/>     <s:element name="EMDCoupon" type="EMDCouponType" maxOccurs="16"/>   </s:choice> </s:complexType>

element FlightCouponsItnType/FlightCoupon

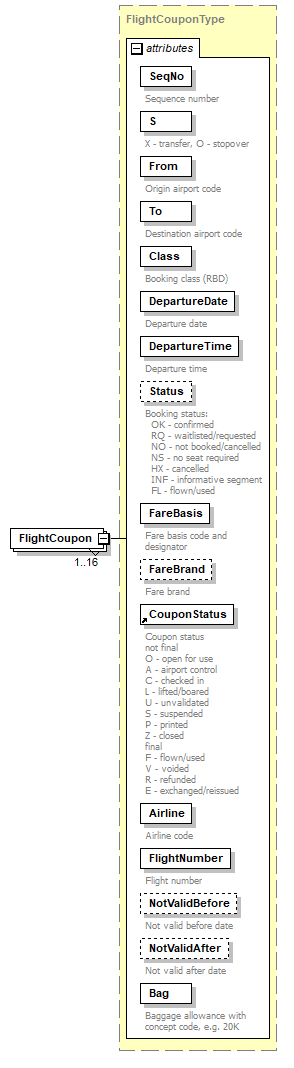

diagram
type	FlightCouponType
properties	minOcc  1 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation SeqNo   s:int   required         documentation Sequence number S   StopoverType   required         documentation X - transfer, O - stopover From   s:string   required         documentation Origin airport code To   s:string   required         documentation Destination airport code Class   s:string   required         documentation Booking class (RBD) DepartureDate   s:date   required         documentation Departure date DepartureTime   s:time   required         documentation Departure time Status   derived by: s:string            documentation Booking status:   OK - confirmed   RQ - waitlisted/requested   NO - not booked/cancelled   NS - no seat required   HX - cancelled   INF - informative segment   FL - flown/used FareBasis   s:string   required         documentation Fare basis code and designator FareBrand   s:string   optional         documentation Fare brand CouponStatus   derived by: s:string   required         documentation Coupon status not final O - open for use A - airport control C - checked in L - lifted/boared U - unvalidated S - suspended P - printed Z - closed final F - flown/used V - voided R - refunded E - exchanged/reissued Airline   s:string   required         documentation Airline code FlightNumber   s:string   required         documentation Flight number NotValidBefore   s:date   optional         documentation Not valid before date NotValidAfter   s:date   optional         documentation Not valid after date Bag   s:string   required         documentation Baggage allowance with concept code, e.g. 20K
source	<s:element name="FlightCoupon" type="FlightCouponType" maxOccurs="16"/>

element FlightCouponsItnType/EMDCoupon

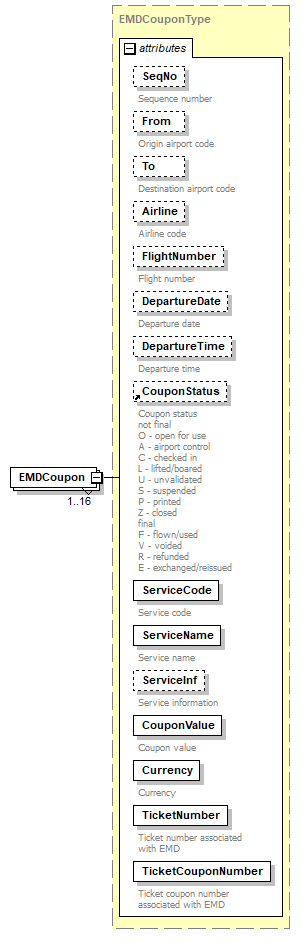

diagram
type	EMDCouponType
properties	minOcc  1 maxOcc  16 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation SeqNo   s:int            documentation Sequence number From   s:string            documentation Origin airport code To   s:string            documentation Destination airport code Airline   s:string            documentation Airline code FlightNumber   s:string            documentation Flight number DepartureDate   s:date            documentation Departure date DepartureTime   s:time            documentation Departure time CouponStatus   derived by: s:string            documentation Coupon status not final O - open for use A - airport control C - checked in L - lifted/boared U - unvalidated S - suspended P - printed Z - closed final F - flown/used V - voided R - refunded E - exchanged/reissued ServiceCode   s:string   required         documentation Service code ServiceName   s:string   required         documentation Service name ServiceInf   s:string            documentation Service information CouponValue   s:decimal   required         documentation Coupon value Currency   s:string   required         documentation Currency TicketNumber   s:string   required         documentation Ticket number associated with EMD TicketCouponNumber   s:string   required         documentation Ticket coupon number associated with EMD
source	<s:element name="EMDCoupon" type="EMDCouponType" maxOccurs="16"/>
