complexType FarePrefExchType

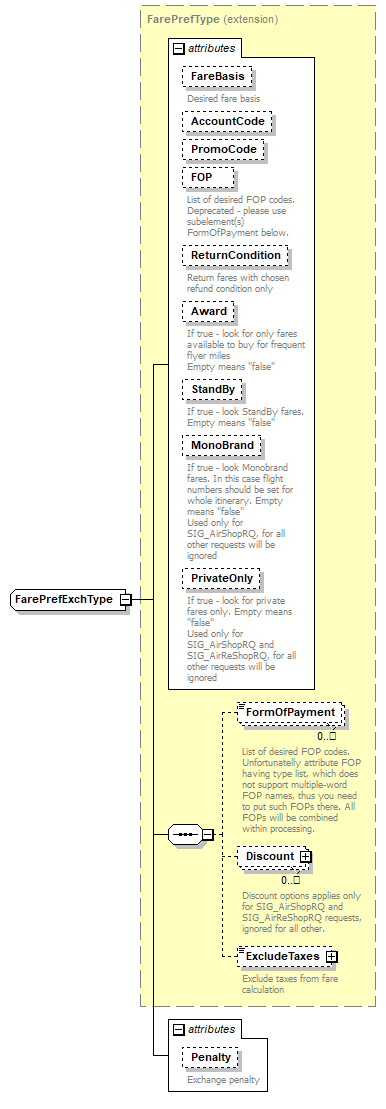

diagram
type	extension of FarePrefType
properties	base  FarePrefType
children	FormOfPayment Discount ExcludeTaxes
used by	element  SIG_AirReShopRQ/FarePref
attributes	Name   Type   Use   Default   Fixed   Annotation FareBasis   s:string            documentation Desired fare basis AccountCode   s:string            PromoCode   s:string            FOP   FOPList            documentation List of desired FOP codes. Deprecated - please use subelement(s) FormOfPayment below. ReturnCondition   derived by: s:string            documentation Return fares with chosen refund condition only Award   s:boolean            documentation If true - look for only fares available to buy for frequent flyer miles Empty means "false"        StandBy   s:boolean            documentation If true - look StandBy fares. Empty means "false"        MonoBrand   s:boolean            documentation If true - look Monobrand fares. In this case flight numbers should be set for whole itinerary. Empty means "false" Used only for SIG_AirShopRQ, for all other requests will be ignored PrivateOnly   s:boolean            documentation If true - look for private fares only. Empty means "false" Used only for SIG_AirShopRQ and SIG_AirReShopRQ, for all other requests will be ignored Penalty   s:decimal            documentation Exchange penalty
source	<s:complexType name="FarePrefExchType">   <s:complexContent>     <s:extension base="FarePrefType">       <s:attribute name="Penalty" type="s:decimal">         <s:annotation>           <s:documentation>Exchange penalty</s:documentation>         </s:annotation>       </s:attribute>     </s:extension>   </s:complexContent> </s:complexType>

attribute FarePrefExchType/@Penalty

type	s:decimal
annotation	documentation Exchange penalty
source	<s:attribute name="Penalty" type="s:decimal">   <s:annotation>     <s:documentation>Exchange penalty</s:documentation>   </s:annotation> </s:attribute>
