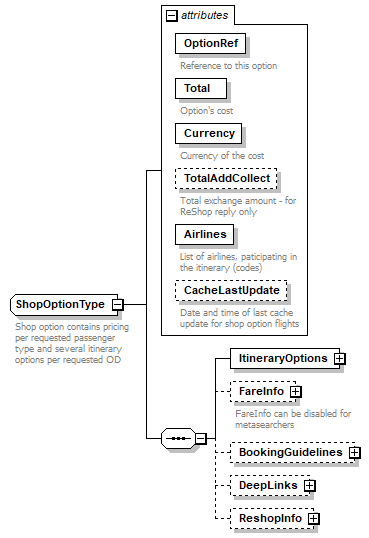

complexType ShopOptionType

diagram
children	ItineraryOptions FareInfo BookingGuidelines DeepLinks ReshopInfo
used by	elements  SIG_AirPriceRS/PriceOptions/PriceOption SIG_AirShopRS/ShopOptions/ShopOption
attributes	Name   Type   Use   Default   Fixed   Annotation OptionRef   s:string   required         documentation Reference to this option Total   s:decimal   required         documentation Option's cost Currency   s:string   required         documentation Currency of the cost TotalAddCollect   s:decimal   optional         documentation Total exchange amount - for ReShop reply only Airlines   strlist   required         documentation List of airlines, paticipating in the itinerary (codes) CacheLastUpdate   s:dateTime            documentation Date and time of last cache update for shop option flights
annotation	documentation Shop option contains pricing per requested passenger type and several itinerary options per requested OD
source	<s:complexType name="ShopOptionType">   <s:annotation>     <s:documentation>Shop option contains pricing per requested passenger type and several itinerary options per requested OD</s:documentation>   </s:annotation>   <s:sequence>     <s:element name="ItineraryOptions">       <s:complexType>         <s:sequence>           <s:element name="ItineraryOption" maxOccurs="unbounded">             <s:annotation>               <s:documentation>Itinerary option - direct flight or flight sequence (connection) for one of requested OD.</s:documentation>             </s:annotation>             <s:complexType>               <s:sequence>                 <s:element name="FlightSegment" maxOccurs="4">                   <s:complexType>                     <s:complexContent>                       <s:extension base="FlightSegmentType">                         <s:sequence>                           <s:element name="BagDetails" minOccurs="0">                             <s:annotation>                               <s:documentation>Optional element - bag allowance for cabin on the flight. In all request types will be ignored.  Will be filled only in SIG_AirShopRS.</s:documentation>                             </s:annotation>                             <s:complexType>                               <s:sequence>                                 <s:element name="BagDetail" maxOccurs="unbounded">                                   <s:complexType>                                     <s:attribute name="ReservationRef" type="s:string" use="required">                                       <s:annotation>                                         <s:documentation>Reference to ReservationDetails item</s:documentation>                                       </s:annotation>                                     </s:attribute>                                     <s:attributeGroup ref="BagAllowanceType"/>                                   </s:complexType>                                 </s:element>                               </s:sequence>                             </s:complexType>                           </s:element>                         </s:sequence>                       </s:extension>                     </s:complexContent>                   </s:complexType>                 </s:element>               </s:sequence>               <s:attributeGroup ref="ItineraryDetails"/>             </s:complexType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="FareInfo" type="FareInfoType" minOccurs="0">       <s:annotation>         <s:documentation>FareInfo can be disabled for metasearchers</s:documentation>       </s:annotation>     </s:element>     <s:element name="BookingGuidelines" type="BookingGuidelinesType" minOccurs="0"/>     <s:element name="DeepLinks" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="DeepLink" type="DeepLinkType" maxOccurs="unbounded"/>         </s:sequence>       </s:complexType>     </s:element>     <s:element name="ReshopInfo" minOccurs="0">       <s:complexType>         <s:sequence>           <s:element name="ReshopInfoTkt" maxOccurs="unbounded">             <s:complexType>               <s:attribute name="TicketNumber" type="s:string" use="required">                 <s:annotation>                   <s:documentation>Ticket number</s:documentation>                 </s:annotation>               </s:attribute>               <s:attribute name="FareRef" type="s:string" use="required">                 <s:annotation>                   <s:documentation>Fare reference</s:documentation>                 </s:annotation>               </s:attribute>             </s:complexType>           </s:element>         </s:sequence>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="OptionRef" type="s:string" use="required">     <s:annotation>       <s:documentation>Reference to this option</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Total" type="s:decimal" use="required">     <s:annotation>       <s:documentation>Option's cost</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Currency" type="s:string" use="required">     <s:annotation>       <s:documentation>Currency of the cost</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="TotalAddCollect" type="s:decimal" use="optional">     <s:annotation>       <s:documentation>Total exchange amount - for ReShop reply only</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Airlines" type="strlist" use="required">     <s:annotation>       <s:documentation>List of airlines, paticipating in the itinerary (codes)</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="CacheLastUpdate" type="s:dateTime">     <s:annotation>       <s:documentation>Date and time of last cache update for shop option flights </s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute ShopOptionType/@OptionRef

type	s:string
properties	use  required
annotation	documentation Reference to this option
source	<s:attribute name="OptionRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Reference to this option</s:documentation>   </s:annotation> </s:attribute>

attribute ShopOptionType/@Total

type	s:decimal
properties	use  required
annotation	documentation Option's cost
source	<s:attribute name="Total" type="s:decimal" use="required">   <s:annotation>     <s:documentation>Option's cost</s:documentation>   </s:annotation> </s:attribute>

attribute ShopOptionType/@Currency

type	s:string
properties	use  required
annotation	documentation Currency of the cost
source	<s:attribute name="Currency" type="s:string" use="required">   <s:annotation>     <s:documentation>Currency of the cost</s:documentation>   </s:annotation> </s:attribute>

attribute ShopOptionType/@TotalAddCollect

type	s:decimal
properties	use  optional
annotation	documentation Total exchange amount - for ReShop reply only
source	<s:attribute name="TotalAddCollect" type="s:decimal" use="optional">   <s:annotation>     <s:documentation>Total exchange amount - for ReShop reply only</s:documentation>   </s:annotation> </s:attribute>

attribute ShopOptionType/@Airlines

type	strlist
properties	use  required
annotation	documentation List of airlines, paticipating in the itinerary (codes)
source	<s:attribute name="Airlines" type="strlist" use="required">   <s:annotation>     <s:documentation>List of airlines, paticipating in the itinerary (codes)</s:documentation>   </s:annotation> </s:attribute>

attribute ShopOptionType/@CacheLastUpdate

type	s:dateTime
annotation	documentation Date and time of last cache update for shop option flights
source	<s:attribute name="CacheLastUpdate" type="s:dateTime">   <s:annotation>     <s:documentation>Date and time of last cache update for shop option flights </s:documentation>   </s:annotation> </s:attribute>

element ShopOptionType/ItineraryOptions

diagram
properties	content  complex
children	ItineraryOption
source	<s:element name="ItineraryOptions">   <s:complexType>     <s:sequence>       <s:element name="ItineraryOption" maxOccurs="unbounded">         <s:annotation>           <s:documentation>Itinerary option - direct flight or flight sequence (connection) for one of requested OD.</s:documentation>         </s:annotation>         <s:complexType>           <s:sequence>             <s:element name="FlightSegment" maxOccurs="4">               <s:complexType>                 <s:complexContent>                   <s:extension base="FlightSegmentType">                     <s:sequence>                       <s:element name="BagDetails" minOccurs="0">                         <s:annotation>                           <s:documentation>Optional element - bag allowance for cabin on the flight. In all request types will be ignored.  Will be filled only in SIG_AirShopRS.</s:documentation>                         </s:annotation>                         <s:complexType>                           <s:sequence>                             <s:element name="BagDetail" maxOccurs="unbounded">                               <s:complexType>                                 <s:attribute name="ReservationRef" type="s:string" use="required">                                   <s:annotation>                                     <s:documentation>Reference to ReservationDetails item</s:documentation>                                   </s:annotation>                                 </s:attribute>                                 <s:attributeGroup ref="BagAllowanceType"/>                               </s:complexType>                             </s:element>                           </s:sequence>                         </s:complexType>                       </s:element>                     </s:sequence>                   </s:extension>                 </s:complexContent>               </s:complexType>             </s:element>           </s:sequence>           <s:attributeGroup ref="ItineraryDetails"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

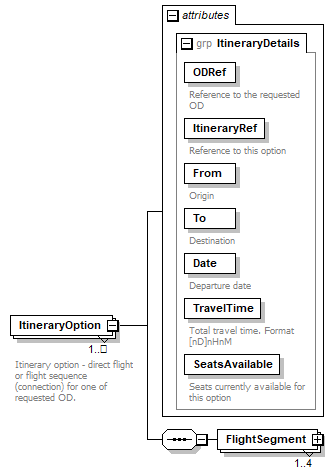

element ShopOptionType/ItineraryOptions/ItineraryOption

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
children	FlightSegment
attributes	Name   Type   Use   Default   Fixed   Annotation ODRef   derived by: s:string   required         documentation Reference to the requested OD ItineraryRef   s:string   required         documentation Reference to this option From   s:string   required         documentation Origin To   s:string   required         documentation Destination Date   s:date   required         documentation Departure date TravelTime   s:duration   required         documentation Total travel time. Format [nD]nHnM SeatsAvailable   s:int   required         documentation Seats currently available for this option
annotation	documentation Itinerary option - direct flight or flight sequence (connection) for one of requested OD.
source	<s:element name="ItineraryOption" maxOccurs="unbounded">   <s:annotation>     <s:documentation>Itinerary option - direct flight or flight sequence (connection) for one of requested OD.</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="FlightSegment" maxOccurs="4">         <s:complexType>           <s:complexContent>             <s:extension base="FlightSegmentType">               <s:sequence>                 <s:element name="BagDetails" minOccurs="0">                   <s:annotation>                     <s:documentation>Optional element - bag allowance for cabin on the flight. In all request types will be ignored.  Will be filled only in SIG_AirShopRS.</s:documentation>                   </s:annotation>                   <s:complexType>                     <s:sequence>                       <s:element name="BagDetail" maxOccurs="unbounded">                         <s:complexType>                           <s:attribute name="ReservationRef" type="s:string" use="required">                             <s:annotation>                               <s:documentation>Reference to ReservationDetails item</s:documentation>                             </s:annotation>                           </s:attribute>                           <s:attributeGroup ref="BagAllowanceType"/>                         </s:complexType>                       </s:element>                     </s:sequence>                   </s:complexType>                 </s:element>               </s:sequence>             </s:extension>           </s:complexContent>         </s:complexType>       </s:element>     </s:sequence>     <s:attributeGroup ref="ItineraryDetails"/>   </s:complexType> </s:element>

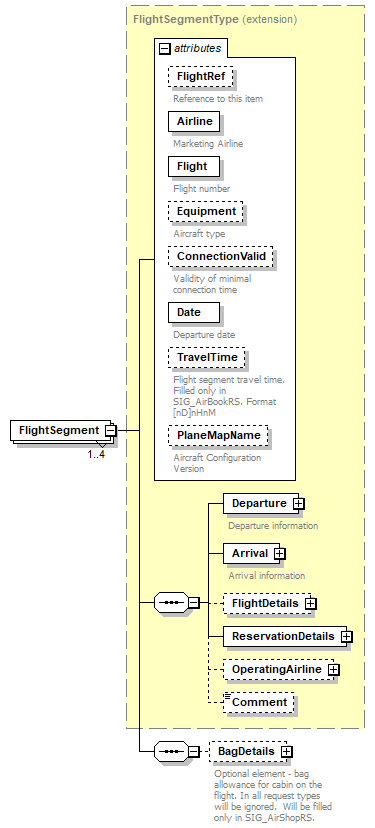

element ShopOptionType/ItineraryOptions/ItineraryOption/FlightSegment

diagram
type	extension of FlightSegmentType
properties	minOcc  1 maxOcc  4 content  complex
children	Departure Arrival FlightDetails ReservationDetails OperatingAirline Comment BagDetails
attributes	Name   Type   Use   Default   Fixed   Annotation FlightRef   s:string   optional         documentation Reference to this item Airline   derived by: s:string   required         documentation Marketing Airline Flight   s:string   required         documentation Flight number Equipment   s:string            documentation Aircraft type ConnectionValid   derived by: s:string            documentation Validity of minimal connection time Date   s:date   required         documentation Departure date TravelTime   s:duration            documentation Flight segment travel time. Filled only in SIG_AirBookRS. Format [nD]nHnM PlaneMapName   s:string   optional         documentation Aircraft Configuration Version
source	<s:element name="FlightSegment" maxOccurs="4">   <s:complexType>     <s:complexContent>       <s:extension base="FlightSegmentType">         <s:sequence>           <s:element name="BagDetails" minOccurs="0">             <s:annotation>               <s:documentation>Optional element - bag allowance for cabin on the flight. In all request types will be ignored.  Will be filled only in SIG_AirShopRS.</s:documentation>             </s:annotation>             <s:complexType>               <s:sequence>                 <s:element name="BagDetail" maxOccurs="unbounded">                   <s:complexType>                     <s:attribute name="ReservationRef" type="s:string" use="required">                       <s:annotation>                         <s:documentation>Reference to ReservationDetails item</s:documentation>                       </s:annotation>                     </s:attribute>                     <s:attributeGroup ref="BagAllowanceType"/>                   </s:complexType>                 </s:element>               </s:sequence>             </s:complexType>           </s:element>         </s:sequence>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element ShopOptionType/ItineraryOptions/ItineraryOption/FlightSegment/BagDetails

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	BagDetail
annotation	documentation Optional element - bag allowance for cabin on the flight. In all request types will be ignored.  Will be filled only in SIG_AirShopRS.
source	<s:element name="BagDetails" minOccurs="0">   <s:annotation>     <s:documentation>Optional element - bag allowance for cabin on the flight. In all request types will be ignored.  Will be filled only in SIG_AirShopRS.</s:documentation>   </s:annotation>   <s:complexType>     <s:sequence>       <s:element name="BagDetail" maxOccurs="unbounded">         <s:complexType>           <s:attribute name="ReservationRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Reference to ReservationDetails item</s:documentation>             </s:annotation>           </s:attribute>           <s:attributeGroup ref="BagAllowanceType"/>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element ShopOptionType/ItineraryOptions/ItineraryOption/FlightSegment/BagDetails/BagDetail

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ReservationRef   s:string   required         documentation Reference to ReservationDetails item BagType   derived by: s:string            documentation Allowance type:   KG - kilograms   LB - pounds   PC - peaces   NO - no free baggage BagAllowance   s:int            documentation Allowance value
source	<s:element name="BagDetail" maxOccurs="unbounded">   <s:complexType>     <s:attribute name="ReservationRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Reference to ReservationDetails item</s:documentation>       </s:annotation>     </s:attribute>     <s:attributeGroup ref="BagAllowanceType"/>   </s:complexType> </s:element>

attribute ShopOptionType/ItineraryOptions/ItineraryOption/FlightSegment/BagDetails/BagDetail/@ReservationRef

type	s:string
properties	use  required
annotation	documentation Reference to ReservationDetails item
source	<s:attribute name="ReservationRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Reference to ReservationDetails item</s:documentation>   </s:annotation> </s:attribute>

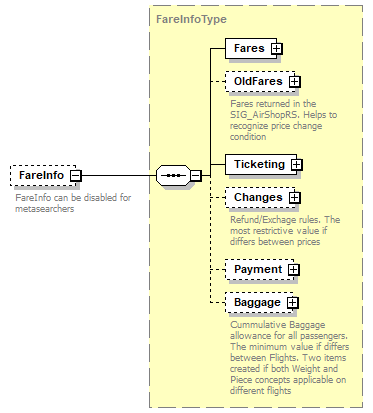

element ShopOptionType/FareInfo

diagram
type	FareInfoType
properties	minOcc  0 maxOcc  1 content  complex
children	Fares OldFares Ticketing Changes Payment Baggage
annotation	documentation FareInfo can be disabled for metasearchers
source	<s:element name="FareInfo" type="FareInfoType" minOccurs="0">   <s:annotation>     <s:documentation>FareInfo can be disabled for metasearchers</s:documentation>   </s:annotation> </s:element>

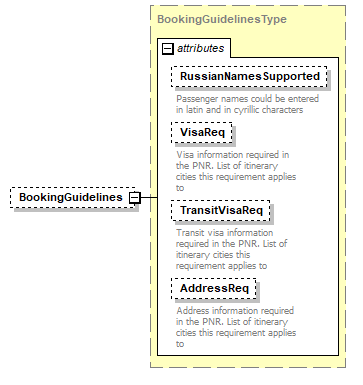

element ShopOptionType/BookingGuidelines

diagram
type	BookingGuidelinesType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation RussianNamesSupported   s:boolean            documentation Passenger names could be entered in latin and in cyrillic characters VisaReq   s:string            documentation Visa information required in the PNR. List of itinerary cities this requirement applies to TransitVisaReq   s:string            documentation Transit visa information required in the PNR. List of itinerary cities this requirement applies to AddressReq   s:string            documentation Address information required in the PNR. List of itinerary cities this requirement applies to
source	<s:element name="BookingGuidelines" type="BookingGuidelinesType" minOccurs="0"/>

element ShopOptionType/DeepLinks

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	DeepLink
source	<s:element name="DeepLinks" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="DeepLink" type="DeepLinkType" maxOccurs="unbounded"/>     </s:sequence>   </s:complexType> </s:element>

element ShopOptionType/DeepLinks/DeepLink

diagram
type	DeepLinkType
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation DeviceType   derived by: s:string   required
source	<s:element name="DeepLink" type="DeepLinkType" maxOccurs="unbounded"/>

element ShopOptionType/ReshopInfo

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	ReshopInfoTkt
source	<s:element name="ReshopInfo" minOccurs="0">   <s:complexType>     <s:sequence>       <s:element name="ReshopInfoTkt" maxOccurs="unbounded">         <s:complexType>           <s:attribute name="TicketNumber" type="s:string" use="required">             <s:annotation>               <s:documentation>Ticket number</s:documentation>             </s:annotation>           </s:attribute>           <s:attribute name="FareRef" type="s:string" use="required">             <s:annotation>               <s:documentation>Fare reference</s:documentation>             </s:annotation>           </s:attribute>         </s:complexType>       </s:element>     </s:sequence>   </s:complexType> </s:element>

element ShopOptionType/ReshopInfo/ReshopInfoTkt

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TicketNumber   s:string   required         documentation Ticket number FareRef   s:string   required         documentation Fare reference
source	<s:element name="ReshopInfoTkt" maxOccurs="unbounded">   <s:complexType>     <s:attribute name="TicketNumber" type="s:string" use="required">       <s:annotation>         <s:documentation>Ticket number</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="FareRef" type="s:string" use="required">       <s:annotation>         <s:documentation>Fare reference</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute ShopOptionType/ReshopInfo/ReshopInfoTkt/@TicketNumber

type	s:string
properties	use  required
annotation	documentation Ticket number
source	<s:attribute name="TicketNumber" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket number</s:documentation>   </s:annotation> </s:attribute>

attribute ShopOptionType/ReshopInfo/ReshopInfoTkt/@FareRef

type	s:string
properties	use  required
annotation	documentation Fare reference
source	<s:attribute name="FareRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Fare reference</s:documentation>   </s:annotation> </s:attribute>
