element SIG_ServiceInfoRS

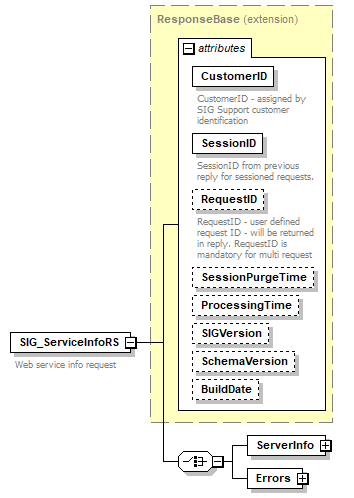

diagram
type	extension of ResponseBase
properties	content  complex
children	ServerInfo Errors
used by	complexType  SIG_ResponseType
attributes	Name   Type   Use   Default   Fixed   Annotation CustomerID   s:string   required         documentation CustomerID - assigned by SIG Support customer identification SessionID   s:string   required         documentation SessionID from previous reply for sessioned requests. RequestID   s:string   optional         documentation RequestID - user defined request ID - will be returned in reply. RequestID is mandatory for multi request SessionPurgeTime   s:duration   optional         ProcessingTime   s:time   optional         SIGVersion   s:string   optional         SchemaVersion   s:string   optional         BuildDate   s:string   optional
annotation	documentation Web service info request
source	<s:element name="SIG_ServiceInfoRS">   <s:annotation>     <s:documentation>Web service info request</s:documentation>   </s:annotation>   <s:complexType>     <s:complexContent>       <s:extension base="ResponseBase">         <s:choice>           <s:element name="ServerInfo">             <s:complexType>               <s:attribute name="Host" type="s:string" use="required"/>               <s:attribute name="Account" type="s:string" use="required"/>             </s:complexType>           </s:element>           <s:element name="Errors" type="ErrorsType"/>         </s:choice>       </s:extension>     </s:complexContent>   </s:complexType> </s:element>

element SIG_ServiceInfoRS/ServerInfo

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Host   s:string   required         Account   s:string   required
source	<s:element name="ServerInfo">   <s:complexType>     <s:attribute name="Host" type="s:string" use="required"/>     <s:attribute name="Account" type="s:string" use="required"/>   </s:complexType> </s:element>

attribute SIG_ServiceInfoRS/ServerInfo/@Host

type	s:string
properties	use  required
source	<s:attribute name="Host" type="s:string" use="required"/>

attribute SIG_ServiceInfoRS/ServerInfo/@Account

type	s:string
properties	use  required
source	<s:attribute name="Account" type="s:string" use="required"/>

element SIG_ServiceInfoRS/Errors

diagram
type	ErrorsType
properties	content  complex
children	Error
source	<s:element name="Errors" type="ErrorsType"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
