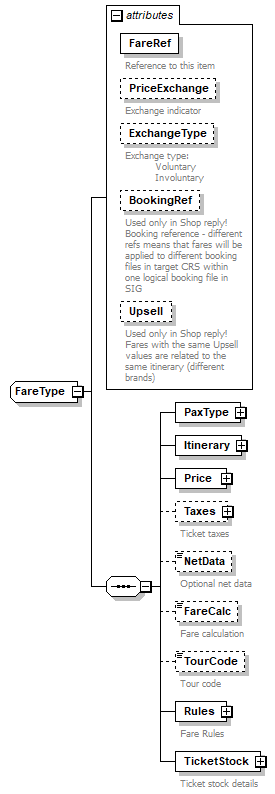

complexType FareType

diagram
children	PaxType Itinerary Price Taxes NetData FareCalc TourCode Rules TicketStock
used by	elements  FareInfoType/Fares/Fare FareInfoType/OldFares/Fare
attributes	Name   Type   Use   Default   Fixed   Annotation FareRef   s:string   required         documentation Reference to this item PriceExchange   s:boolean   optional         documentation Exchange indicator ExchangeType   RefundExchangeType            documentation Exchange type:           Voluntary           Involuntary BookingRef   s:string            documentation Used only in Shop reply! Booking reference - different refs means that fares will be applied to different booking files in target CRS within one logical booking file in SIG Upsell   s:string            documentation Used only in Shop reply! Fares with the same Upsell values are related to the same itinerary (different brands)
source	<s:complexType name="FareType">   <s:sequence>     <s:element name="PaxType">       <s:complexType>         <s:attribute name="AgeCat" type="AgeCatType" use="required">           <s:annotation>             <s:documentation>ADT - adult, CHD - Child. INF - Infant</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="PTC" type="strlist">           <s:annotation>             <s:documentation>Industry-standard Passenger Type Code or PTC list </s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="Count" type="s:int" use="required">           <s:annotation>             <s:documentation>Number of passengers</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="MinAge" type="s:int">           <s:annotation>             <s:documentation>Minumum Age, years</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="MaxAge" type="s:int">           <s:annotation>             <s:documentation>Maximum Age, years</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="Gender">           <s:annotation>             <s:documentation>Male, Female</s:documentation>           </s:annotation>           <s:simpleType>             <s:restriction base="s:string">               <s:enumeration value="Male"/>               <s:enumeration value="Female"/>             </s:restriction>           </s:simpleType>         </s:attribute>       </s:complexType>     </s:element>     <s:element name="Itinerary" type="FareItineraryType"/>     <s:element name="Price">       <s:complexType>         <s:complexContent>           <s:extension base="PriceType"/>         </s:complexContent>       </s:complexType>     </s:element>     <s:element name="Taxes" type="TaxesType" minOccurs="0">       <s:annotation>         <s:documentation>Ticket taxes</s:documentation>       </s:annotation>     </s:element>     <s:element name="NetData" type="s:string" minOccurs="0">       <s:annotation>         <s:documentation>Optional net data</s:documentation>       </s:annotation>     </s:element>     <s:element name="FareCalc" type="s:string" minOccurs="0">       <s:annotation>         <s:documentation>Fare calculation</s:documentation>       </s:annotation>     </s:element>     <s:element name="TourCode" type="s:string" minOccurs="0">       <s:annotation>         <s:documentation>Tour code</s:documentation>       </s:annotation>     </s:element>     <s:element name="Rules" type="RulesType">       <s:annotation>         <s:documentation>Fare Rules</s:documentation>       </s:annotation>     </s:element>     <s:element name="TicketStock">       <s:annotation>         <s:documentation>Ticket stock details</s:documentation>       </s:annotation>       <s:complexType>         <s:attribute name="CRS" type="CRSType" use="required">           <s:annotation>             <s:documentation>CRS code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="BookingOffice" type="s:string" use="optional">           <s:annotation>             <s:documentation>Reservation system booking office code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="FormOwner" type="s:string" use="required">           <s:annotation>             <s:documentation>Form owner</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="FormCode" type="s:string">           <s:annotation>             <s:documentation>Form code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="StockProvider" type="s:string" use="required">           <s:annotation>             <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="ValidatingCarrier" type="s:string" use="required">           <s:annotation>             <s:documentation>Validating carrier code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="AcctgCode" type="s:string" use="required">           <s:annotation>             <s:documentation>Validating carrier accounting code</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="Interface" type="s:string" use="optional">           <s:annotation>             <s:documentation>Reservation system interface</s:documentation>           </s:annotation>         </s:attribute>         <s:attribute name="TicketCount" use="optional">           <s:annotation>             <s:documentation>Ticket count - numeric 1..10, default 1</s:documentation>           </s:annotation>           <s:simpleType>             <s:restriction base="s:int">               <s:minInclusive value="1"/>               <s:maxInclusive value="10"/>             </s:restriction>           </s:simpleType>         </s:attribute>         <s:attribute name="CodeStock" type="s:string" use="optional">           <s:annotation>             <s:documentation>Ticket stock owner code</s:documentation>           </s:annotation>         </s:attribute>       </s:complexType>     </s:element>   </s:sequence>   <s:attribute name="FareRef" type="s:string" use="required">     <s:annotation>       <s:documentation>Reference to this item</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="PriceExchange" type="s:boolean" use="optional">     <s:annotation>       <s:documentation>Exchange indicator</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="ExchangeType" type="RefundExchangeType">     <s:annotation>       <s:documentation>Exchange type:           Voluntary           Involuntary</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="BookingRef" type="s:string">     <s:annotation>       <s:documentation>Used only in Shop reply! Booking reference - different refs means that fares will be applied to different booking files in target CRS within one logical booking file in SIG</s:documentation>     </s:annotation>   </s:attribute>   <s:attribute name="Upsell" type="s:string">     <s:annotation>       <s:documentation>Used only in Shop reply! Fares with the same Upsell values are related to the same itinerary (different brands)</s:documentation>     </s:annotation>   </s:attribute> </s:complexType>

attribute FareType/@FareRef

type	s:string
properties	use  required
annotation	documentation Reference to this item
source	<s:attribute name="FareRef" type="s:string" use="required">   <s:annotation>     <s:documentation>Reference to this item</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/@PriceExchange

type	s:boolean
properties	use  optional
annotation	documentation Exchange indicator
source	<s:attribute name="PriceExchange" type="s:boolean" use="optional">   <s:annotation>     <s:documentation>Exchange indicator</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/@ExchangeType

type	RefundExchangeType
facets	Kind  Value  Annotation enumeration  Voluntary enumeration  Involuntary enumeration  ExchgViaRefund enumeration  InvolIATA enumeration  NameChange enumeration  VolOnIncomplete enumeration  VolOnOverbook
annotation	documentation Exchange type:           Voluntary           Involuntary
source	<s:attribute name="ExchangeType" type="RefundExchangeType">   <s:annotation>     <s:documentation>Exchange type:           Voluntary           Involuntary</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/@BookingRef

type	s:string
annotation	documentation Used only in Shop reply! Booking reference - different refs means that fares will be applied to different booking files in target CRS within one logical booking file in SIG
source	<s:attribute name="BookingRef" type="s:string">   <s:annotation>     <s:documentation>Used only in Shop reply! Booking reference - different refs means that fares will be applied to different booking files in target CRS within one logical booking file in SIG</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/@Upsell

type	s:string
annotation	documentation Used only in Shop reply! Fares with the same Upsell values are related to the same itinerary (different brands)
source	<s:attribute name="Upsell" type="s:string">   <s:annotation>     <s:documentation>Used only in Shop reply! Fares with the same Upsell values are related to the same itinerary (different brands)</s:documentation>   </s:annotation> </s:attribute>

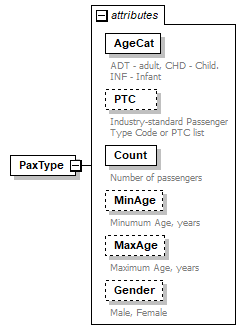

element FareType/PaxType

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation AgeCat   AgeCatType   required         documentation ADT - adult, CHD - Child. INF - Infant PTC   strlist            documentation Industry-standard Passenger Type Code or PTC list Count   s:int   required         documentation Number of passengers MinAge   s:int            documentation Minumum Age, years MaxAge   s:int            documentation Maximum Age, years Gender   derived by: s:string            documentation Male, Female
source	<s:element name="PaxType">   <s:complexType>     <s:attribute name="AgeCat" type="AgeCatType" use="required">       <s:annotation>         <s:documentation>ADT - adult, CHD - Child. INF - Infant</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="PTC" type="strlist">       <s:annotation>         <s:documentation>Industry-standard Passenger Type Code or PTC list </s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Count" type="s:int" use="required">       <s:annotation>         <s:documentation>Number of passengers</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="MinAge" type="s:int">       <s:annotation>         <s:documentation>Minumum Age, years</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="MaxAge" type="s:int">       <s:annotation>         <s:documentation>Maximum Age, years</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Gender">       <s:annotation>         <s:documentation>Male, Female</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:string">           <s:enumeration value="Male"/>           <s:enumeration value="Female"/>         </s:restriction>       </s:simpleType>     </s:attribute>   </s:complexType> </s:element>

attribute FareType/PaxType/@AgeCat

type	AgeCatType
properties	use  required
facets	Kind  Value  Annotation enumeration  ADT enumeration  CHD enumeration  INF
annotation	documentation ADT - adult, CHD - Child. INF - Infant
source	<s:attribute name="AgeCat" type="AgeCatType" use="required">   <s:annotation>     <s:documentation>ADT - adult, CHD - Child. INF - Infant</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/PaxType/@PTC

type	strlist
annotation	documentation Industry-standard Passenger Type Code or PTC list
source	<s:attribute name="PTC" type="strlist">   <s:annotation>     <s:documentation>Industry-standard Passenger Type Code or PTC list </s:documentation>   </s:annotation> </s:attribute>

attribute FareType/PaxType/@Count

type	s:int
properties	use  required
annotation	documentation Number of passengers
source	<s:attribute name="Count" type="s:int" use="required">   <s:annotation>     <s:documentation>Number of passengers</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/PaxType/@MinAge

type	s:int
annotation	documentation Minumum Age, years
source	<s:attribute name="MinAge" type="s:int">   <s:annotation>     <s:documentation>Minumum Age, years</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/PaxType/@MaxAge

type	s:int
annotation	documentation Maximum Age, years
source	<s:attribute name="MaxAge" type="s:int">   <s:annotation>     <s:documentation>Maximum Age, years</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/PaxType/@Gender

type	restriction of s:string
facets	Kind  Value  Annotation enumeration  Male enumeration  Female
annotation	documentation Male, Female
source	<s:attribute name="Gender">   <s:annotation>     <s:documentation>Male, Female</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:string">       <s:enumeration value="Male"/>       <s:enumeration value="Female"/>     </s:restriction>   </s:simpleType> </s:attribute>

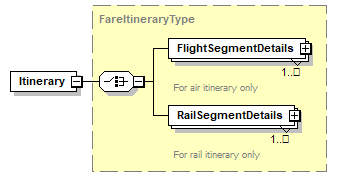

element FareType/Itinerary

diagram
type	FareItineraryType
properties	content  complex
children	FlightSegmentDetails RailSegmentDetails
source	<s:element name="Itinerary" type="FareItineraryType"/>

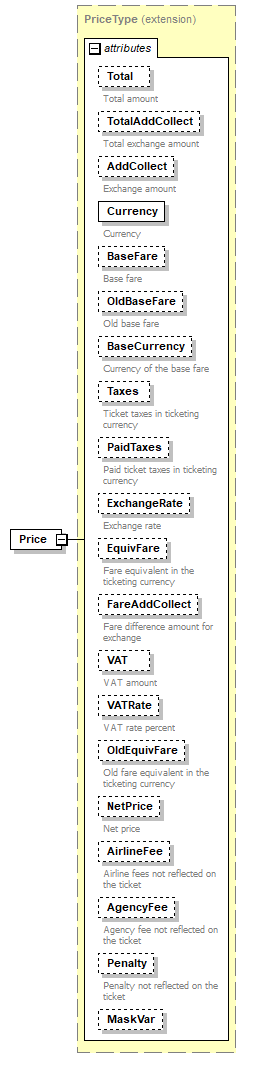

element FareType/Price

diagram
type	extension of PriceType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Total   s:decimal   optional         documentation Total amount TotalAddCollect   s:decimal   optional         documentation Total exchange amount AddCollect   s:decimal   optional         documentation Exchange amount Currency   s:string   required         documentation Currency BaseFare   s:decimal   optional         documentation Base fare OldBaseFare   s:decimal   optional         documentation Old base fare BaseCurrency   s:string   optional         documentation Currency of the base fare Taxes   s:decimal            documentation Ticket taxes in ticketing currency PaidTaxes   s:decimal            documentation Paid ticket taxes in ticketing currency ExchangeRate   s:string            documentation Exchange rate EquivFare   s:decimal            documentation Fare equivalent in the ticketing currency FareAddCollect   s:decimal   optional         documentation Fare difference amount for exchange VAT   derived by: s:decimal            documentation VAT amount VATRate   derived by: s:decimal            documentation VAT rate percent OldEquivFare   s:decimal            documentation Old fare equivalent in the ticketing currency NetPrice   s:decimal            documentation Net price AirlineFee   s:decimal            documentation Airline fees not reflected on the ticket AgencyFee   s:decimal            documentation Agency fee not reflected on the ticket Penalty   s:decimal            documentation Penalty not reflected on the ticket MaskVar   s:decimal
source	<s:element name="Price">   <s:complexType>     <s:complexContent>       <s:extension base="PriceType"/>     </s:complexContent>   </s:complexType> </s:element>

element FareType/Taxes

diagram
type	TaxesType
properties	minOcc  0 maxOcc  1 content  complex
children	Tax
annotation	documentation Ticket taxes
source	<s:element name="Taxes" type="TaxesType" minOccurs="0">   <s:annotation>     <s:documentation>Ticket taxes</s:documentation>   </s:annotation> </s:element>

element FareType/NetData

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Optional net data
source	<s:element name="NetData" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>Optional net data</s:documentation>   </s:annotation> </s:element>

element FareType/FareCalc

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Fare calculation
source	<s:element name="FareCalc" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>Fare calculation</s:documentation>   </s:annotation> </s:element>

element FareType/TourCode

diagram
type	s:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Tour code
source	<s:element name="TourCode" type="s:string" minOccurs="0">   <s:annotation>     <s:documentation>Tour code</s:documentation>   </s:annotation> </s:element>

element FareType/Rules

diagram
type	RulesType
properties	content  complex
children	RuleKey
annotation	documentation Fare Rules
source	<s:element name="Rules" type="RulesType">   <s:annotation>     <s:documentation>Fare Rules</s:documentation>   </s:annotation> </s:element>

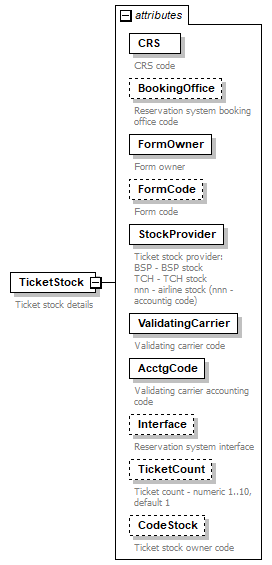

element FareType/TicketStock

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CRS   CRSType   required         documentation CRS code BookingOffice   s:string   optional         documentation Reservation system booking office code FormOwner   s:string   required         documentation Form owner FormCode   s:string            documentation Form code StockProvider   s:string   required         documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code) ValidatingCarrier   s:string   required         documentation Validating carrier code AcctgCode   s:string   required         documentation Validating carrier accounting code Interface   s:string   optional         documentation Reservation system interface TicketCount   derived by: s:int   optional         documentation Ticket count - numeric 1..10, default 1 CodeStock   s:string   optional         documentation Ticket stock owner code
annotation	documentation Ticket stock details
source	<s:element name="TicketStock">   <s:annotation>     <s:documentation>Ticket stock details</s:documentation>   </s:annotation>   <s:complexType>     <s:attribute name="CRS" type="CRSType" use="required">       <s:annotation>         <s:documentation>CRS code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="BookingOffice" type="s:string" use="optional">       <s:annotation>         <s:documentation>Reservation system booking office code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="FormOwner" type="s:string" use="required">       <s:annotation>         <s:documentation>Form owner</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="FormCode" type="s:string">       <s:annotation>         <s:documentation>Form code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="StockProvider" type="s:string" use="required">       <s:annotation>         <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="ValidatingCarrier" type="s:string" use="required">       <s:annotation>         <s:documentation>Validating carrier code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="AcctgCode" type="s:string" use="required">       <s:annotation>         <s:documentation>Validating carrier accounting code</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="Interface" type="s:string" use="optional">       <s:annotation>         <s:documentation>Reservation system interface</s:documentation>       </s:annotation>     </s:attribute>     <s:attribute name="TicketCount" use="optional">       <s:annotation>         <s:documentation>Ticket count - numeric 1..10, default 1</s:documentation>       </s:annotation>       <s:simpleType>         <s:restriction base="s:int">           <s:minInclusive value="1"/>           <s:maxInclusive value="10"/>         </s:restriction>       </s:simpleType>     </s:attribute>     <s:attribute name="CodeStock" type="s:string" use="optional">       <s:annotation>         <s:documentation>Ticket stock owner code</s:documentation>       </s:annotation>     </s:attribute>   </s:complexType> </s:element>

attribute FareType/TicketStock/@CRS

type	CRSType
properties	use  required
facets	Kind  Value  Annotation enumeration  1A documentation Amadeus enumeration  1G documentation Galileo enumeration  1H documentation Sirena2000 enumeration  1M documentation TAIS CRS enumeration  1N enumeration  1S documentation Sabre enumeration  S7 documentation SITA S7 enumeration  DP documentation Navitaire for DP enumeration  1Б documentation Charter gate enumeration  1Ц documentation Aviacenter charter gate enumeration  R3 documentation SITA R3 enumeration  A4 documentation TAIS CRS for A4 enumeration  XS documentation SITA CRS enumeration  NDC documentation NDC based CRS enumeration  MV documentation GRS-MixVel
annotation	documentation CRS code
source	<s:attribute name="CRS" type="CRSType" use="required">   <s:annotation>     <s:documentation>CRS code</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@BookingOffice

type	s:string
properties	use  optional
annotation	documentation Reservation system booking office code
source	<s:attribute name="BookingOffice" type="s:string" use="optional">   <s:annotation>     <s:documentation>Reservation system booking office code</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@FormOwner

type	s:string
properties	use  required
annotation	documentation Form owner
source	<s:attribute name="FormOwner" type="s:string" use="required">   <s:annotation>     <s:documentation>Form owner</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@FormCode

type	s:string
annotation	documentation Form code
source	<s:attribute name="FormCode" type="s:string">   <s:annotation>     <s:documentation>Form code</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@StockProvider

type	s:string
properties	use  required
annotation	documentation Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)
source	<s:attribute name="StockProvider" type="s:string" use="required">   <s:annotation>     <s:documentation>Ticket stock provider: BSP - BSP stock TCH - TCH stock nnn - airline stock (nnn - accountig code)</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@ValidatingCarrier

type	s:string
properties	use  required
annotation	documentation Validating carrier code
source	<s:attribute name="ValidatingCarrier" type="s:string" use="required">   <s:annotation>     <s:documentation>Validating carrier code</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@AcctgCode

type	s:string
properties	use  required
annotation	documentation Validating carrier accounting code
source	<s:attribute name="AcctgCode" type="s:string" use="required">   <s:annotation>     <s:documentation>Validating carrier accounting code</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@Interface

type	s:string
properties	use  optional
annotation	documentation Reservation system interface
source	<s:attribute name="Interface" type="s:string" use="optional">   <s:annotation>     <s:documentation>Reservation system interface</s:documentation>   </s:annotation> </s:attribute>

attribute FareType/TicketStock/@TicketCount

type	restriction of s:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  10
annotation	documentation Ticket count - numeric 1..10, default 1
source	<s:attribute name="TicketCount" use="optional">   <s:annotation>     <s:documentation>Ticket count - numeric 1..10, default 1</s:documentation>   </s:annotation>   <s:simpleType>     <s:restriction base="s:int">       <s:minInclusive value="1"/>       <s:maxInclusive value="10"/>     </s:restriction>   </s:simpleType> </s:attribute>

attribute FareType/TicketStock/@CodeStock

type	s:string
properties	use  optional
annotation	documentation Ticket stock owner code
source	<s:attribute name="CodeStock" type="s:string" use="optional">   <s:annotation>     <s:documentation>Ticket stock owner code</s:documentation>   </s:annotation> </s:attribute>
